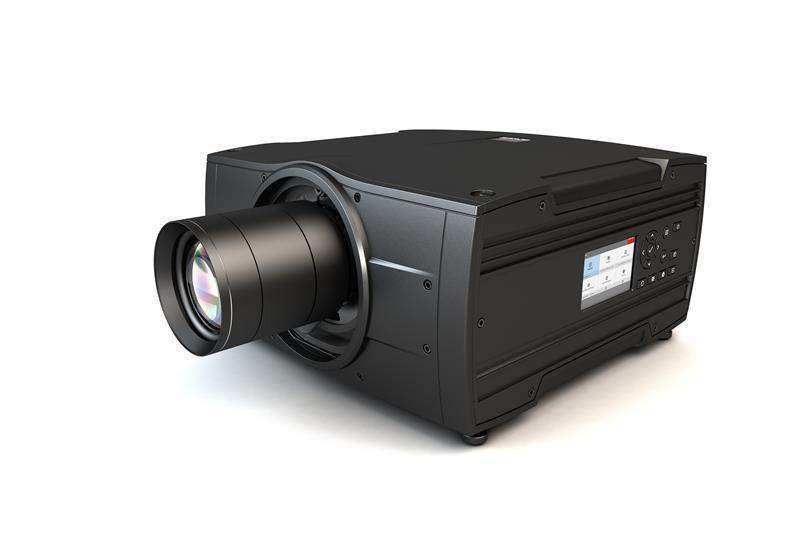

Barco FL40-4K MKII; Brightness: 2,700; Resolution: 4K/ WQXGA; Illumination: RGB LED

Barco SKU: R9009661
No reviews

Sale price$30,800.00


The Barco FL40-4K MKII is a top-of-the-line projector from Barco, equipped with LED illumination technology and Barco Pulse electronics performance. It is a true solid-state simulation-ready projector that offers exceptional visual quality and reliability at a low cost. With its dual iris and optical filters, the FL40 delivers outstanding contrast and deep black levels, resulting in unparalleled image clarity. This projector is designed to meet the needs of the most challenging simulation environments, providing a trustworthy visual experience.

Extreme reliability in all situations

The FL40 projector uses advanced LED illumination to produce vivid and clear images with accurate color representation. With its native WQXGA resolution, the FL40-4K can display images up to 4K resolution (3840 x 2400) using the powerful Barco Pulse technology. The SSP® technology in Barco Pulse enables the FL40 to achieve high-resolution images at faster frame rates, with reduced latency compared to other projectors. Additionally, the FL40 benefits from built-in warp and blend capabilities, making it a top-notch option for high-quality image display.

The Barco FL40 is a true solid-state projector designed for motion platforms with no moving parts. It is rock solid designed for shock and vibration. Its solid magnesium alloy baseplate act as mounting plate. Coupled with an array of mounting points in the front and on the top cabinet, they make this projector solid as rock and perfectly suited for use on motion platforms in any orientation.

Lowest TCO

The FL40 uses a proven DLP® sealed optical engine and the latest solid-state LED illumination. Simulator operators can benefit from reduced Total Cost of Ownership (TCO) with extended maintenance cycles and no lamp changes or color adjustments for up to 50,000hrs. Barco Constant Light Output (CLO) functionality ensures predictability in linear brightness performance over the life of the projector. Additional protection is available when using new intelligent high-efficiency air filters for installations in dusty and harsh environments.

Rock-solid and powerful 4K LED projector

  • Extreme detail up to 4K (3840 x 2400) resolution
  • True solid-state and ruggedized
  • Brighter LEDs with exceptional color fidelity
  • 100-0% LED dimming for training at any time
  • Barco Pulse software ensures powerful processing and lowest latency
  • Also available: FS40-4K MKII with dedicated IR LED for NVG training
Brightness 2,870 Typical ANSI Lumens
Contrast ratio 1800-6000:1
IR for NVG no
Brightness uniformity 90%
Aspect ratio 16:10
Projector type 1DLP RGB LED
Resolution 3,840 x 2,400 (4K) / 2,560 x 1,600 (native)
Lens type FLD+/FLDX
Optical lens shift Vertical up to 146%, depending on lens
Horizontal up to 70%, depending on lens
Motorized zoom and focus (+ lens memory FLDX lenses)
Motorized lens shift (with position memory on all lenses)
Color correction P7 RealColorTM
CLO (constant light output) Yes
Light source RGB LED
Light source lifetime Up to 50,000 hours
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs 2x DP1.2
2x dual link DVI-I
HDBaseT upgradable
HDMI 2.0 (HDCP2.2, HDR10)
RJ 45 Ethernet
RS232 in
2x USB
12v out
Input resolutions Including and up to:
3,840 x 2,400 @ 60Hz
3,840 x 2,160 @ 60Hz
4,096 x 2,160 @ 60Hz
2,560 x 1,600 @ 120Hz
Input color depth DVI: Including and up to 2560x1600@60Hz 8 bit RGB and 3840x2400@50Hz 8 bit RGB
DisplayPort: Including and up to 2560x1600@120Hz 12 bit RGB and 3840x2400@60Hz 8 bit RGB
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection IR, RS232, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 500 W typical, 570 W maximum
BTU per hour 1,707 BTU/h typical, 1,945 BTU/h max
Noise level (typical at 25°C/77°F) 33 dB(A)
Operating temperature 10 - 40 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 - 80% RH
Storage humidity 10 - 90% RH
Dimensions (WxLxH) 450 x 457 x 244 mm / 17,7 x 18,0 x 9,6 in
Weight 21,5 kg / 47,4 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A and cNus
Warranty Limited 5 years parts and labor, extendable
