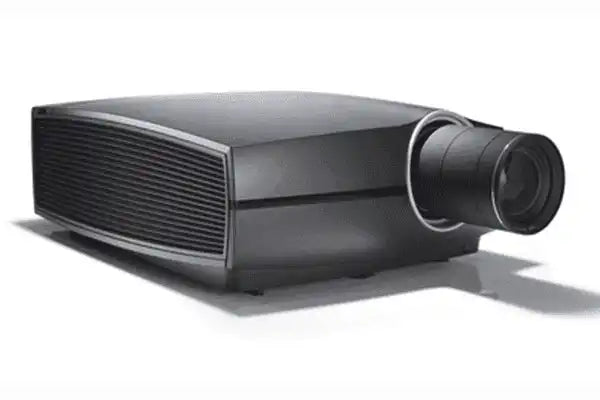

Barco F80-4K9 9000-Lumen 4K UHD DLP Laser Projector (Body only) - R90059511

Barco SKU: R90059511
No reviews
Price:
$23,300.00 $23,700.00

Description

Spec Sheet

The Barco F80-4K9 projector is a high-quality 3D device that is designed for professional use in various settings. It can operate 24/7 and has a brightness of up to 9000 lumens, making it perfect for museums, board rooms, and auditoriums. With a native resolution of 2560 x 1600 (WQXGA) and interchangeable lenses, it offers flexible throw distances and zoom ranges. The projector also features multiple video inputs, including HDMI, DVI, DisplayPort, and HDBaseT, providing users with a variety of connection options to choose from.

The Barco F80 projectors offer outstanding image quality and use a laser phosphor light source, which can help you create memorable experiences while saving time and money. These projectors are designed for permanent installation in various locations, including museums, board rooms, and auditoriums. Furthermore, they're capable of producing 3D visuals, making them ideal for theme park dark rides and interactive displays.

Superior image quality

The F80-4K9 projector produces excellent visuals with 4K UHD resolution, vivid colors, and precise color reproduction. It also has Barco Pulse processing, which enhances image sharpness and reduces latency through its Single Step Processing (SSP) technology.

Unprecedented business value

With this projector you can increase your uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides a long operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

The F80-4K9 gives you more flexibility in projector location and orientation as it can run in any orientation. Thanks to its wide array of all-glass lenses and wide lens shift ranges, the F80-4K9 accommodates almost any projector configuration.



 



  • Native WQXGA (2560 x 1600) resolution for sharp images with vivid colors
  • Barco Pulse processing that allows for sharper images and less latency thanks to its SSP (Single Step Processing)
  • Through its laser-phosphor light source and advanced cooling design, it provides a long operating time without need for lamp changes
  • Thanks to its wide array of all-glass lenses and wide lens shift ranges, the F80-4K9 accommodates almost any projector configuration
  • Input resolutions 4096 x 2400 maximum
  • Output resolutions 3840 x 2400 (16:10) and 3840 x 2160 (16:9)
  • Optical Lens Shift: Motorized zoom, focus, vertical and horizontal shift
Projector type Single chip DLP laser phosphor projector
Resolution 3,840 x 2,400 (4K UHD) / 2,716 x 1,600 (WQXGA+ native)
Brightness

9,000 center lumen*

8,500 ANSI lumen

9,600 ISO lumen
Contrast ratio 1,200:1 sequential, 10,000:1 dynamic*
Brightness uniformity > 90%
Aspect ratio 16:10
Lens type GLD/FLDX/FLD+(lens adapter needed)
Optical lens shift Vertical up to 125%, depending on lens
Horizontal up to 50%, depending on lens
Motorized zoom and focus (with lens memory on GLD and FLDX lenses)
Motorized lens shift (with position memory on all lenses)
Color space Rec. 709
Color correction P7 RealColor™
CLO (constant light output) Yes
Light source Laser phosphor
Light source lifetime > 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D / Passive stereo compatible
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs

12G-SDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI2.0 (HDCP2.2, HDR10), RJ 45 Ethernet, DMX in/out, RS232 in, 2x USB, 12V out
Input resolutions

Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz

refresh rates:

24Hz to 120Hz for WQXGA+ (2716x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
Software tools Projector Toolset
Control IR, RS232, RJ45, XLR wired
Network connection 10/100 Ethernet, RJ45
Power requirements 100-240V / 50-60Hz
24/7 operation Yes**
Power consumption 950 W nominal, 1100 W maximum
BTU per hour 3,250 BTU/h nominal, 3,800 BTU/h maximum
Standby power <0.5W
Noise level (typical at 25°C/77°F) 35 dB(A)
Operating temperature 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95°F) (up to 3000m altitude)
Storage temperature -20 to 60 °C
Operating humidity 20-80% RH (non-condensed)
Storage humidity 20-90% RH (non-condensed)
Dimensions (WxLxH) 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in
Weight 25.5 kg / 56.2 lbs
Standard accessories Power cord, wireless remote control
Certifications CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO
Warranty Limited 3 years on parts and labor(***)
Extendable up to 5 years.
