Barco PDS-4K Audio and DisplayPort 1.2 input card - R9802040

Product Overview

The Barco R9802040 Audio and DisplayPort 1.2 input card adds audio handling and two DisplayPort 1.2 inputs to the Barco PDS-4K presentation switcher. It lets the PDS-4K pass embedded audio from HDMI, DisplayPort, and SDI inputs through to Program outputs and to embed or de-embed audio over a Dante network. The card is a factory option for the PDS-4K and PDS-4K SDI switchers and is supplied as genuine Barco article number R9802040. SDI input and output handling is supported in a future software release.

Product Description

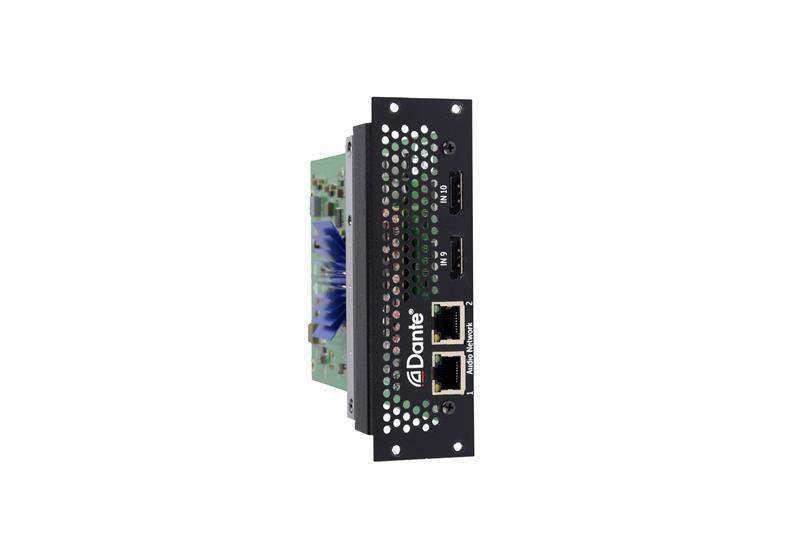

As shown in the product image, the R9802040 card installs into the PDS-4K and brings two functions to the switcher: video input and networked audio. On the video side it adds two DisplayPort 1.2 input connectors supporting 3840x2400p@60 at 10-bit color depth and 4:4:4 sampling, with HDCP 1.x and a signal capacity of 660 MHz. On the audio side it provides two RJ-45 Dante ports with 64 input x 64 output Dante channels, AES67 support, 48 kHz sample rate, 16- or 24-bit PCM audio, and two channels per input or output. Audio routing is flexible: outputs can be selected between a specific input, Dante audio, or audio-follows-video, with program audio returned to Dante and all inputs transmitted to Dante. This makes the card central to integrating the PDS-4K into a networked audio environment alongside its video switching. Integrators building a PDS-4K system can pair it with other Barco processing gear in our Barco collection. Contact Creation Networks for help confirming the right input configuration for an existing PDS-4K.

Key Features

• Two DisplayPort 1.2 inputs — Adds 2x DisplayPort 1.2 input connectors to the PDS-4K.
• 4K input support — Handles 3840x2400p@60 at 10-bit color depth and 4:4:4 sampling.
• Dante network audio — Two RJ-45 Dante ports with 64x64 channels and AES67 support.
• Embedded audio pass-through — Passes embedded audio from HDMI, DisplayPort, and SDI inputs to Program outputs.
• Flexible audio routing — Outputs selectable between a specific input, Dante audio, or audio-follows-video.
• PCM audio — 48 kHz sample rate, 16- or 24-bit depth, two channels per input or output.
• PDS-4K option — A factory option for the PDS-4K and PDS-4K SDI presentation switchers.
• Genuine Barco part — Supplied as Barco article number R9802040.

Typical Applications

• Live events and concerts — Routes networked Dante audio with 4K video through the PDS-4K for stage productions.
• Rental and staging — Adds DisplayPort sources and embedded audio handling to PDS-4K switchers on the road.
• Broadcast and studios — Integrates the switcher into AES67/Dante audio infrastructure.
• Corporate and AV integration — Manages presentation audio and DisplayPort sources in auditoriums and conference venues.

Technical Specifications

Frequently Asked Questions

What does this card add to the PDS-4K? Two DisplayPort 1.2 inputs plus the ability to pass embedded audio to Program outputs and embed or de-embed audio over a Dante network.

What resolution do the DisplayPort inputs support? Up to 3840x2400p@60 at 10-bit color depth and 4:4:4 sampling.

How many Dante channels does it provide? 64 inputs x 64 outputs, with two channels per input or output, and AES67 support.

Which switchers is it compatible with? The PDS-4K and PDS-4K SDI presentation switchers.

Is this a genuine Barco part? Yes. It is supplied as Barco article number R9802040.
