Barco R9401000-BT BME UDM W30 COMM+TOURING KIT (gen2); Body(FLEX)+GSM+WIFI+MTR Frame+FCase+Fiber Input+Camera+Distance Meter+Ext Shutter

Product Overview

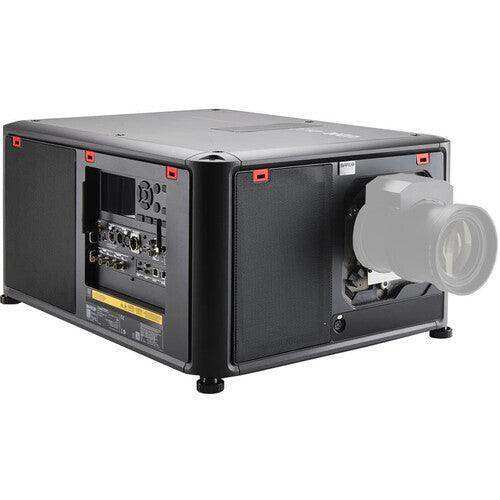

The Barco UDM-W30 COMM Touring Kit (R9401000-BT, gen2) is a complete rental and staging package built around the 30,000-lumen WUXGA 3-chip DLP laser projector. Designed for touring productions, live events, and large-venue installs, it bundles the FLEX-enabled projector body with GSM and Wi-Fi connectivity, a motorized rigging frame, flight case, fiber input, camera, distance meter, and external shutter. This turnkey configuration gives production teams everything needed to deploy, rig, and align the projector quickly on the road. The inorganic laser phosphor light source delivers a 20,000-hour rated lifetime with constant light output.

Product Description

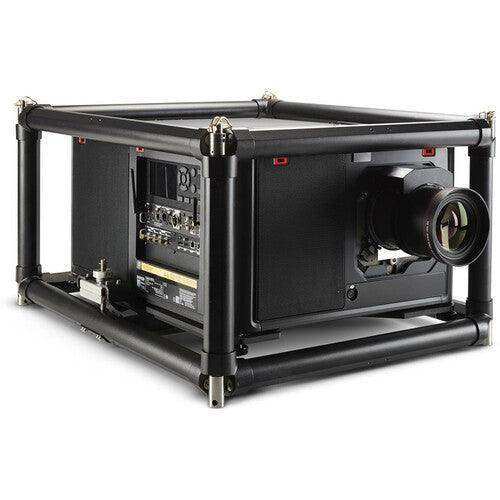

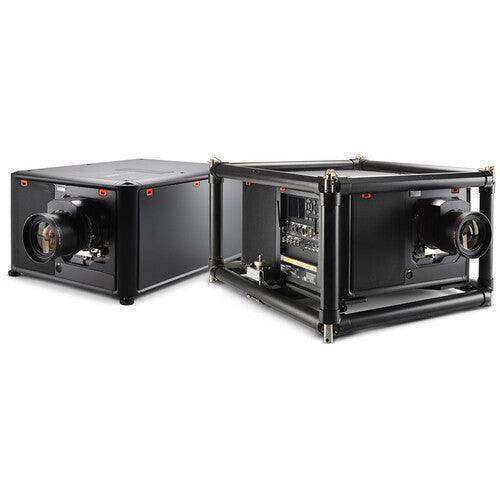

Built on the unified Barco Pulse electronics platform, the UDM-W30 uses Single Step Processing to handle warping, scaling, and 4K UHD source processing in a single pass for low latency and reduced dark time. The native WUXGA (1,920 x 1,200) 0.96-inch DMD imaging system accepts input resolutions from NTSC up to 4K (4,096 x 2,160). As shown in the product gallery, the touring kit adds a motorized frame and rugged flight case for repeated rig-and-strike cycles, plus a fiber input, alignment camera, distance meter, and external shutter for fast show setup. For fixed-install projects that do not need the touring hardware, compare the lighter UDM-W30 body-only configuration. Browse the full range of Barco projection systems in our Barco collection.

Key Features

• Complete Touring Package — FLEX projector body plus motorized frame, flight case, fiber input, camera, distance meter, and external shutter for road-ready deployment.
• 30,000-Lumen Class Brightness — Rated at 29,000 center lumens, 27,000 ANSI lumens, and 31,000 ISO lumens for large screens in high ambient light.
• WUXGA 3-Chip DLP — Three 0.96-inch DMD chips at native 1,920 x 1,200 resolution deliver a wide color spectrum exceeding the Rec. 709 space.
• Laser Phosphor Light Source — Inorganic phosphor wheel with a 20,000-hour rated lifetime eliminates lamp replacement and image flicker.
• Barco Pulse Single Step Processing — Warping, scaling, and 4K UHD processing run in one step for low latency and razor-sharp images.
• GSM and Wi-Fi Connectivity — Integrated wireless and cellular connectivity feed the Barco Insights Management Suite for remote fleet monitoring.
• Widest Lens Shift — Vertical lens shift from -100% to +130% and horizontal up to +/-40%, with motorized zoom, focus, and position memory.
• ScenergiX Edge Blending — Horizontal and vertical edge blending with embedded warp and blend for multi-projector arrays.
• DynaBlack Contrast — Full-field 2200:1 native contrast with Barco DynaBlack raising dynamic contrast to 20,000:1.
• 360-Degree Orientation — Full rotational mounting with active and passive 3D support for flexible rigging.

Typical Applications

• Live events, rental, and staging productions
• Large auditoriums and arenas
• Broadcast and production studios
• House of worship main-screen projection
• Multi-purpose event and ballroom spaces

Technical Specifications

Frequently Asked Questions

Which lenses are compatible with the UDM-W30? The projector accepts the full Barco TLD+ lens range, including 0.37 fixed, 0.73:1, 1.2:1, 1.25-1.6:1, 1.5-2.0:1, 2.0-2.8:1, 2.8-4.5:1, 4.5-7.5:1, and 7.5-11.5:1 zoom options. A lens is not included in this kit; select it based on throw distance and screen width.

What is included in this touring kit? This configuration (R9401000-BT) includes the FLEX-enabled projector body, GSM and Wi-Fi modules, a motorized rigging frame, flight case, fiber input, camera, distance meter, and external shutter, plus a power cord and wireless/XLR wired remote.

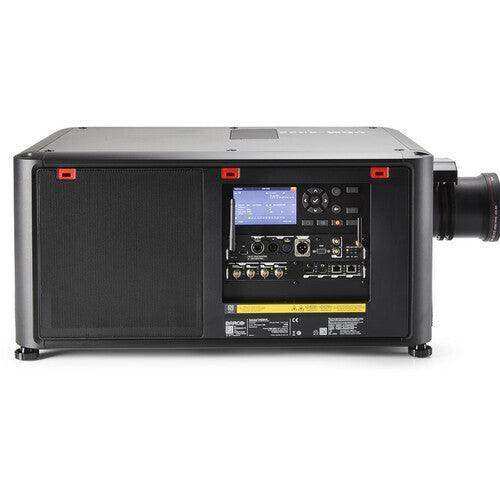

How does the UDM-W30 integrate into an AV system? It offers HDBaseT, HDMI 2.0, DisplayPort 1.2, SDI, and optional fiber inputs, RS232 and XLR/IR control, an integrated web server, Projector Toolset, and DMX 512 for show control.

Does it support edge blending for multi-projector setups? Yes. The UDM-W30 includes ScenergiX horizontal and vertical edge blending with embedded warp and blend for tiled and panoramic projection.

What are the power and cooling requirements? It runs on 200-240V at 13.5A (or 120-160V at reduced brightness) and dissipates up to 7,000 BTU/hr, with a typical noise level of 49 dB(A).

What warranty applies? Barco provides a standard 3-year warranty on the UDM-W30.
