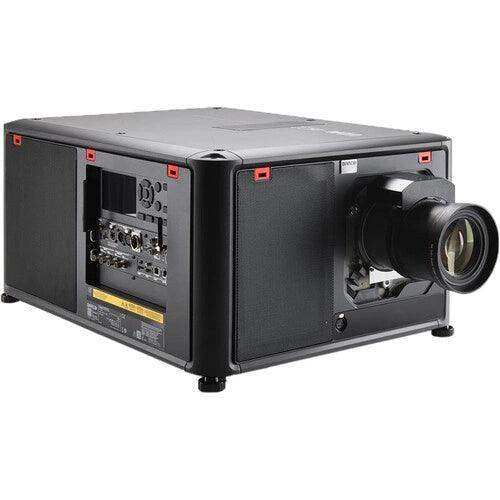

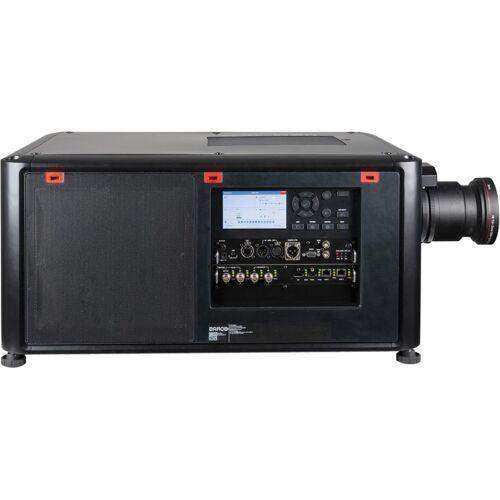

Barco R9409071-B UDM‑4K15 15,000 lumens, 4K UHD, 3-chip DLP Digital Large Venue Projector with GSM, WiFi, TLD+

Product Overview

The Barco UDM-4K15 large venue projector targets permanent installations and live events that need 4K detail and high brightness without the bulk of a 20K-class chassis — auditoriums, houses of worship, broadcast sets, and staging. This 15,000 lumen 3-chip DLP laser projector pairs 4K UHD resolution with a laser phosphor light source rated for 20,000 hours, so there are no lamp changes across its service life. It runs the same Barco Pulse electronics and Insights Management Suite as the flagship UDM, making it a connected, remotely managed projector for multi-site fleets. The modular design keeps installation and field service straightforward for integrators.

Product Description

The UDM-4K15 is a 4K UHD large venue projector built on three DMD chips with a native 2,560 × 1,600 panel and 4K UHD output, driven by a laser phosphor engine for up to 15,000 lumens. Barco’s Single Step Processing performs warping, scaling, and 4K UHD processing in one pass for low latency and reduced dark time — valuable for live camera feeds and edge-blended arrays using ScenergiX. The FLEX feature lets you tune and lock brightness or resolution per show, while the modular, filter-free DLP design supports fast field serviceability and 360° orientation. As a connected laser phosphor projector for permanent installation, it provides the Insights dashboard with remote log access and integrated 3G connectivity for fleet monitoring. It ships as a body only — Barco TLD+ lenses are selected separately to match throw distance, and the full TLD+ range is stocked on creationnetworks.net. Constant Light Output holds brightness and color steady across the projector’s life.

Key Features

• 3-chip DLP laser engine — Filter-free 3-chip DLP with laser phosphor illumination produces up to 15,000 lumens for large screens.
• 4K UHD resolution — Native 2,560 × 1,600 panel with 3,840 × 2,400 output keeps text and detail sharp at scale.
• Pulse Single Step Processing — Warp, scale, and 4K processing in one step for low latency and reduced dark time.
• FLEX brightness and resolution locking — Lock output per show for predictable, repeatable performance.
• 20,000-hour laser phosphor source — Lamp-free operation removes consumable cost, flicker, and lamp maintenance.
• ScenergiX edge blending — Horizontal and vertical blending with embedded warp for multi-projector arrays.
• Insights Management Suite — Cloud dashboard, remote log access, and integrated 3G connectivity for fleet monitoring.
• 360° orientation and modular design — Mount in any orientation with fast field serviceability.
• Constant Light Output (CLO) — Maintains consistent brightness and color across the projector’s lifetime.

Typical Applications

• Auditorium — 15,000 lumens fills large screens in lecture halls and performing-arts spaces.
• House of worship — 4K detail and edge blending suit wide sanctuary screens and IMAG.
• Broadcast studio — Low-latency Pulse processing supports live camera and virtual-set workflows.
• All-hands room — Drives town-hall-scale displays beyond the reach of standard installation projectors.
• Government space — Suited to briefing, command, and visualization rooms needing managed projection.
• Multi-purpose room — Flexible mounting and locking presets adapt to changing event configurations.

Technical Specifications

Frequently Asked Questions

Does the UDM-4K15 include a lens?

No. It ships as a body only. Select a Barco TLD+ lens by throw ratio to match your throw distance — the full TLD+ range is stocked on creationnetworks.net.

How does it integrate into an existing AV system?

The UDM Pulse platform provides HDBaseT, HDMI 2.0, DisplayPort 1.2, and Quad 3G/12G SDI inputs, with control over RS232, Ethernet/RJ-45, IR, and the integrated web server, so it fits standard control and signal-distribution architectures.

What are the installation requirements?

It supports 360° orientation for ceiling, truss, or floor-stack mounting and draws roughly 1,550 W in operation, which should be factored into power and HVAC planning.

How is the projector fleet managed and serviced?

The Barco Insights dashboard provides remote log access and brightness control over integrated 3G connectivity. The modular, filter-free design supports fast field serviceability.

What warranty and support does it carry?

The UDM-4K15 carries a 3-year Barco warranty, with optional Essential Care extensions available. Creation Networks supports configuration, lens selection, and post-sale technical questions — contact sales@creationnetworks.net.
