AVPro Edge Weatherproof MXNet Decoder--Not Comptible with V1 Systems

Product Overview

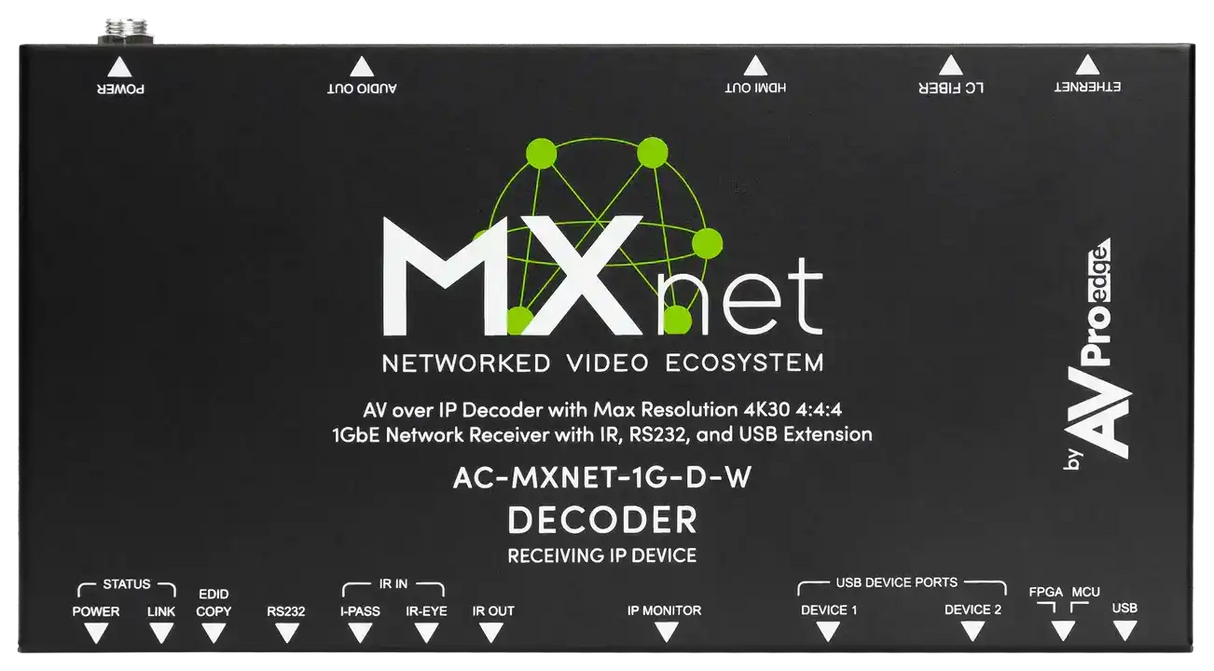

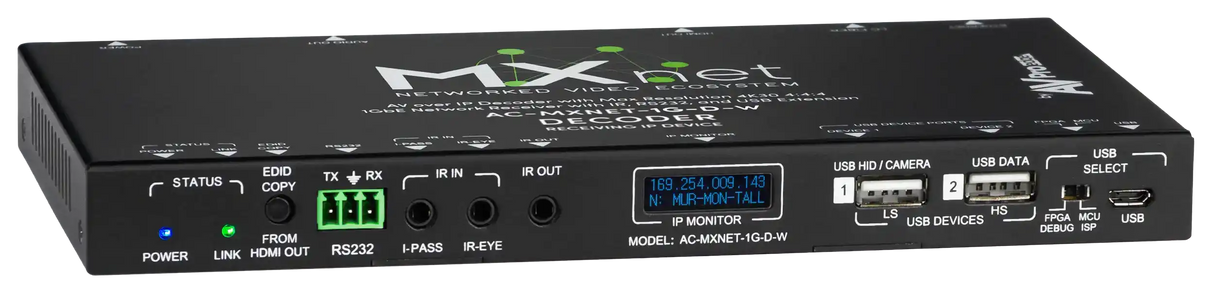

The AVPro Edge Weatherproof MXNet Decoder (AC-MXNET-1G-DV2-W) is an outdoor-rated AV-over-IP endpoint built for MXNet V2 systems operating in exposed or environmentally demanding locations. Rated for outdoor use with protection against dust, moisture, and extended temperature ranges, this decoder brings 4K UHD networked video to locations where a standard indoor decoder would not survive — including covered outdoor areas, building exteriors, industrial facilities, and open-air event venues. This is the correct outdoor MXNet decoder for V2 AV-over-IP systems requiring weatherproof video distribution. Compatibility note: this decoder is not compatible with MXNet V1 systems and will not operate on V1 infrastructure.

Product Description

The AC-MXNET-1G-DV2-W connects to a 1G MXNet V2 network and decodes video streams from any compatible MXNet EV2 encoder, delivering HDMI output to an outdoor-rated display, LED wall, kiosk screen, or digital signage panel. The weatherproof enclosure is engineered to IP65 or equivalent protection, sealing the electronics against water ingress, dust infiltration, and the mechanical stress of outdoor installation.

Operating across a wide temperature range from -20°C to 50°C, the decoder handles the thermal extremes encountered in outdoor deployments through hot summers and cold winters without requiring environmental conditioning. The HDMI 2.0 output supports resolutions up to 4K UHD at 60Hz, and multi-channel uncompressed audio is supported for outdoor PA or zone speaker applications.

The decoder is managed through the same MXNet V2 management software used for all other EV2 system endpoints, requiring no separate outdoor-specific management tools. It can be wall-mounted or rack-mounted in a weatherproof enclosure and receives power and network connectivity over standard Ethernet, simplifying outdoor cable runs. The V1 incompatibility is not a limitation of function but a deliberate architectural boundary — V2 systems deliver meaningfully improved performance and this unit is optimized for that platform.

Key Features

• Weatherproof / Outdoor-Rated Enclosure — IP65 or equivalent protection against dust, water jets, and environmental moisture — designed for permanent outdoor or semi-exposed installation.
• MXNet V2 AV-over-IP Platform — Fully integrated with MXNet EV2 system management; receives streams from any EV2 encoder on the network.
• 4K UHD 60Hz HDMI Output — Delivers full 4K resolution to outdoor-rated displays, LED walls, and digital signage panels.
• Wide Operating Temperature Range — Rated -20°C to 50°C, suitable for year-round outdoor operation in most climates without climate control.
• 1G Network Interface — Connects to standard 1-gigabit Ethernet infrastructure; no 10G switch required.
• Multi-Channel Uncompressed Audio — Supports multi-channel audio output for outdoor PA, zone speaker, or distributed audio applications.
• Wall or Rack-Mountable — Flexible mounting options for outdoor enclosures, equipment cabinets, or direct wall attachment near the display.
• Centralized MXNet Management — Configured and routed through standard MXNet V2 management software alongside all other system endpoints, no separate outdoor management tools needed.
• V2-Only Architecture — Not compatible with MXNet V1 — ensures full utilization of EV2 platform improvements including management, performance, and feature updates.

Typical Applications

• Outdoor digital signage on building facades, campus walkways, sports facilities, and transportation hubs where the decoder must be mounted near the display in an exposed location
• Covered outdoor areas such as stadium concourses, amphitheater lobbies, and covered parking structures where partial weather exposure requires sealed electronics
• Retail and hospitality outdoor zones including restaurant patios, hotel pool decks, and outdoor retail areas running MXNet V2 AV-over-IP distribution
• Industrial and manufacturing facilities where dust, moisture, and temperature extremes rule out standard indoor AV equipment
• Theme parks, outdoor event venues, and sports complexes requiring permanent 4K video endpoints in exposed equipment locations

Technical Specifications

Frequently Asked Questions

Why is this decoder not compatible with MXNet V1?

The MXNet Evolution II (EV2) platform introduced fundamental changes to the encoding, network protocol, and management architecture compared to V1. The AC-MXNET-1G-DV2-W is engineered specifically for V2 performance characteristics and management infrastructure. Mixing V1 and V2 components on the same system is not supported and will result in non-functional endpoints. Facilities with V1 systems must fully migrate to EV2 before deploying this decoder.

What is the IP65 weatherproof rating and what does it protect against?

IP65 is an Ingress Protection rating defined by IEC 60529. The first digit (6) indicates complete protection against dust ingress. The second digit (5) indicates protection against water projected from a nozzle in any direction. This makes the decoder suitable for outdoor installations, covered areas with rain exposure, and dusty industrial environments. It is not rated for submersion.

Can this decoder be used indoors?

Yes. The weatherproof enclosure does not restrict indoor use. In environments where humidity, dust, or occasional moisture exposure is a concern — such as kitchens, manufacturing floors, or loading docks — the sealed enclosure provides added protection compared to a standard indoor decoder.

What displays can this decoder connect to?

The decoder outputs via HDMI 2.0, which connects to any display with an HDMI input — including outdoor-rated commercial displays, standard commercial flat panels, LED video walls, and digital signage media players that accept HDMI input. The display itself must be separately rated for outdoor use if it will be exposed to weather.

Does the decoder support audio output for outdoor speakers?

The decoder supports multi-channel uncompressed audio output. Specific analog or digital audio output connector types should be confirmed in the AVPro Edge product datasheet. For distributed outdoor audio, the audio output would connect to an outdoor-rated amplifier or DSP, and from there to weatherproof loudspeakers.

What network switch is required for outdoor deployment?

The decoder connects via standard 1G Ethernet. For outdoor cable runs, outdoor-rated CAT6 or CAT6a cable with appropriate conduit or weatherproof jackets should be used. The network switch itself should be located in an equipment enclosure rated for its environment. The switch must support IGMP snooping for proper multicast AV-over-IP traffic management on the MXNet V2 network.
