AVPro Edge HDBaseT (CAT6) Extender Kit

Product Overview

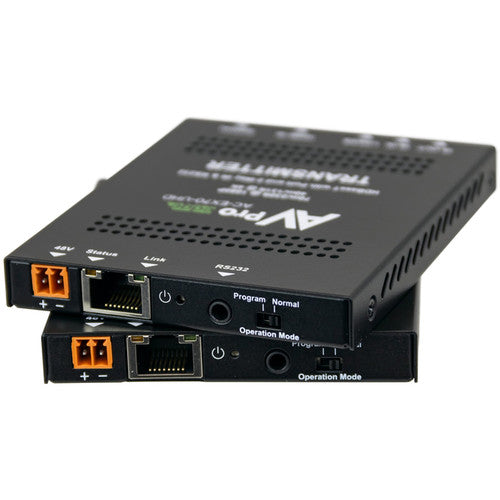

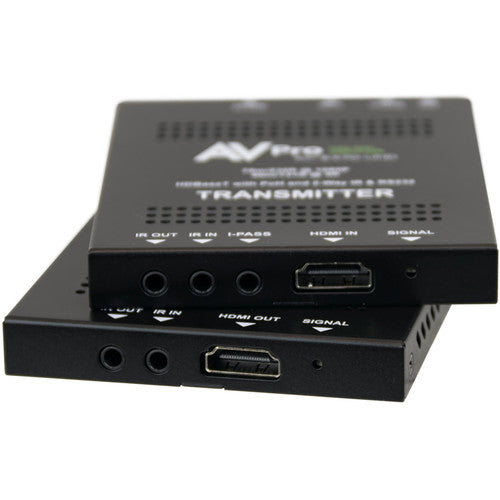

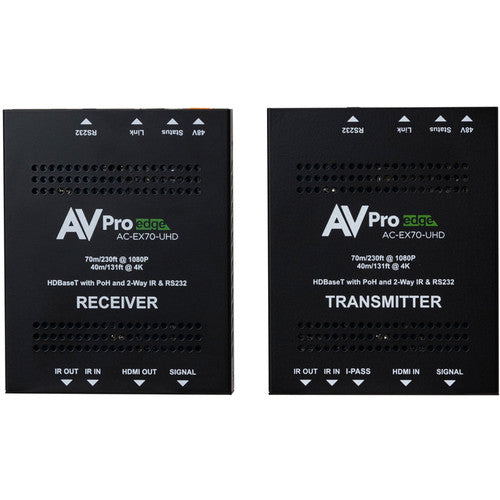

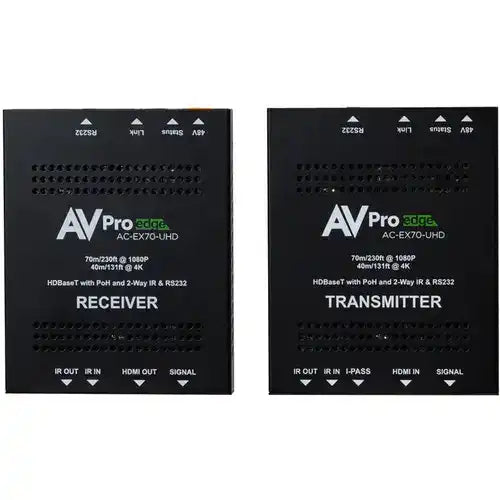

The AVPro Edge HDBaseT Cat6 Extender Kit is a professional-grade point-to-point extender set using ICT 18Gbps technology to carry 4K60 4:4:4 video with full HDR over a single Cat6 cable. At 40 meters the kit delivers 4K with HDR10, HLG, and Dolby Vision intact; at 70 meters it supports full HD signals. The kit includes both a transmitter and receiver unit, with I-Pass HDBaseT loop output, bi-directional power, RS232, and IR control pass-through integrated into the link. This extender is designed for commercial and residential AV installations where short-to-mid-range 4K HDR extension is needed without sacrificing signal fidelity.

Product Description

This ICT 18Gbps extender kit addresses a common limitation of standard HDBaseT: the 10.2Gbps bandwidth cap that prevents transmission of 4K60 4:4:4 or Dolby Vision. By using Inverse Channel Technology, this kit carries the full HDMI 2.0 signal through the HDBaseT layer, delivering color-accurate 4K content including HDR10, HLG, and Dolby Vision to the display with no compression artifacts. The 40-meter 4K range covers the large majority of commercial and residential installations where the source rack and display are in the same building zone. I-Pass provides an additional HDBaseT output at the transmitter for signal looping or distribution to a matrix chassis without a standalone splitter. Bi-directional power allows either unit to power the other over the Cat6 run, simplifying installation in locations without convenient power at both ends. RS232 and IR are embedded in the Cat6 link, providing control reach from the rack or control processor to the display without additional cabling.

Key Features

• ICT 18Gbps Technology — Transmits the full HDMI 2.0 signal over HDBaseT, supporting 4K60 4:4:4 with no compression or bandwidth downgrade.
• 40m 4K HDR / 70m HD Range — Covers most commercial and residential AV runs at full 4K quality, with HD extension to 70 meters.
• Full HDR Pass-Through — Passes HDR10, HLG, and Dolby Vision metadata without modification, preserving the display's tone mapping.
• I-Pass Loop Output — Loops the HDBaseT signal at the transmitter end to a second destination without an additional splitter.
• Bi-Directional Power — One power adapter at either end supplies both units over the Cat6 run.
• RS232 Pass-Through — Carries serial control data across the link for display or device integration.
• IR Pass-Through — Bi-directional IR control extends remote signals between source and display locations.
• Slim Form Factor — Low-profile housings fit behind displays and in tight rack or wall-mount locations.
• Dolby Atmos / DTS:X Audio — Lossless audio pass-through for immersive audio formats.

Typical Applications

• Conference rooms and boardboards with source racks up to 40 meters from the display wall
• Luxury residential media rooms requiring Dolby Vision and Atmos over structured Cat6 wiring
• Digital signage deployments where a media player feeds a display across a floor plan
• Education AV systems connecting teacher stations to ceiling-mounted projectors or remote displays
• TAA-compliant government and federal installations requiring domestic-sourced AV equipment

Technical Specifications

Frequently Asked Questions

How is this kit different from the 70m version?
This kit extends 4K HDR to 40 meters and HD to 70 meters. The 70m kit (AC-EX70-444-KIT) extends 4K HDR to 70 meters and HD to 100 meters, and also adds Ethernet pass-through. For runs under 40 meters at 4K, both kits perform identically — the 40m version is typically lower cost and suited to shorter infrastructure.

Does ICT require special cabling?
Cat6 is recommended for ICT 18Gbps performance. Cat5e may work at shorter distances but is not guaranteed for full 4K60 4:4:4 performance at the rated maximum range.

Can this kit be used with a TAA-compliant procurement?
The product images reference TAA compliance. Verify with your AVPro Edge distributor for current TAA certification status before submitting to a federal procurement.

Is Ethernet included in this kit?
Ethernet pass-through is not listed for this 40m kit. If LAN connectivity at the display end is required, consider the 70m kit (AC-EX70-444-KIT) which includes Ethernet pass-through.
