AVPro Edge Control Box for MXNET System

Product Overview

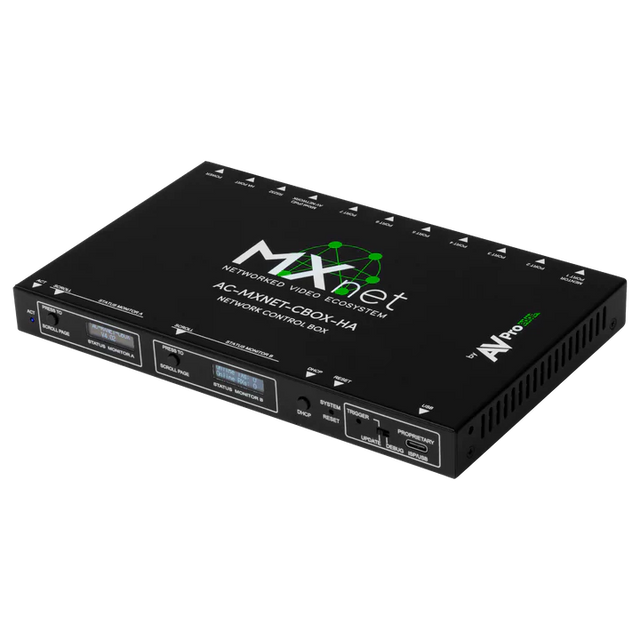

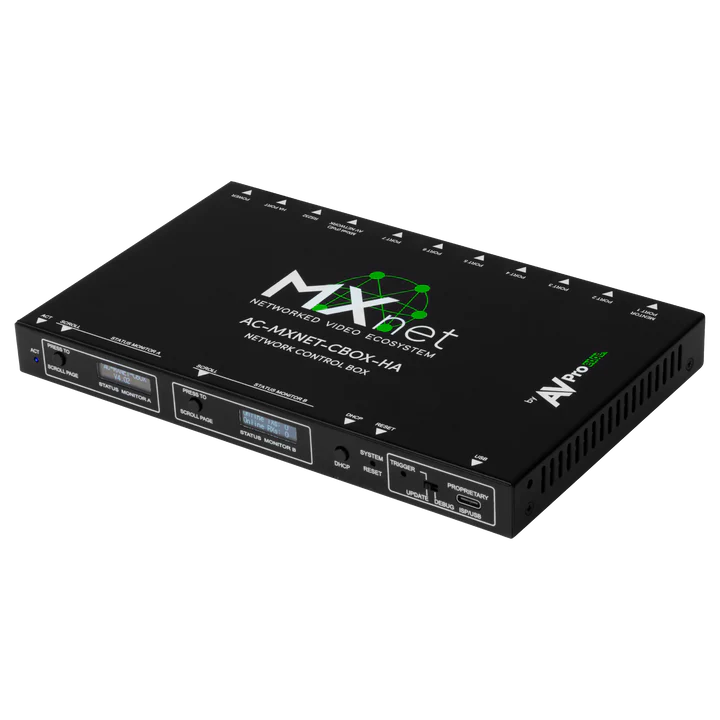

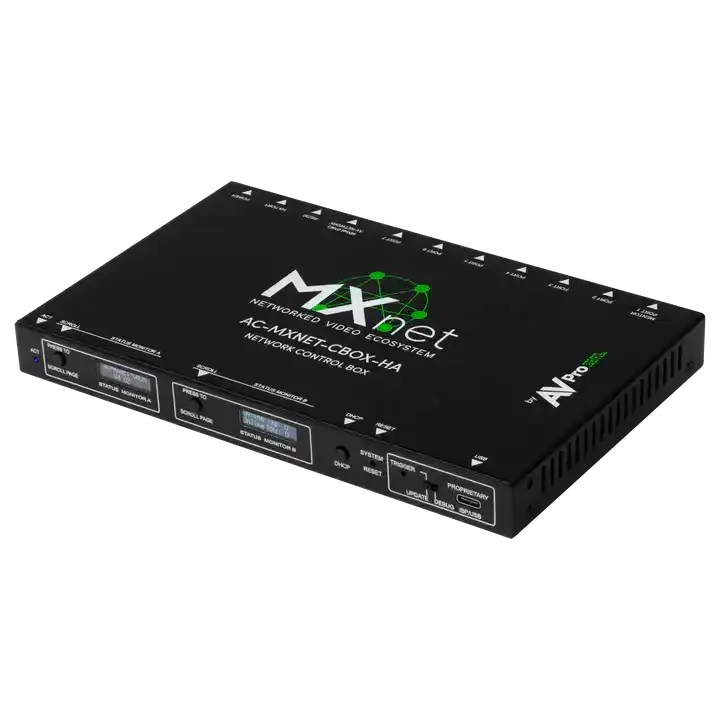

The AVPro Edge Control Box (AC-MXNET-CBOX) is the central management appliance for MXNet V1 AV-over-IP ecosystems, providing a single point of control for video routing, source selection, and system configuration across all MXNet endpoints. Rather than managing encoders and decoders individually, integrators can define and execute switching presets, monitor signal status, and apply system-wide settings from one dedicated hardware controller. The Control Box communicates with all MXNet nodes over the local network and is designed to be rack-mounted in head-end equipment rooms. It is the recommended management solution for any MXNet deployment of meaningful scale in commercial AV, higher education, and enterprise environments.

Product Description

The AC-MXNET-CBOX centralizes the administration of AVPro Edge MXNet AV-over-IP systems, removing the complexity of managing each encoder and decoder node independently. Installed in a standard rack alongside MXNet network switches, the Control Box communicates with every endpoint over your existing Gigabit Ethernet infrastructure. Integrators can define routing matrices, create switching presets, and configure EDID policies from a unified software interface accessed through the Control Box. The hardware provides front-panel controls for on-site adjustments as well as LAN-based management for remote administration, making it practical for both commissioning and day-to-day operation. The device operates at low latency to ensure switching commands are reflected across all connected displays without perceptible delay — a critical requirement for live events, broadcast facilities, and large-format control rooms. Because MXNet systems can scale to hundreds of endpoints, the Control Box also serves as the anchor for the MXNet Mentor software tool, which provides a graphical topology view and drag-and-drop routing interface.

Key Features

• Centralized management for all MXNet V1 encoders and decoders from a single device
• Rack-mountable form factor suits head-end equipment rooms and AV racks

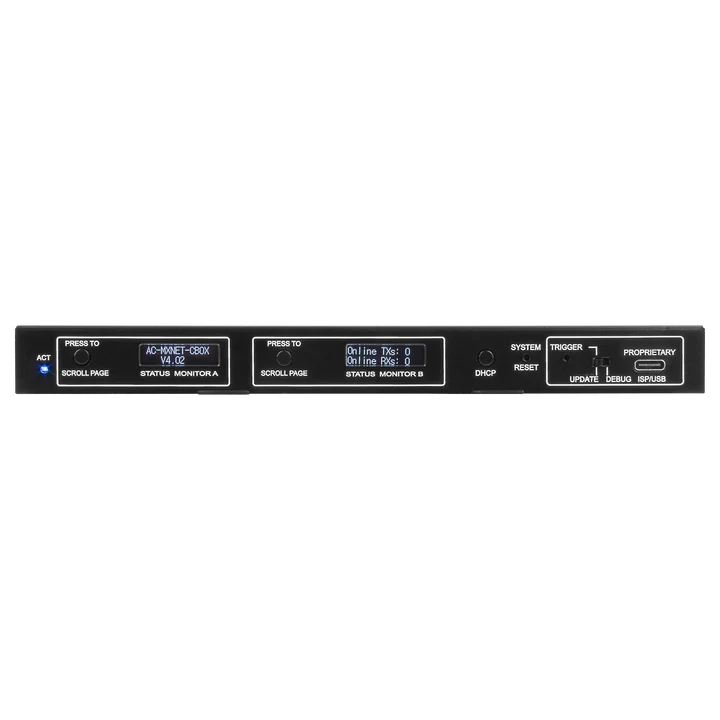

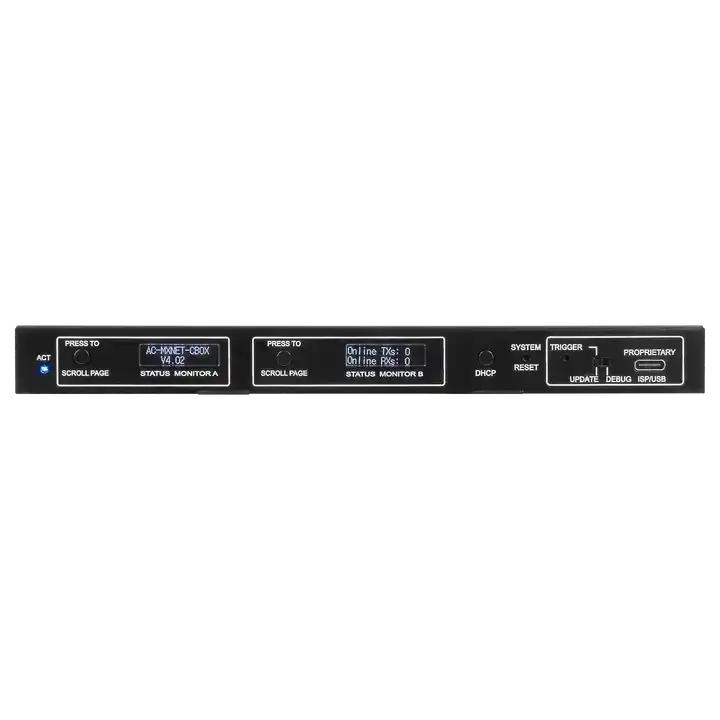

• Front-panel and LAN-based control options for both on-site and remote administration
• Compatible with the MXNet Mentor software tool for graphical topology and drag-and-drop routing
• Low-latency switching suitable for live events, broadcast, and mission-critical applications
• Supports routing presets for rapid source-to-display assignments across large deployments
• Enables system-wide EDID policy management from one interface
• Designed to scale with MXNet systems ranging from small installations to large multi-zone deployments

Typical Applications

• Corporate AV distribution systems with multiple conference rooms and common areas
• Higher education lecture halls and campus-wide AV distribution
• Broadcast and production facilities requiring deterministic low-latency switching
• Hospitality and sports venue digital signage networks
• Command and control rooms with multi-source, multi-display requirements
• High-end residential home automation systems integrating MXNet for whole-home video distribution

Technical Specifications

Frequently Asked Questions

Is the Control Box required for every MXNet installation?

The Control Box is strongly recommended for any deployment with multiple zones or switching requirements. It is the primary hardware interface for the MXNet Mentor software and provides front-panel control for on-site management.

Does the Control Box work with MXNet 10G products?

The AC-MXNET-CBOX is designed for the MXNet V1 (1G) ecosystem. For MXNet 10G deployments, confirm compatibility with AVPro Edge before ordering.

Can the system be controlled remotely?

Yes. The Control Box includes LAN-based management, allowing integrators and administrators to access routing controls and system settings from a networked computer without being physically present at the rack.

How many endpoints can the Control Box manage?

The Control Box is designed to scale with MXNet infrastructure. The practical limit depends on the network switch capacity and the number of MXNet encoder and decoder nodes deployed.
