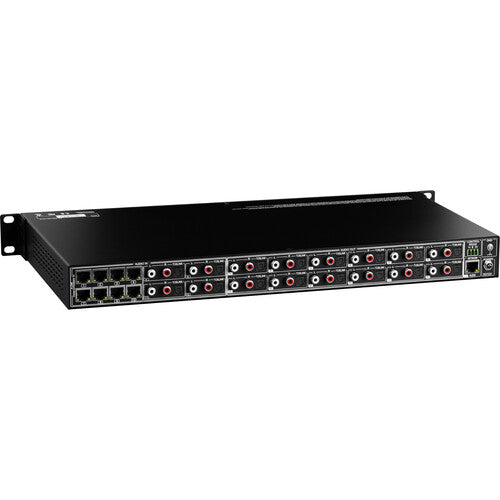

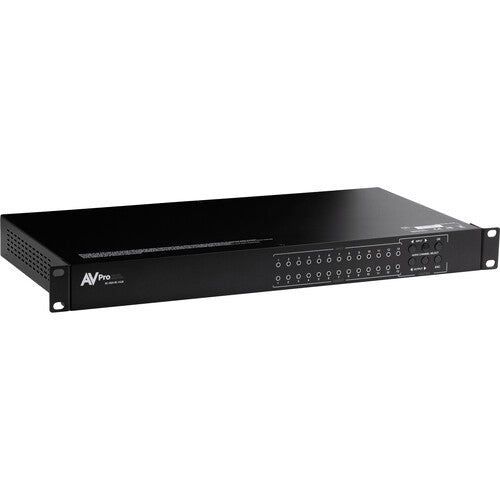

AVPro Edge Audio Receiver Hub with 8 AEX inputs and 4 Stereo Inputs with 12 Stereo Outputs

Product Overview

The AVPro Edge Audio Receiver Hub is a centralized audio distribution unit built for multi-zone commercial AV systems using the AVPro AEX (Audio Extension) ecosystem. It accepts 8 AEX digital inputs and 4 analog stereo inputs, then routes audio to 12 independent stereo outputs for simultaneous multi-zone distribution. Designed for rack installation in commercial facilities, hospitality venues, corporate campuses, and large residential properties, this hub eliminates the need for multiple discrete audio devices by consolidating routing at a single point. It integrates directly with AVPro Edge AEX-compatible extenders and matrices, making it the natural hub for audio in systems already using AVPro video infrastructure.

Product Description

The AEX input format carries digital audio from AVPro Edge-compatible extenders and transmitters, allowing audio to be received from multiple distributed AV sources across the installation without running separate analog audio cabling. The 4 additional stereo analog inputs accommodate local audio sources — such as cable boxes, streaming devices, or microphone preamps — that feed directly into the hub's routing matrix. All 12 stereo outputs provide analog audio, making it straightforward to drive in-ceiling speaker zones, zone amplifiers, or local audio mixers without additional conversion hardware.

The hub is rack-mountable and designed for permanent installation in commercial AV equipment rooms. Its high input count and output count make it particularly well suited for hotel lobbies, restaurant chains, sports bars, corporate office buildings, and any facility where audio from multiple AV sources must be distributed independently to multiple rooms or zones. Integration within the AVPro AEX ecosystem reduces system complexity by sharing the same signal infrastructure as video distribution.

Key Features

• 8 AEX Digital Inputs — receives audio from up to 8 AVPro AEX-compatible sources across the installation.
• 4 Stereo Analog Inputs — accommodates local analog audio sources alongside AEX digital feeds.
• 12 Stereo Analog Outputs — drives up to 12 independent audio zones simultaneously.
• AEX Ecosystem Integration — designed for direct use with AVPro Edge extenders, transmitters, and matrices that carry AEX audio.
• Rack-Mountable Form Factor — built for permanent installation in commercial AV equipment rooms and head-end racks.
• Multi-Zone Audio Distribution — enables independent audio routing to multiple rooms or zones from a single central device.
• Analog Output Compatibility — all 12 outputs are analog stereo, compatible with standard zone amplifiers and audio mixers.

Typical Applications

• Hotel and hospitality properties distributing audio from a central AV rack to guest areas and common spaces
• Corporate office buildings with multiple conference rooms and zones requiring independent audio feeds
• Restaurants, bars, and entertainment venues managing audio from multiple sources across multiple zones
• Sports facilities and fitness centers distributing audio from multiple broadcast and local sources
• Large residential installations using AVPro AEX infrastructure for whole-home audio distribution
• Houses of worship requiring audio distribution from a central point to multiple rooms or overflow areas

Technical Specifications

Frequently Asked Questions

What is the AEX input format?

AEX (Audio Extension) is AVPro Edge's proprietary digital audio transport used within their extender and matrix ecosystem. The 8 AEX inputs on this hub receive audio signals from AVPro AEX-compatible transmitters and extenders deployed across the installation.

Can this hub be used with non-AVPro audio sources?

Yes. The 4 stereo analog inputs accept standard analog audio from any source, independent of the AEX ecosystem. These inputs are useful for local sources that do not pass through AVPro extenders.

Are all 12 outputs active simultaneously?

Yes. All 12 stereo outputs can drive separate audio zones at the same time, making this unit suitable for large multi-zone audio distribution without additional routing hardware.

What type of connectors are used on the outputs?

The outputs are analog stereo. Refer to AVPro Edge's product documentation or contact Creation Networks for specific connector type confirmation for your installation planning.

Is this hub compatible with all AVPro Edge extender models that support AEX audio?

It is designed for the AVPro AEX audio ecosystem. Confirm specific extender compatibility with your AVPro product documentation or contact Creation Networks for a system design consultation.
