AVPro Edge 8K HDR 2x2 scaling video wall processor featuring VRR

Product Overview

The AVPro Edge 8K HDR 2x2 video wall processor (AC-FRESCO-4X) drives four displays in a 2x2 grid layout from a single HDMI 2.1 source, supporting resolutions up to 8K@60Hz and 4K@120Hz with Variable Refresh Rate (VRR). It is purpose-built for commercial video wall installations where image fidelity and motion clarity matter — including control rooms, digital signage arrays, broadcast facilities, and esports venues. Full HDR support across Dolby Vision, HDR10, and HLG ensures accurate color reproduction on professional panels. As a 2x2 scaling video wall processor with VRR and 8K HDR, it is one of the few units in this price range capable of handling next-generation HDMI 2.1 signals natively.

Product Description

The AC-FRESCO-4X accepts a single HDMI 2.1 input at up to 48 Gbps bandwidth and distributes it across four HDMI outputs arranged in a 2x2 video wall configuration. Each output is independently scaled and bezel-corrected so the combined image appears continuous across all four panels. VRR (Variable Refresh Rate) eliminates tearing artifacts in live event feeds and gaming content — useful for esports installations and broadcast monitoring walls.

HDCP 2.3 compliance covers protected content from streaming and Blu-ray sources. Advanced EDID management handles compatibility between source devices and display panels without manual intervention. The compact, rackmountable chassis fits standard 1U or half-rack installations and ships with power supply included.

Key Features

• 8K@60Hz and 4K@120Hz Input Support — handles next-generation HDMI 2.1 sources without downscaling at the input stage.
• Variable Refresh Rate (VRR) — eliminates screen tearing in live feeds, gaming, and dynamic content on all four output displays.
• HDMI 2.1 at 48 Gbps — full-bandwidth input ensures no signal quality loss between source and wall.
• 2x2 Video Wall Scaling — splits and scales a single source across four panels with independent bezel correction per output.
• Dolby Vision, HDR10, and HLG Support — passes through HDR metadata to compatible displays for accurate brightness and color reproduction.
• Advanced EDID Management — prevents handshake failures between sources and displays without requiring external EDID emulators.
• HDCP 2.3 Compliance — supports playback of premium protected content from streaming devices and Blu-ray players.

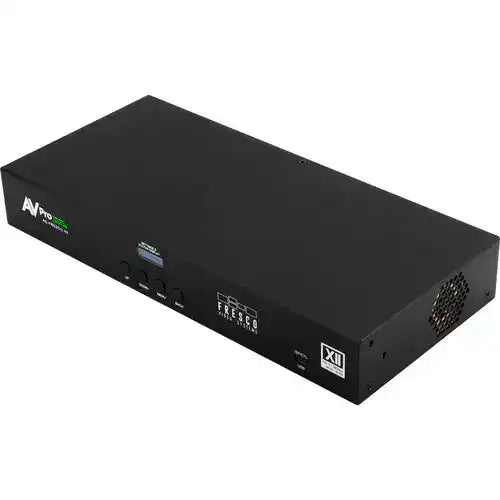

• Compact Rackmountable Chassis — designed for clean integration into AV equipment racks; includes power supply.

Typical Applications

• Control room display walls for operations centers and network operations centers (NOCs)
• Digital signage video walls in retail, hospitality lobbies, and transportation hubs
• Esports venues and gaming arenas requiring tear-free, high-refresh display walls
• Broadcast monitoring walls for live production and post-production facilities
• House of worship and stadium video walls showing live camera feeds
• Corporate boardrooms and executive briefing centers with multi-panel displays

Technical Specifications

Competitor Comparison

The table below compares the AVPro Edge AC-FRESCO-4X against the Datapath FX4 and Matrox Mura IPX 4K — two commonly specified 2x2 video wall controllers in commercial AV projects.

Frequently Asked Questions

Can the AC-FRESCO-4X accept an 8K source and display it across all four panels at full resolution?

Yes. The processor accepts 8K@60Hz input and distributes it across the 2x2 panel array. Each panel receives its designated quadrant of the image, allowing the full 8K frame to span all four displays.

Is VRR supported on all four outputs simultaneously?

VRR is applied to the input signal and carried through to each output. Display panels must also support VRR (such as HDMI 2.1-compatible panels) for the effect to be active at the screen level.

Does this processor work with existing 4K displays, or do I need 8K panels?

The processor works with standard 4K displays in a 2x2 arrangement. 8K input capability future-proofs the installation for when 8K sources become more common, but 4K panels are fully supported today.

What control interfaces are available for integration with a control system?

The AC-FRESCO-4X supports standard control interfaces for integration with third-party control systems. Refer to the product datasheet or contact AVPro Edge for specific RS-232, IP, or API control details.

Is the unit compatible with HDBaseT or AV-over-IP inputs, or only direct HDMI?

The AC-FRESCO-4X operates with direct HDMI 2.1 connections. For AV-over-IP sources, a compatible receiver outputting HDMI should be used upstream of this processor.

Does bezel correction require software, or is it configured on the unit itself?

Bezel correction and output scaling are configured directly on the processor. No external PC or software application is required for standard 2x2 configurations.
