AVPro Edge 8k HDMI Extender kit via multi mode fiber optics, sending signals up to 40Gbps

Product Overview

The AVPro Edge 8K HDMI Extender Kit transmits uncompressed HDMI 2.1 signals up to 40Gbps over multimode fiber optic cable, supporting 8K/60Hz and 4K/120Hz resolutions within a single building or campus. The kit includes both the transmitter (Tx) and receiver (Rx) units, providing a complete point-to-point extension solution out of the box. Unlike HDBaseT extenders that are limited to 18Gbps and Category cable, this product delivers the full HDMI 2.1 bandwidth necessary for 8K sources or high-frame-rate 4K content. It is designed for integrators who need maximum signal fidelity over fiber runs where copper alternatives would fall short.

Product Description

As 8K displays and 4K/120Hz gaming and broadcast sources become more common in high-end installations, the need for extenders that match HDMI 2.1's 40Gbps bandwidth requirement has grown significantly. The AVPro Edge AC-EXO-X-KIT addresses that requirement using multimode fiber — the same fiber type widely installed in commercial buildings and universities — rather than single-mode, making it practical for installations where existing fiber infrastructure can be reused. Multimode fiber carries optical signals over shorter distances than single-mode but is less expensive to terminate and is already present in most structured cabling plants built in the past two decades.

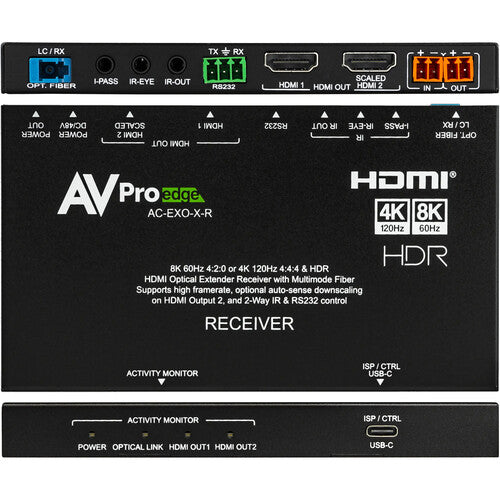

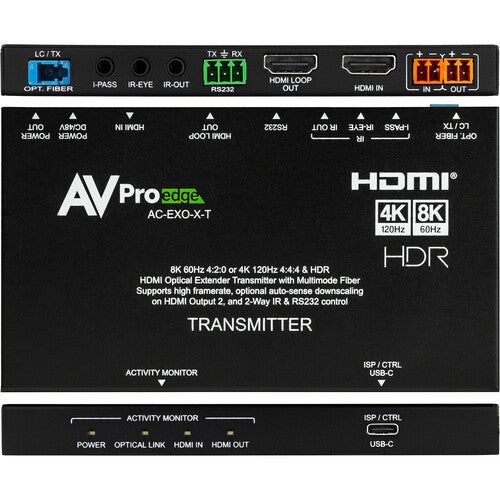

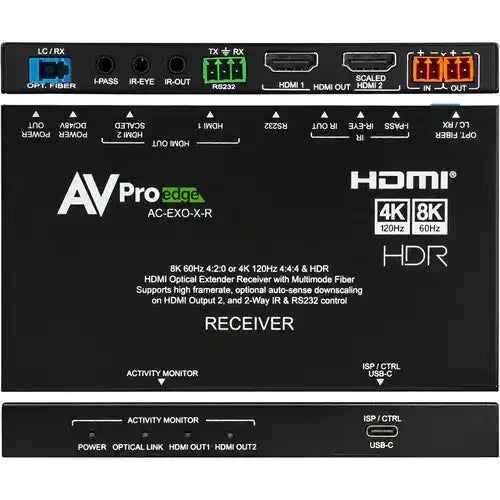

The transmitter connects to the HDMI 2.1 source and converts the signal to optical for transport. The receiver at the display end converts back to HDMI, passing the full signal including HDR metadata, eARC, and CEC. Because the signal travels as light rather than electrical current, there is no ground loop noise, no susceptibility to electromagnetic interference, and no HDCP compliance issues introduced by the extension process. The result is a pixel-accurate reproduction of the source at the display, regardless of run length within the multimode fiber distance specifications.

Key Features

• HDMI 2.1 at 40Gbps — Carries the full uncompressed HDMI 2.1 bandwidth, covering 8K/60Hz 4:4:4, 4K/120Hz, and all intermediate formats without signal compression.
• Multimode Fiber Transport — Uses OM3 or OM4 multimode fiber commonly installed in commercial buildings, reducing the need to pull new single-mode cable.

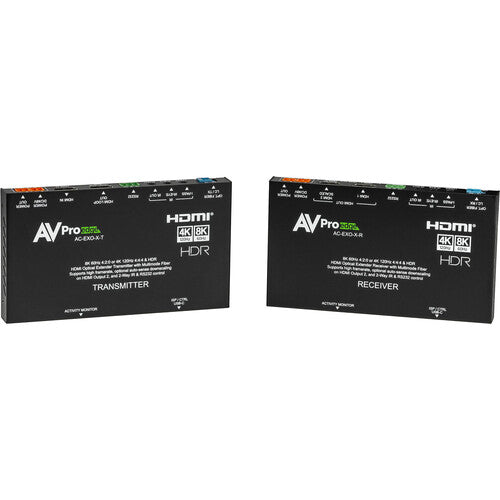

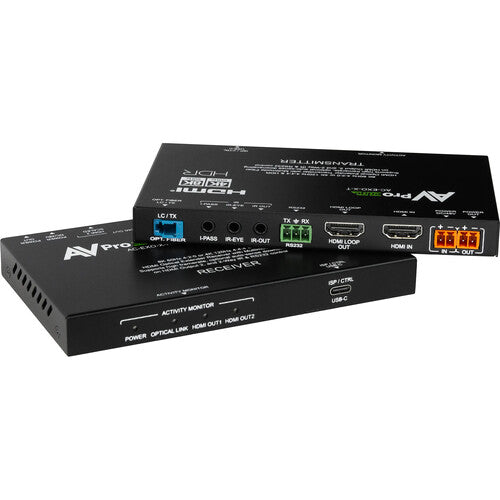

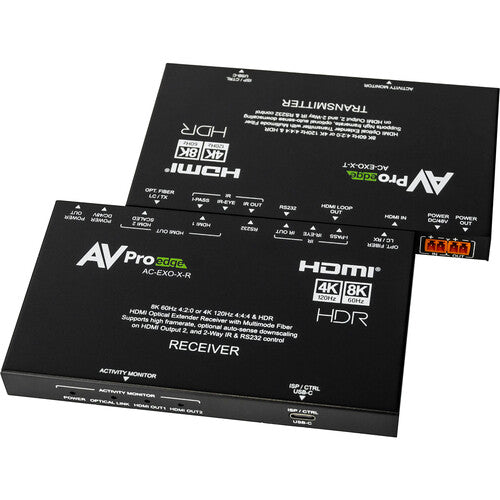

• Complete Tx/Rx Kit — Includes both the transmitter and receiver units, providing everything needed for a point-to-point extension deployment.
• HDR10, HLG, and Dolby Vision Pass-Through — Preserves all HDR metadata formats so the display receives the full tone-mapping information from the source.
• Zero EMI/Ground Loop Noise — Optical transmission is immune to electrical interference, making it ideal for environments with high RF noise such as broadcast studios and control rooms.
• HDCP 2.2 Compliant — Maintains the HDCP authentication chain from source to display, supporting premium content playback on compliant screens.
• Plug-and-Play Installation — No IP configuration, network switch, or management software required — the kit operates transparently as an HDMI cable replacement.
• Suitable for Building-to-Building Runs — Multimode fiber can span multiple floors or wings of a facility, covering distances that exceed the limits of active copper HDMI cables.

Typical Applications

• 8K preview monitor feeds in broadcast production suites and post-production facilities
• 4K/120Hz gaming and simulation display systems in high-frame-rate venues
• Executive boardrooms requiring 8K or high-frame-rate 4K presentation capability
• University auditoriums and lecture theaters with existing multimode fiber infrastructure
• Medical imaging rooms where electrical isolation between source and display is required

Technical Specifications

Competitor Comparison

The AVPro Edge AC-EXO-X-KIT is the only option in this comparison supporting 40Gbps HDMI 2.1 over multimode fiber. The Opticis HDFC-100-TR and Cleerline SSF products are both limited to 18Gbps, which restricts them to 4K/60Hz. For any installation requiring 8K or 4K/120Hz over existing multimode infrastructure, the AVPro Edge unit is the appropriate choice.

Frequently Asked Questions

What fiber type does this kit require?

This extender uses multimode fiber (OM3 or OM4). It is not compatible with single-mode fiber. Most commercial buildings constructed after 2000 have multimode fiber installed, which this kit can reuse directly.

What is the maximum distance supported?

Maximum reach depends on the specific multimode fiber grade and connector quality. Refer to AVPro Edge's published distance specifications for OM3 versus OM4 at 40Gbps to determine whether your run length is within spec before installation.

Does this kit support eARC?

This product transmits the full HDMI 2.1 signal. Refer to AVPro Edge's official datasheet to confirm eARC pin support for your specific installation, as optical HDMI extenders handle the eARC channel differently from active copper cables.

Is a managed network switch required?

No. This is a point-to-point fiber extender, not an AV-over-IP system. No network switch, IP configuration, or management software is required — it connects directly between the source and the display via fiber.
