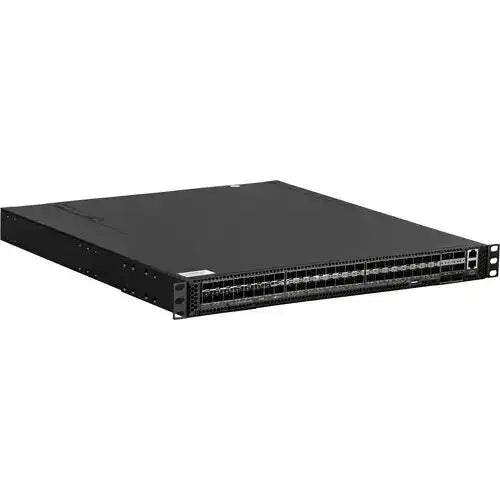

AVPro Edge 48X 10G SFP+ Stackable Managed Switch with Six 40G QSFP+

Product Overview

The AVPro Edge AC-MXNET-10G-SW48Q is a 48-port 10G SFP+ stackable managed switch purpose-built for AV-over-IP distribution in large commercial AV installations. Designed as core AV network infrastructure for SDVoE and MXNet Evolution II environments, this switch delivers the throughput and management depth required for high-density 4K video distribution across enterprise and institutional facilities. With six 40G QSFP+ uplink ports and a 1.2 Tbps switching capacity, it supports scalable AV-over-IP matrix deployments without the configuration overhead of generic enterprise switches. For integrators deploying uncompressed or near-lossless video over IP, this is a purpose-matched network backbone.

Product Description

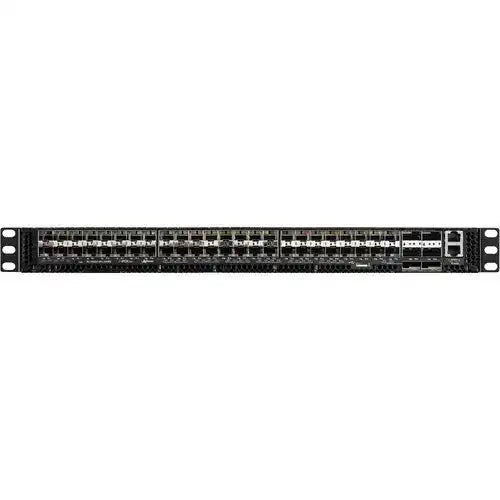

The AC-MXNET-10G-SW48Q provides 48 x 10G SFP+ ports — enough to simultaneously connect 48 independent AV-over-IP endpoints, whether encoders, decoders, or display nodes. Each port operates at full 10 Gigabit speeds, ensuring the headroom needed for uncompressed 4K content streams running on the MXNet Evolution II platform or any SDVoE-compliant device ecosystem. The six integrated 40G QSFP+ uplink ports allow high-bandwidth inter-switch connections for campus-scale or multi-room deployments where multiple switches must be stacked into a unified AV fabric.

Management is handled through a full-featured Web GUI, CLI, and SNMP support, with VLAN segmentation and QoS configuration enabling AV traffic to be prioritized and isolated from general IT network traffic on shared infrastructure. The 1U rack-mount form factor (17.5" x 17" x 1.75") integrates directly into standard 19" AV racks or IT equipment rooms, and at 28 lbs it is appropriately substantial for a high-port-density core switch. Compliance with RoHS and IEEE 802.3 standards ensures suitability for commercial installations.

Unlike general-purpose enterprise switches that require manual tuning of multicast, flow control, and QoS profiles for AV workloads, the AC-MXNET-10G-SW48Q is factory-configured with AV-over-IP network profiles in mind, reducing commissioning time and the risk of misconfiguration on large-scale deployments. The stackable architecture means integrators can add additional switch units as a project scales without redesigning the network topology.

Key Features

• 48 x 10G SFP+ Ports — Full 10 Gigabit connectivity on all 48 ports for simultaneous high-bandwidth AV-over-IP endpoint connections.
• Six 40G QSFP+ Uplink Ports — High-capacity inter-switch uplinks for stacking multiple switches in campus or multi-zone AV deployments.
• 1.2 Tbps Switching Capacity — Non-blocking fabric ensures no throughput bottlenecks even at full port utilization with 4K uncompressed streams.
• 893 Mpps Forwarding Rate — Wire-speed packet forwarding handles the continuous multicast traffic inherent in AV-over-IP distributions.
• Stackable Design — Link multiple units to scale from 48 ports to hundreds of endpoints without redesigning the AV network topology.
• VLAN & QoS Management — Segment AV traffic from general IT traffic and enforce quality-of-service prioritization for latency-sensitive video streams.
• Web GUI, CLI & SNMP — Multiple management interfaces accommodate both AV integrators and IT departments managing shared infrastructure.
• SDVoE & MXNet Evolution II Compatible — Factory-validated for AVPro Edge's MXNet AV-over-IP ecosystem, reducing AV-specific configuration overhead.
• 1U Rack-Mount Form Factor — Standard 19" rack-compatible chassis integrates cleanly into AV equipment rooms and IT infrastructure racks.
• RoHS & IEEE 802.3 Compliant — Meets commercial-grade environmental and electrical standards for permanent installations.

Typical Applications

• Large conference centers and multi-room AV-over-IP matrix deployments
• University and campus-wide digital signage and lecture capture distribution
• Broadcast and production facilities requiring uncompressed 4K video over IP
• Corporate headquarters with centralized AV distribution to multiple boardrooms and collaboration spaces
• Houses of worship with multi-zone video distribution across sanctuary, overflow, and lobby displays
• Control rooms and command centers requiring low-latency multi-source video distribution
• Sports venues and arenas with distributed display systems
• Healthcare facilities with centralized content distribution to patient rooms and public areas

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is this switch compatible with SDVoE-certified encoders and decoders from other manufacturers?

Yes. The AC-MXNET-10G-SW48Q operates as a standard managed Ethernet switch and is compatible with any SDVoE-certified device. It is purpose-validated for AVPro Edge MXNet Evolution II endpoints but will work with other SDVoE ecosystem products that require a 10G network infrastructure.

Do I need to use SFP+ transceivers, or can I connect copper Ethernet devices directly?

All 48 data ports are SFP+ (fiber or DAC cable). For copper 10G endpoints, you will need 10GBASE-T SFP+ transceivers or direct-attach copper (DAC) cables. If your deployment requires native copper PoE++ connectivity, the AC-MXNET-10G-SW24C is the appropriate companion switch.

How many switches can be stacked together?

The stackable architecture uses the six 40G QSFP+ uplink ports for inter-switch connections. The specific maximum stack depth depends on your topology design; contact your AVPro Edge distributor for validated stack configurations for your deployment scale.

What VLAN and multicast configuration is required for AV-over-IP operation?

The switch supports 802.1Q VLAN tagging and IGMP snooping for multicast management, which are the core requirements for AV-over-IP video distribution. AVPro Edge provides configuration guidance for MXNet deployments. For SDVoE third-party deployments, standard SDVoE network configuration guidelines apply.

Is this switch managed through AVPro Edge's MXNet controller software?

The switch is managed independently via Web GUI, CLI, or SNMP — standard network management interfaces. The MXNet controller manages the AV-over-IP endpoints (encoders and decoders), while the switch itself is configured through its own management interface or integrated into your existing network management platform.

What warranty and support terms apply?

Contact Creation Networks for current warranty terms and AVPro Edge support coverage applicable to your region and purchase agreement.
