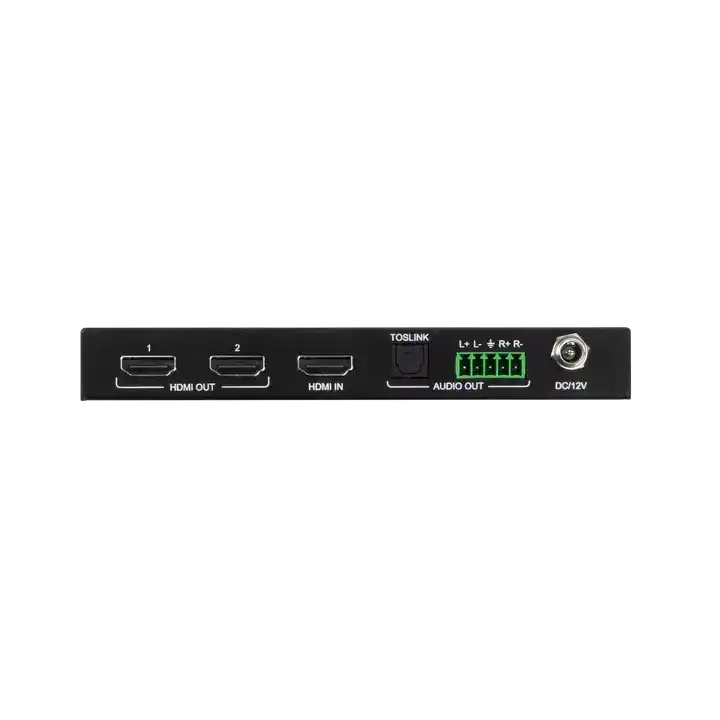

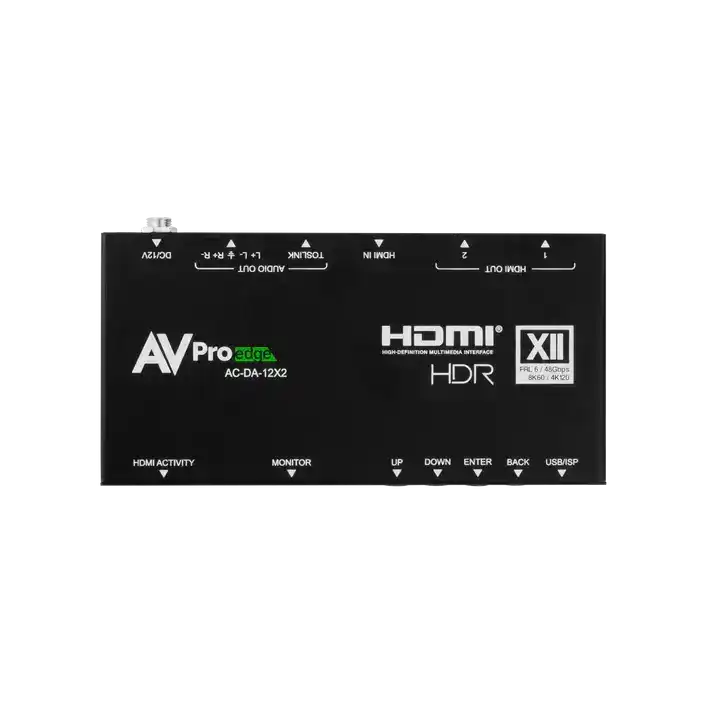

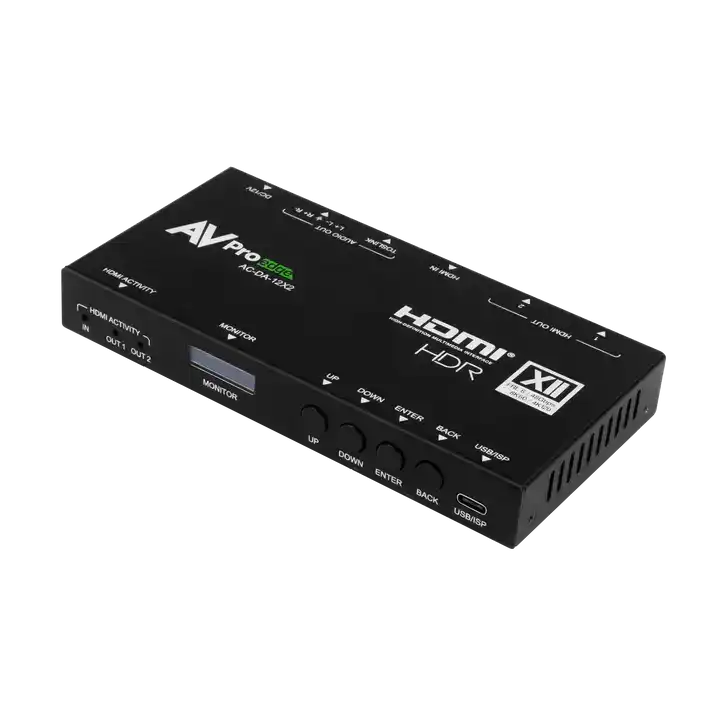

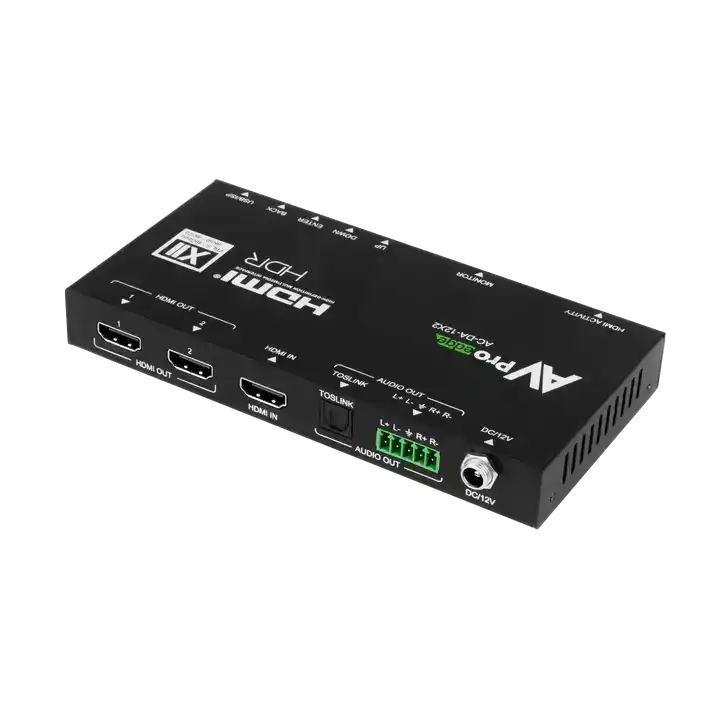

AVPro Edge 48Gbps HDMI scaling distribution amplifier with one input, dual outputs

Overview

The AVPro Edge AC-DA-12X2 is a 1-input, 2-output HDMI 2.1 distribution amplifier operating at full 48Gbps bandwidth. It supports resolutions up to 8K60 and 4K120, with independent per-output scaling so each display receives a signal matched to its native resolution. Designed for professional AV integrators, the unit delivers consistent signal integrity across both outputs without compromise to color depth or dynamic range.

Description

At its core, the AC-DA-12X2 accepts a single HDMI 2.1 source and splits it to two HDMI 2.1 outputs, each independently scalable. Whether connecting a 4K projector and an 8K display simultaneously, or feeding a confidence monitor alongside a main display, the per-output scaler ensures correct timing and resolution on each. The amplifier handles HDR10, HLG, and Dolby Vision passthrough, and supports HDCP 2.3 for protected content. A locking power connector and compact form factor make it suitable for rack installations and behind-display mounting alike.

Key Features

• Full 48Gbps HDMI 2.1 bandwidth — no downgrade to 18Gbps
• 8K60 and 4K120 support for next-generation display environments
• Independent per-output scaler — each display receives its correct resolution
• HDR10, HLG, and Dolby Vision passthrough on both outputs
• HDCP 2.3 compliance for protected 4K and 8K content
• Compact form factor suitable for rack or behind-display installation
• Locking power connector for reliable permanent installations

Typical Applications

• Boardrooms and executive conference rooms requiring dual display output from a single 4K or 8K source
• High-end home theater installations feeding a projector and a reference monitor simultaneously
• Digital signage deployments where one media player drives two screens at different resolutions
• Broadcast and production control rooms distributing an 8K or 4K120 feed to a confidence monitor and a program display
• Education environments splitting a presenter's signal to an in-room display and a remote overflow screen

Technical Specs

Competitor Comparison

The Kramer VM-2H2 and Extron DA2 HD 4K Plus are both limited to 18Gbps (HDMI 2.0) and top out at 4K60. Neither offers per-output scaling or Dolby Vision support. The AC-DA-12X2 is purpose-built for environments where HDMI 2.1 sources — gaming consoles, 8K cameras, or next-generation media players — must feed mixed-resolution displays without an external scaler in the signal path.

FAQ

Can both outputs run at different resolutions simultaneously?

Yes. The per-output scaler is independent, so Output 1 can deliver 4K60 while Output 2 scales down to 1080p for a secondary display — no external scaler required.

Does this unit support 8K at full bandwidth?

Yes. At 48Gbps (HDMI 2.1), the AC-DA-12X2 passes 8K60 4:2:0 and 4K120 4:4:4 signals to compatible displays.

Is HDCP 2.3 required for 4K streaming content?

HDCP 2.3 is required for certain streaming platforms and 4K Blu-ray content. The AC-DA-12X2 supports HDCP 2.3 on both outputs, ensuring compatibility with all protected sources.

Can I cascade multiple units for more outputs?

Yes. Connect the output of one AC-DA-12X2 into the input of a second unit to extend distribution to four or more displays.

What is the maximum cable length supported on each output?

Performance depends on cable quality. For distances beyond 5 meters, AVPro Edge recommends using certified Ultra High Speed HDMI cables or a fiber HDMI extender to maintain 48Gbps integrity.
