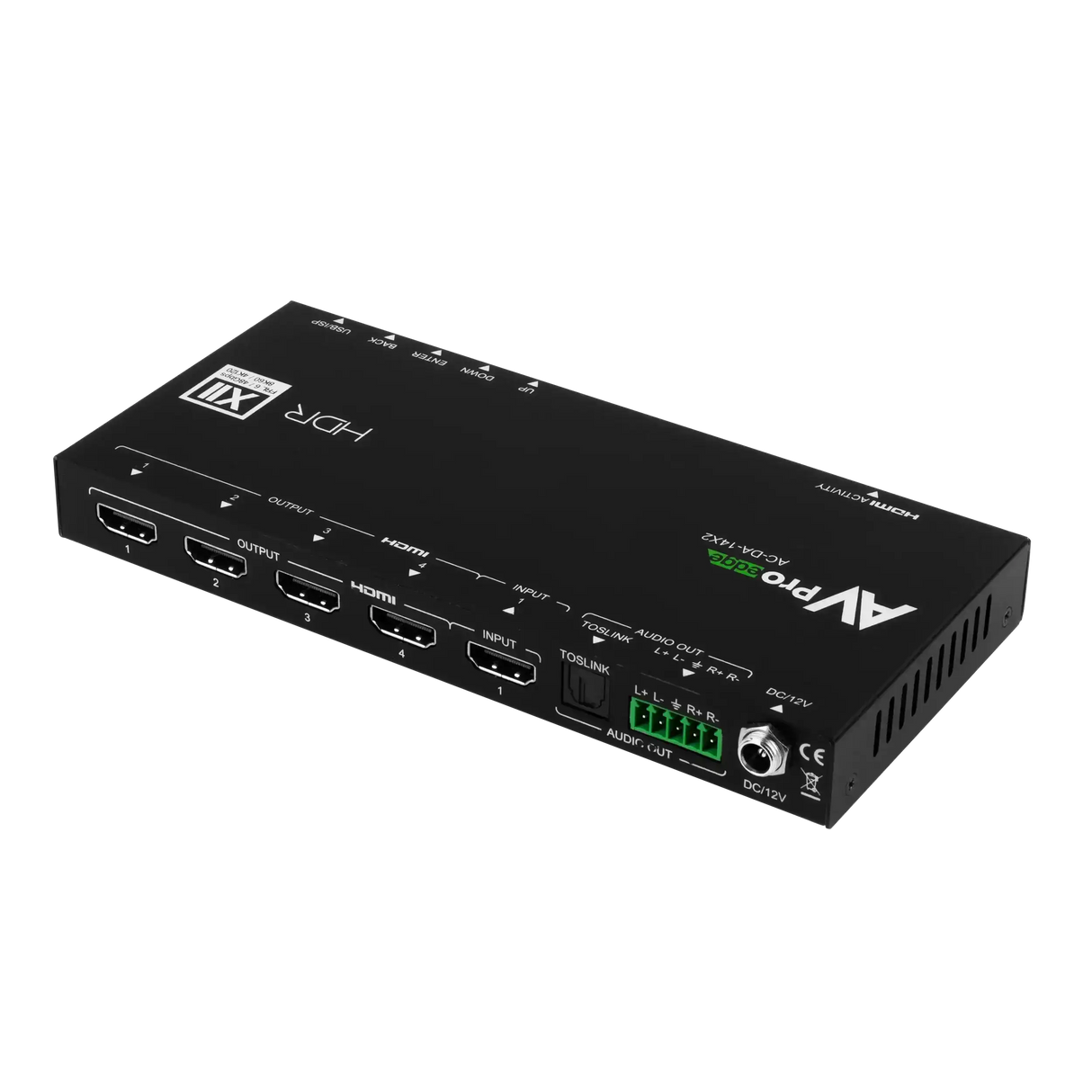

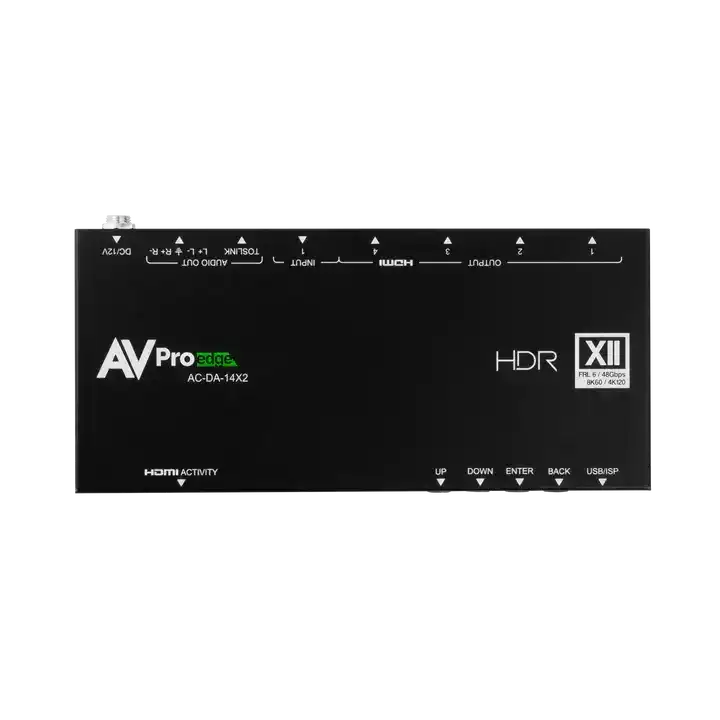

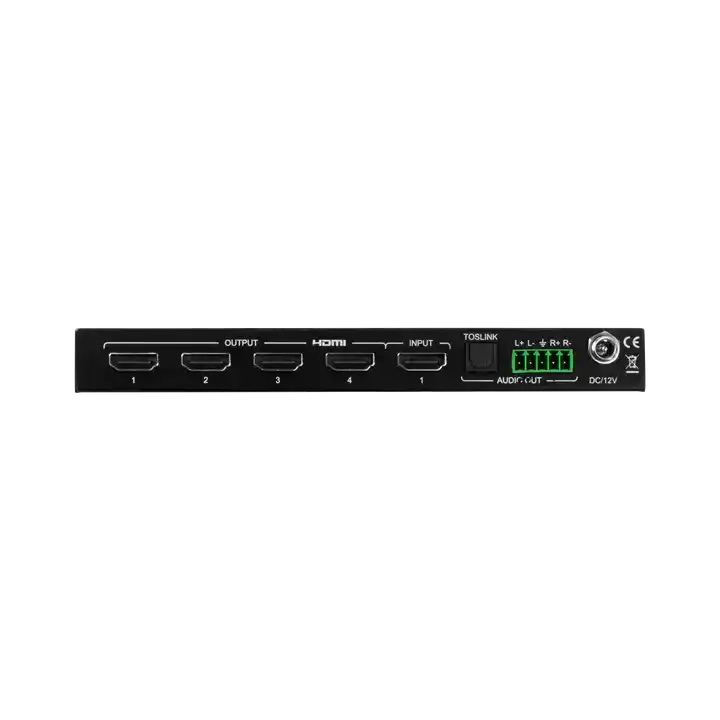

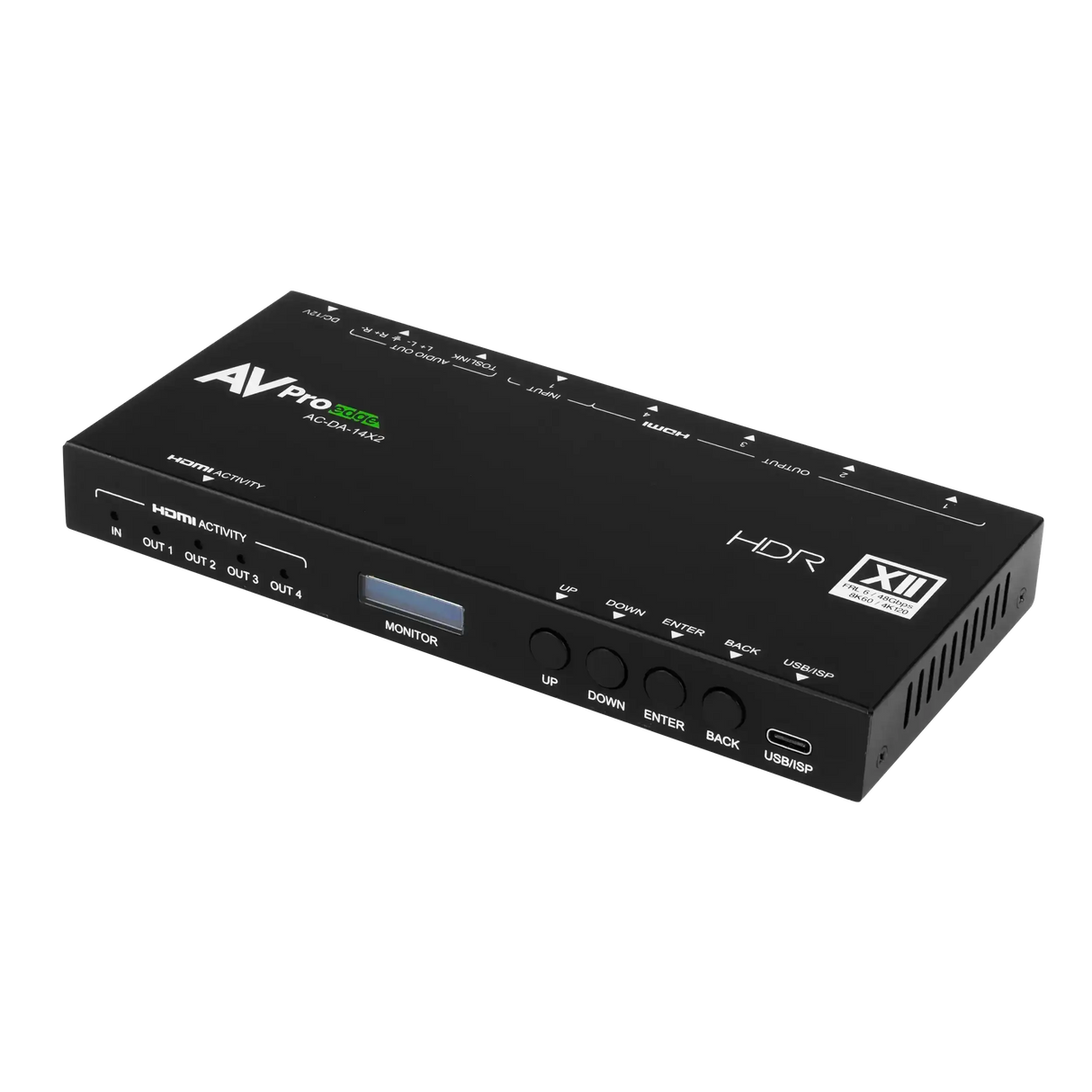

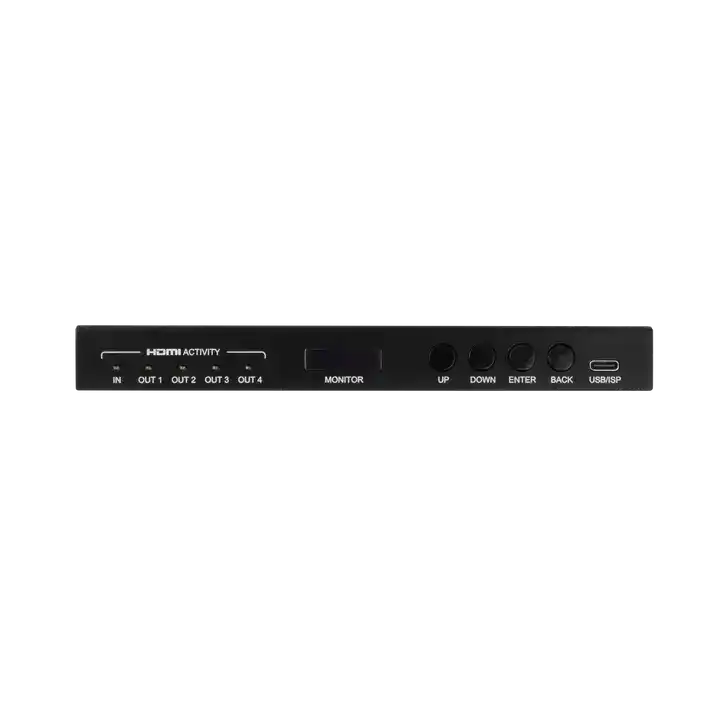

AVPro Edge 48Gbps HDMI scaling distribution amplifier with one input, and four outputs

Overview

The AVPro Edge 48Gbps HDMI Scaling Distribution Amplifier is a one-input, four-output HDMI 2.1 distribution amplifier with an integrated output scaler. Running at full 48Gbps bandwidth, it supports 8K60, 4K120, and 4K60 4:4:4 HDR source signals while independently scaling each output to match the native resolution of connected displays. This makes it particularly useful in mixed-display environments — where a 4K source must simultaneously feed a 4K conference room display, a 1080p overflow monitor, and a legacy projector — without requiring a separate scaler for each output.

Description

Standard HDMI distribution amplifiers split a signal to multiple outputs at the same resolution. When one or more displays cannot accept the source resolution — a 1080p monitor receiving a 4K signal, for example — those displays either go blank, display an error, or force the source device to output at a lower resolution for all outputs. The AVPro Edge 48Gbps DA with integrated scaling eliminates this compromise by allowing each output port to be independently scaled.

HDMI 2.1's 48Gbps bandwidth supports the highest consumer and prosumer video specifications in current use: 8K60, 4K120, and 4K60 4:4:4 with HDR10, HLG, and Dolby Vision. This unit accepts all of these formats at the input and can distribute them at native resolution to displays that support them, while simultaneously downscaling the signal for legacy displays on the same bus.

Key Features

• 48Gbps HDMI 2.1 bandwidth — supports 8K60, 4K120, and 4K60 4:4:4 at the input
• 1 HDMI 2.1 input, 4 independent HDMI outputs
• Per-output resolution scaling — each output independently matches its connected display
• HDR10, HLG, and Dolby Vision pass-through on capable outputs
• HDCP 2.3 compliant across all outputs
• Downscaling for legacy 1080p displays without affecting other outputs
• Rack-mountable chassis suitable for commercial AV equipment racks
• EDID management for reliable source-to-display handshake across all four outputs

Typical Applications

• Conference rooms with mixed-resolution displays (4K main + 1080p overflow or annotation monitors)
• Corporate lobbies distributing a single media player source to multiple display sizes
• Digital signage systems with mixed-vintage display inventory
• Houses of worship feeding IMAG, livestream capture, and lobby overflow from one source
• Education spaces with main display plus instructor and student confidence monitors at different resolutions
• Control rooms and NOCs distributing a high-resolution source to multiple operator positions

Technical Specs

Competitor Comparison

Frequently Asked Questions

Can each of the four outputs display a different resolution simultaneously?

Yes. The integrated scaler can set each output independently. A 4K60 source can feed one output at 4K60, another at 1080p60, and another at 720p60 simultaneously — all from the same input signal.

Does it work with HDMI 2.0 displays?

Yes. The unit is backward compatible. HDMI 2.0 displays will receive a signal at the appropriate resolution for that output, scaled down if necessary from the input.

Is EDID management required for initial setup?

The unit includes built-in EDID management to negotiate capability between the source and all connected displays. In most installations it works without manual EDID configuration, but the EDID can be customized for problematic source-display combinations.

Can it pass audio as well as video?

Yes. HDMI audio — including multichannel PCM, Dolby Atmos, and DTS:X — passes through the distribution amplifier to all four outputs along with the video signal.

Is the unit rack-mountable?

Yes. The chassis supports rack mounting. Rack ears or a mounting kit may be required depending on the chassis configuration — confirm with Creation Networks at time of order.
