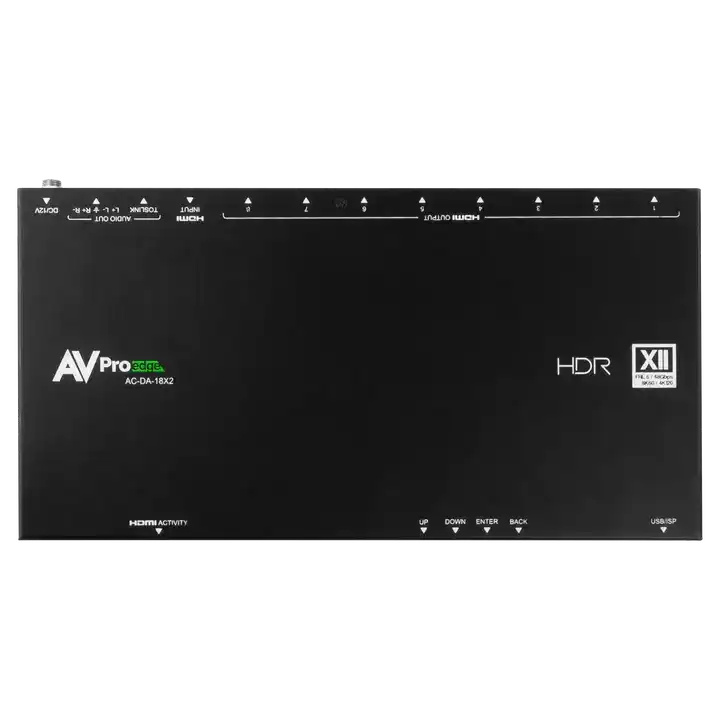

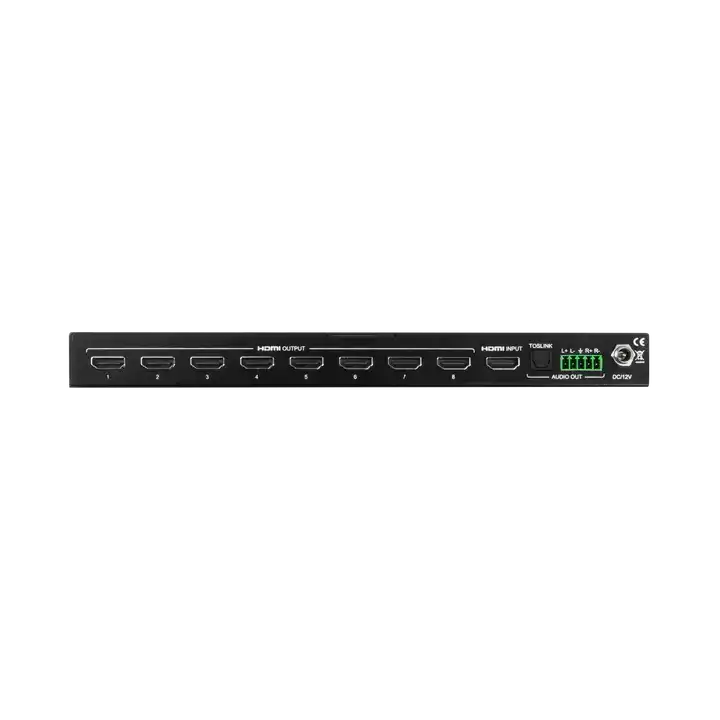

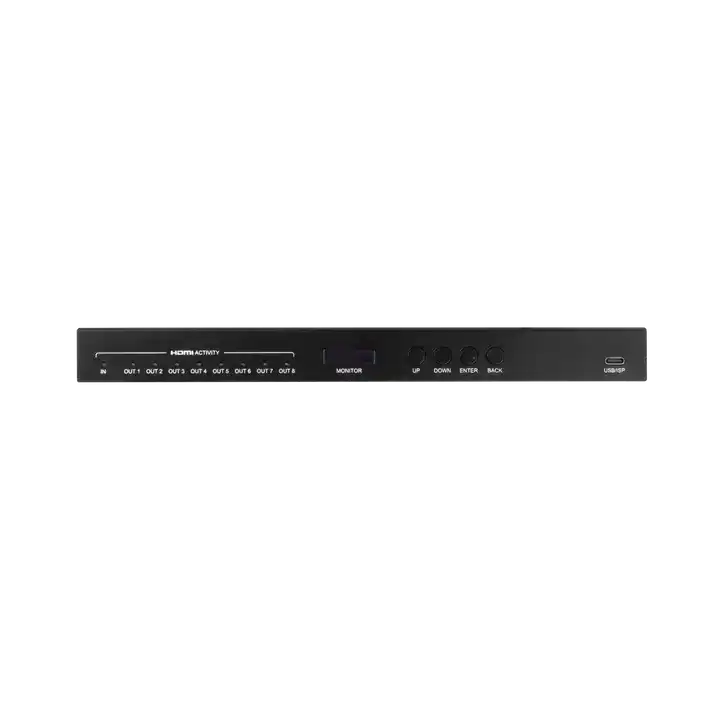

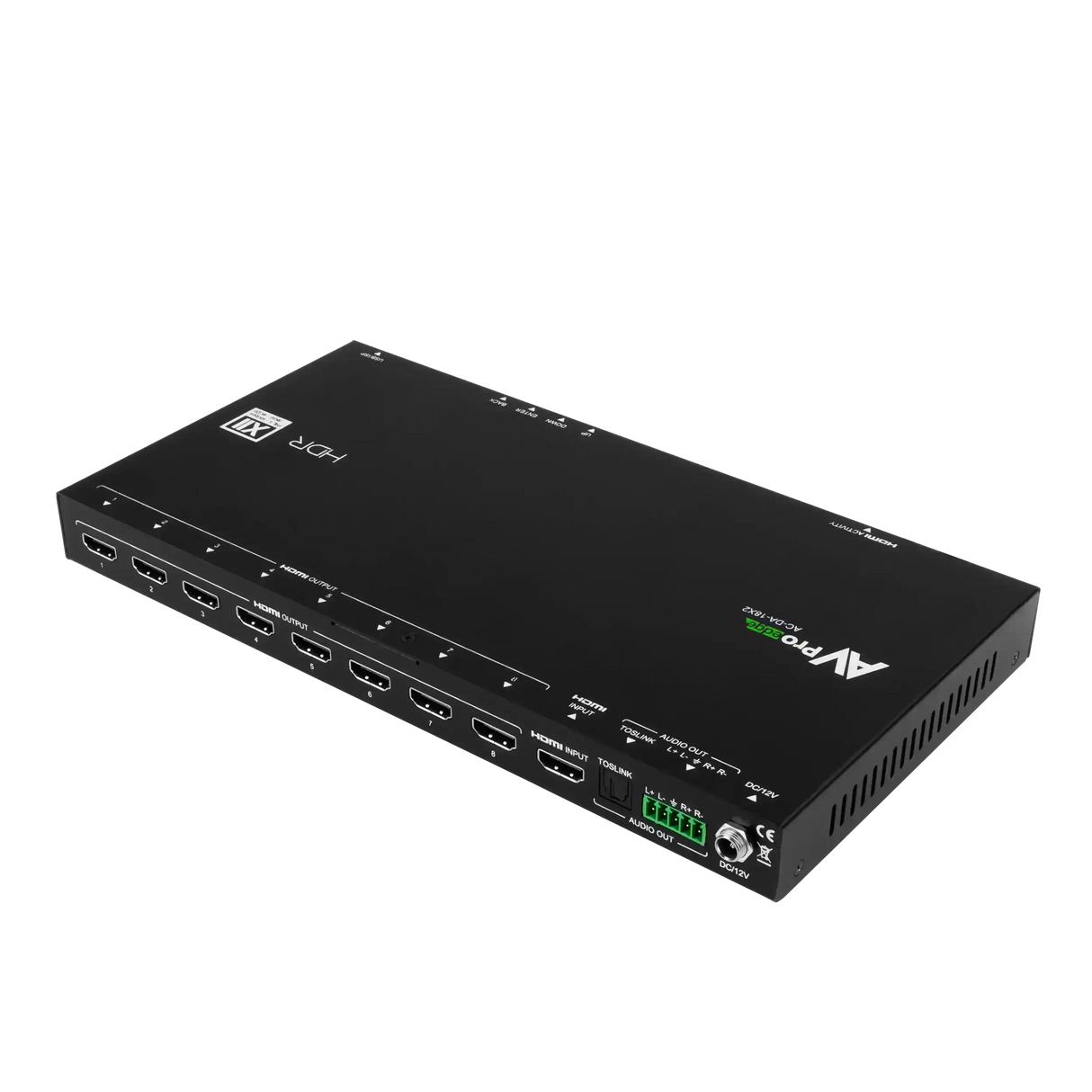

AVPro Edge 48Gbps HDMI scaling distribution amplifier with one input, and eight outputs

Product Overview

The AVPro Edge 48Gbps HDMI Scaling Distribution Amplifier delivers one HDMI 2.1 input to eight simultaneous HDMI outputs at full 48Gbps bandwidth, supporting resolutions through 8K60 and 4K120. A built-in hardware scaler allows each output to be independently matched to the connected display's native resolution, eliminating compatibility issues in mixed-display environments. This unit addresses professional AV installations where a single high-bandwidth HDMI source must drive large numbers of displays without signal degradation or resolution compromise. It is one of the highest-bandwidth 1x8 HDMI distribution amplifiers available in the commercial AV market, placing it firmly ahead of comparable offerings in its class.

Product Description

Distribution amplifiers at 48Gbps are uncommon, and the AVPro Edge 1x8 stands out by supporting the full HDMI 2.1 specification — including 8K60, 4K120, and Variable Refresh Rate (VRR) passthrough — while simultaneously providing output-level scaling for resolution matching. In a typical deployment, a single 4K or 8K source such as a high-end gaming console, PC, or professional media server is connected to the HDMI input, and the amplifier fans the signal out to eight displays that may each run at different resolutions. The onboard scaler handles downscaling or upscaling on a per-output basis, so a 4K120 source can simultaneously drive 4K60, 1080p, and other displays without requiring external scalers at each endpoint. HDR formats including HDR10, HLG, and Dolby Vision are supported through the signal chain without clipping or tone mapping at the amplifier stage. The rack-mountable form factor makes it practical for equipment rooms and AV closets, and the unit is built to operate continuously in commercial environments. Compared to the Kramer VM-8H2A, which is an 8-output HDMI DA but operates at 18Gbps and lacks native 8K or 4K120 support, this AVPro Edge unit delivers substantially higher bandwidth with integrated scaling. The Extron DA8 HD 4K Plus handles 18Gbps 4K60 distribution but similarly does not support 8K or the full 48Gbps HDMI 2.1 spec — making the AVPro Edge unit the appropriate choice when the source chain includes HDMI 2.1 content or next-generation display infrastructure.

Key Features

• Full 48Gbps HDMI 2.1 bandwidth — supports 8K60 and 4K120 passthrough
• One HDMI 2.1 input to eight simultaneous HDMI 2.1 outputs
• Built-in output scaling for per-output resolution matching to connected displays
• HDR support: HDR10, HLG, and Dolby Vision through the signal chain
• Rack-mountable, commercial-grade form factor for equipment room installation
• Eliminates need for external scalers in mixed-resolution display environments
• Substantially higher bandwidth than 18Gbps-class distribution amplifiers

Typical Applications

• Corporate boardrooms and training centers distributing a single 4K source to multiple displays of varying resolutions
• Digital signage arrays where a central media server feeds eight display zones simultaneously
• Esports venues and gaming facilities requiring 4K120 or 8K distribution to multiple screens
• Broadcast production monitoring rooms where a program feed is distributed to multiple director and engineering monitors
• Home theater and screening room builds needing future-proof HDMI 2.1 distribution
• University lecture halls and auditoriums distributing a presenter's content to audience-facing screens

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does this unit support 8K resolution on all eight outputs simultaneously?

The unit supports 8K60 input at 48Gbps and can distribute to all eight outputs. Actual output resolution on each port depends on the connected display's capabilities and can be set individually via the built-in scaler.

Can outputs be set to different resolutions independently?

Yes. The built-in scaler allows each of the eight outputs to be configured for a different resolution, making it practical to simultaneously drive displays ranging from 1080p to 4K without external scalers.

How does this compare to 18Gbps distribution amplifiers like the Kramer VM-8H2A?

The Kramer VM-8H2A operates at 18Gbps, limiting it to 4K60 4:4:4 maximum. It also does not include a built-in scaler. The AVPro Edge unit supports the full 48Gbps HDMI 2.1 spec — including 8K60 and 4K120 — and includes per-output hardware scaling, which are meaningful advantages for HDMI 2.1 source environments.

Is this unit suitable for permanent rack installation in a commercial AV system?

Yes. The rack-mountable chassis and commercial-grade design make it appropriate for continuous operation in equipment rooms, AV closets, and technical infrastructure spaces.
