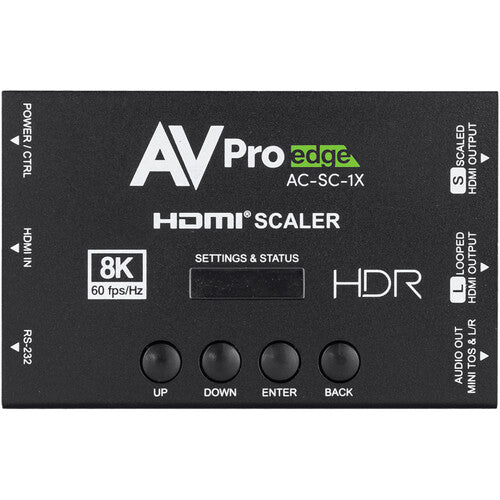

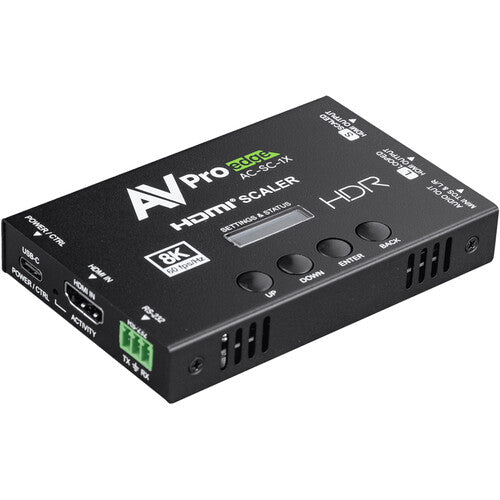

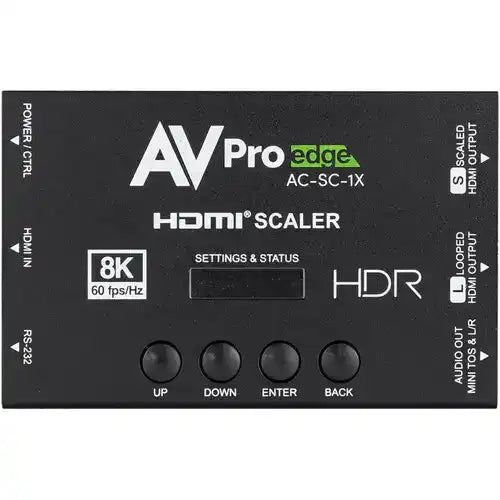

AVPro Edge 40 Gbps 8K HDMI EDID Manager, Pixel Scaler, Audio Extractor & Reclocker with loop-out, toslink

Overview

The AVPro Edge 40 Gbps 8K HDMI EDID Manager, Pixel Scaler, Audio Extractor and Reclocker is a single-unit HDMI 2.1 signal processor that addresses the most common signal compatibility problems encountered in professional AV installations. It handles EDID negotiation, resolution scaling, audio de-embedding, and signal reclocking in one compact device, with a simultaneous loop-out and Toslink optical audio output for maximum integration flexibility.

Description

In complex AV systems, source devices and displays frequently fail to agree on a common resolution or audio format, particularly when matrix switchers, extenders, or signal processors sit in the path. The AVPro Edge AC-SC-1X resolves these incompatibilities at their source. Its EDID management engine stores and transmits a fixed EDID to source devices, preventing handshake failures that cause blank screens or audio dropouts during source switching. The integrated pixel scaler converts any input resolution to a user-specified output, allowing a legacy 1080p source to feed an 8K display or enabling an 8K source to drive a lower-capability display without manual intervention.

The audio extractor de-embeds the audio from the HDMI signal and routes it simultaneously to the HDMI output, the loop-out, and a Toslink optical output. This is particularly valuable when a downstream AV receiver, DSP, or amplifier accepts only optical audio rather than HDMI ARC. The reclocker regenerates the HDMI signal timing, compensating for jitter or degradation that accumulates over long cable runs or through multiple devices in the signal chain.

Key Features

• Full HDMI 2.1 compliance at 40 Gbps — supports 8K/60Hz 4:4:4 and 4K/120Hz
• EDID management prevents handshake failures across complex signal chains
• Integrated pixel scaler adjusts input resolution to any required output resolution
• Audio extractor routes audio to HDMI output, loop-out, and Toslink simultaneously
• Signal reclocker regenerates timing to correct jitter from long cable runs or multiple devices

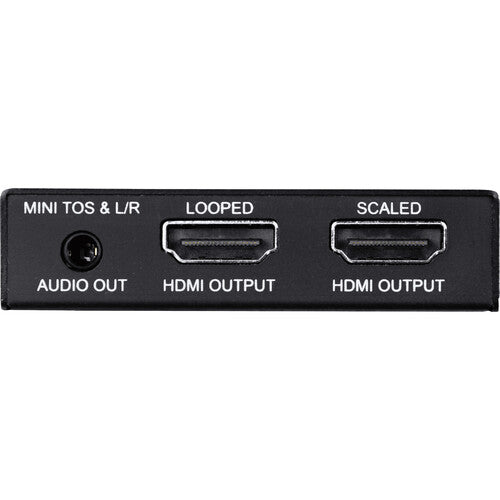

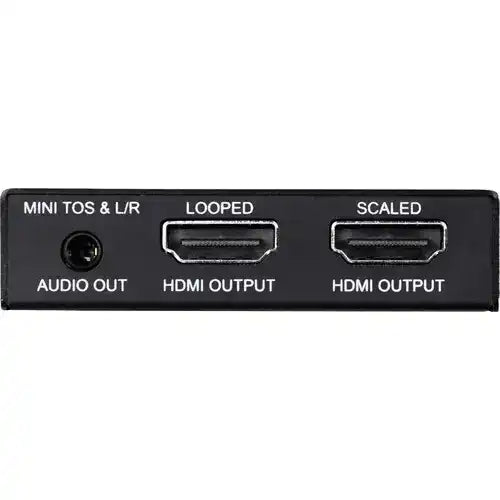

• Simultaneous loop-out for local monitoring or secondary display feeds
• HDCP 2.3 support ensures compatibility with protected content workflows
• HDR10, HLG, and Dolby Vision pass-through

Typical Applications

• Corporate boardrooms where multiple source types must drive a single high-resolution display without EDID negotiation failures
• Digital signage installations requiring consistent EDID management for reliable 24/7 unattended operation
• Home theater systems where a source must feed both a display (HDMI) and an audio processor (Toslink) simultaneously
• Broadcast and production environments needing signal reclocking after long cable runs through patch panels
• Installations with legacy sources that require downscaling before connection to a multi-input matrix switcher
• Any system where a loop-out is needed to simultaneously feed a preview monitor alongside the main display

Technical Specifications

Competitor Comparison

The Murideo SIX-G is primarily a testing and diagnostic device rather than a production signal processor; it does not function as a pixel scaler or provide a simultaneous loop-out. The Atlona AT-HD-CLSO-824 offers audio extraction but is limited to HDMI 2.0 at 18 Gbps, making it incompatible with 8K or 4K/120Hz signal chains. The AVPro Edge AC-SC-1X is the only device in this comparison that combines 40 Gbps HDMI 2.1 bandwidth with pixel scaling, audio extraction, reclocking, and a simultaneous loop-out in a single unit.

FAQ

What does an EDID manager do and why is it needed?

EDID (Extended Display Identification Data) is the communication protocol a display uses to tell a source device which resolutions and audio formats it supports. When a switcher or extender sits between the source and display, the EDID can be lost or misread, causing the source to output an incompatible signal. An EDID manager stores and presents a fixed, known-good EDID to the source, ensuring consistent output regardless of what display is connected downstream.

Can the pixel scaler convert 8K input to 4K output?

Yes. The pixel scaler can convert in both directions — upscaling lower-resolution sources to higher-resolution outputs and downscaling high-resolution sources to match lower-capability displays or recording devices.

Does the Toslink output carry the full audio from the HDMI signal?

The Toslink output carries the extracted audio, which supports stereo PCM and standard multi-channel formats. Lossless formats such as Dolby TrueHD and DTS-HD Master Audio require HDMI for full bit-stream transmission; the Toslink output carries the compatible decoded version.

Does the loop-out degrade signal quality?

No. The loop-out is an active buffered output that regenerates the signal rather than passively splitting it, so there is no signal loss or quality degradation at either output.

Is this compatible with 4K/120Hz for gaming or high-frame-rate applications?

Yes. The AC-SC-1X supports 4K/120Hz input and output, making it suitable for gaming installations, simulation environments, and other high-frame-rate display applications within its 40 Gbps bandwidth envelope.
