AVPro Edge 24X 10G SFP+ Stackable Managed Switch with Two 40G QSFP+

Product Overview

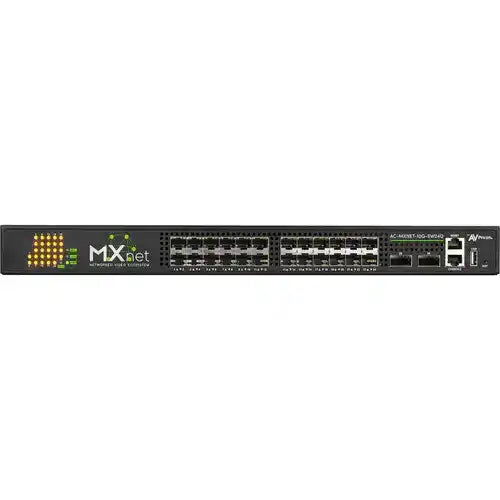

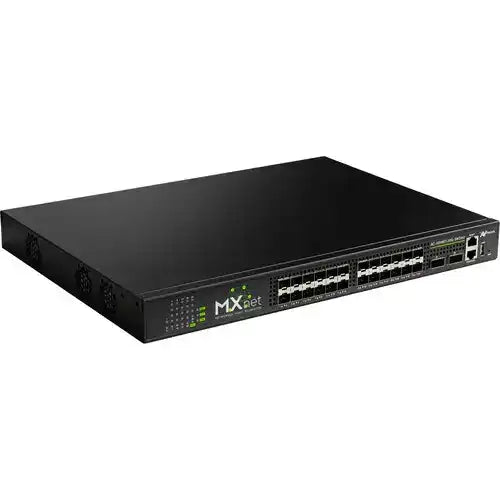

The AVPro Edge AC-MXNET-10G-SW24Q is a 24-port 10G SFP+ managed switch purpose-built for AV-over-IP infrastructure, specifically the MXNET SDVoE ecosystem. Designed for commercial AV integrators deploying high-density 4K video distribution over fiber or copper SFP networks, this 1U rack-mount switch provides 600 Gbps of switching capacity with 446 Mpps forwarding rate — the throughput required to handle simultaneous uncompressed 4K AV-over-IP streams across dozens of endpoints. Two 40G QSFP+ uplink ports enable high-bandwidth backbone connections for multi-switch or multi-room deployments, while the stackable architecture allows network expansion without replacing infrastructure. Full Layer 2 management via Web GUI, CLI, SNMP, VLAN, and QoS gives network-savvy integrators granular control over AV traffic prioritization and segmentation.

Product Description

Unlike generic data center switches, the AC-MXNET-10G-SW24Q is validated for use within the AVPro Edge MXNET platform, ensuring compatibility with SDVoE encoders, decoders, and control software without requiring additional configuration testing. Each of the 24 SFP+ ports operates at 10G, supporting both fiber and direct-attach copper SFP+ modules, giving integrators flexibility in cable plant design across different building types and distances.

The two 40G QSFP+ uplink ports serve as inter-switch backbone connections, supporting aggregation of multiple 10G switches in large venues where signal distribution spans multiple IDF/MDF locations. This eliminates bandwidth bottlenecks that occur when 10G AV endpoints share uplinks rated at the same speed as their downlinks.

VLAN segmentation allows AV traffic to be isolated from corporate IT networks, while QoS prioritization ensures that real-time AV streams receive bandwidth priority over background data. SNMP support enables integration with network monitoring platforms for proactive fault detection in mission-critical installations.

The switch operates within a 0°C to 50°C range and is RoHS and IEEE 802.3 compliant, meeting standard commercial equipment requirements for equipment rooms and server racks. At 16 lbs in a 1U form factor (17.5" x 12" x 1.75"), it occupies minimal rack space relative to the switching capacity it provides.

Key Features

• 24 x 10G SFP+ Ports — Full 10 Gigabit fiber or DAC copper connectivity on all 24 ports, supporting high-density AV-over-IP endpoint connections.
• 2 x 40G QSFP+ Uplinks — High-bandwidth backbone connections for multi-switch deployments, preventing uplink saturation in large venues with many simultaneous 4K streams.
• 600 Gbps Switching Capacity — Non-blocking switch fabric handles full-wire-speed traffic across all ports simultaneously without queuing or dropped frames.
• 446 Mpps Forwarding Rate — Line-rate packet forwarding ensures low-latency AV stream delivery across all connected endpoints.
• MXNET SDVoE Ecosystem Validated — Pre-tested and compatible with AVPro Edge MXNET encoders and decoders, reducing integration time and support overhead.
• Stackable Architecture — Multiple switches can be stacked and managed as a single logical unit, scaling port counts for larger deployments without redesigning the network.
• Full Layer 2 Management — Web GUI, CLI, SNMP, VLAN, and QoS provide enterprise-grade network control for AV traffic segmentation and prioritization.
• 1U Compact Form Factor — At 17.5" x 12" x 1.75", the switch fits standard equipment racks alongside AV processing gear without requiring dedicated IT rack space.
• RoHS and IEEE 802.3 Compliant — Meets commercial installation standards for environmental compliance and Ethernet interoperability.
• 0°C to 50°C Operating Range — Suitable for standard equipment rooms and AV closets without requiring precision cooling.

Typical Applications

• MXNET SDVoE AV-over-IP distribution infrastructure
• Large conference centers and convention facilities with multi-zone 4K video distribution
• University campus AV networks with centralized source distribution
• Broadcast and production facilities requiring low-latency 4K signal routing over IP
• Corporate headquarters with distributed display networks across multiple floors
• Houses of worship with campus-wide AV distribution
• Sports arenas and stadium control room AV-over-IP backbones
• Healthcare facilities with multi-room digital signage and clinical display networks
• Government and military command centers requiring high-density video distribution

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is this switch required for MXNET SDVoE deployments, or can any 10G switch be used?

While SDVoE is designed to operate on standard 10G network infrastructure, the AC-MXNET-10G-SW24Q is factory-validated with the MXNET platform, meaning AVPro Edge has tested and confirmed compatibility, default multicast and IGMP configurations, and QoS profiles. Using a non-validated switch is possible but requires additional configuration and introduces support complexity.

What type of SFP+ modules are compatible?

The switch accepts standard 10G SFP+ modules including single-mode fiber, multi-mode fiber, and direct-attach copper (DAC) cables. Module compatibility should be confirmed with AVPro Edge or Creation Networks for specific brand and distance requirements in your installation.

How many simultaneous 4K AV-over-IP streams can this switch handle?

With 600 Gbps of non-blocking switching capacity and 24 x 10G ports, the switch can theoretically support 24 simultaneous full-bandwidth 10G streams. In SDVoE deployments, each uncompressed 4K stream consumes approximately 10G of bandwidth, so the switch supports up to 24 independent 4K source or display endpoints.

Can I stack multiple units for larger installations?

Yes. The stackable design allows multiple AC-MXNET-10G-SW24Q units to be interconnected via the 40G QSFP+ ports, managed as a single logical switch. This is the recommended approach for venues requiring more than 24 endpoints, such as large convention centers or university buildings.

Does this switch support IGMP snooping for multicast AV traffic?

Yes. IGMP snooping is supported and is essential for SDVoE/AV-over-IP deployments to ensure multicast video streams are only forwarded to ports where endpoints have joined the multicast group, preventing unnecessary bandwidth consumption across all switch ports.

What is the warranty on this switch?

The AC-MXNET-10G-SW24Q is covered by AVPro Edge's standard warranty. Contact Creation Networks for current warranty terms and to arrange pre-sales technical consultation for your AV-over-IP network design.
