AVPro Edge 24X 10G Copper Managed Switch – PoE++ with Six 10G/25G SFP28

Product Overview

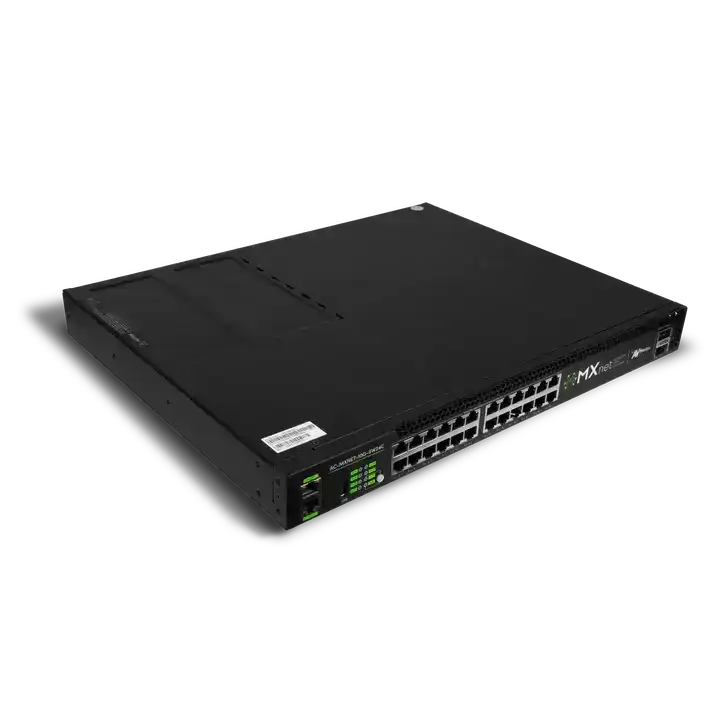

The AVPro Edge AC-MXNET-10G-SW24C is a 24-port 10G copper managed switch with PoE++ (IEEE 802.3bt) on all 24 ports, purpose-built for AV-over-IP deployments using the MXNet Evolution II or SDVoE platform. Combining 10 Gigabit copper connectivity with Power over Ethernet at the highest standard (up to 90W per port) on a fully managed, stackable platform, it addresses the specific infrastructure requirements of commercial AV installations where endpoints require both high-bandwidth network connectivity and local power delivery from a single cable. Six 10G/25G SFP28 uplink ports provide the high-speed inter-switch connections needed to integrate this unit into larger AV-over-IP matrix topologies. For integrators specifying AV-over-IP network infrastructure that must power cameras, AV-over-IP encoders, and display controllers directly from the switch, the AC-MXNET-10G-SW24C consolidates network and power distribution into a single 1U device.

Product Description

All 24 copper ports on the AC-MXNET-10G-SW24C operate at full 10 Gigabit speeds with IEEE 802.3bt PoE++ capability, providing the bandwidth required for uncompressed or near-lossless 4K AV-over-IP streams while simultaneously delivering up to 90W of power to connected AV endpoints. This matters in commercial AV installations where running separate power infrastructure to ceiling-mounted cameras, PTZ units, AV-over-IP encoders, or digital signage players adds cost and complexity. With PoE++ on every port, those devices can be powered directly from the switch over a single Cat cable run.

The six SFP28 uplink ports support both 10G and 25G speeds, providing uplink flexibility when connecting to spine switches or higher-tier network infrastructure. In a stacked AV-over-IP deployment, these uplinks carry aggregated traffic from the 24 copper endpoints to a core switch such as the AC-MXNET-10G-SW48Q, enabling scalable AV fabric design. The stackable architecture allows multiple units to be combined without rebuilding the network topology as a project grows.

Management capabilities include VLAN segmentation, QoS prioritization, and traffic monitoring — the core tools needed to properly configure an AV-over-IP network where video multicast traffic must be isolated and prioritized over general data traffic. The switch is validated for AV-over-IP deployments running MXNet Evolution II and SDVoE-compliant ecosystems, reducing the AV-specific configuration work typically required when adapting general-purpose enterprise switches for AV workloads.

Key Features

• 24 x 10G Copper Ports with PoE++ (IEEE 802.3bt) — Every port delivers full 10 Gigabit speeds with up to 90W of PoE++ power, eliminating the need for separate power runs to AV endpoints, cameras, and display controllers.
• Six 10G/25G SFP28 Uplink Ports — Flexible uplink speeds (10G or 25G) provide headroom for high-bandwidth inter-switch connections to core AV switches or spine network infrastructure.
• Stackable Architecture — Multiple units can be combined into a unified AV network fabric, scaling from 24 to hundreds of PoE++ endpoints without redesigning the topology.
• AV-over-IP Optimized Management — VLAN, QoS, and traffic monitoring are configured with SDVoE and MXNet AV-over-IP requirements in mind, reducing commissioning time versus general enterprise switches.
• SDVoE & MXNet Evolution II Compatible — Validated for AVPro Edge's MXNet AV-over-IP platform and compatible with the broader SDVoE device ecosystem.
• Enterprise-Grade Network Standards — Built on commercial-grade network switch hardware with the reliability standards expected for permanent AV infrastructure installations.
• 1U Rack-Mount Form Factor — Integrates directly into standard 19" AV or IT equipment racks alongside other AV infrastructure components.
• Single-Cable AV Endpoint Connectivity — Powers and connects AV endpoints over a single Cat cable run, simplifying installation in ceiling, wall, and rack locations.

Typical Applications

• AV-over-IP deployments with PoE++-powered PTZ cameras and video conferencing endpoints
• Corporate conference rooms and collaboration spaces with 10G AV-over-IP distribution
• Digital signage networks requiring powered media players over a single Cat cable
• University campuses with distributed AV-over-IP lecture capture and content distribution
• Houses of worship with ceiling-mounted cameras and multi-zone AV distribution
• Healthcare facilities integrating AV-over-IP display distribution with PoE-powered devices
• Command centers and control rooms with multiple AV-over-IP sources and displays
• Sports and entertainment venues with distributed camera and display systems

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does every copper port support PoE++, or only select ports?

PoE++ (IEEE 802.3bt) is supported on all 24 copper ports. There is no subset of PoE-capable ports — every connected endpoint can receive power over the Cat cable connection, up to the switch's total PoE power budget.

Can I use this switch with non-AVPro Edge SDVoE devices from other manufacturers?

Yes. The AC-MXNET-10G-SW24C operates as a standard managed Ethernet switch and is compatible with any SDVoE-certified encoder, decoder, or endpoint that requires a 10G network connection. It is purpose-validated for MXNet Evolution II but works within the broader SDVoE ecosystem.

How does stacking work, and what is the maximum number of units that can be combined?

The stackable design uses the SFP28 uplink ports for inter-switch connections, allowing multiple AC-MXNET-10G-SW24C units to operate as a unified network fabric. For maximum validated stack configurations for your specific deployment, contact your AVPro Edge distributor or Creation Networks.

Can this switch be paired with the AC-MXNET-10G-SW48Q core switch in the same AV-over-IP network?

Yes. The AC-MXNET-10G-SW24C is designed to function as an access-layer switch connecting PoE++ AV endpoints, with the 25G SFP28 uplinks connecting to the AC-MXNET-10G-SW48Q core switch via its 40G QSFP+ ports (with appropriate transceivers). This is a common deployment topology for large AV-over-IP installations.

What VLAN and multicast configuration is required for AV-over-IP traffic?

AV-over-IP operation requires 802.1Q VLAN configuration for traffic segmentation and IGMP snooping for multicast management. AVPro Edge provides network configuration guidance specific to MXNet deployments. Standard SDVoE network configuration guidelines apply for third-party SDVoE devices.

What warranty applies to the AC-MXNET-10G-SW24C?

Contact Creation Networks for current AVPro Edge warranty terms and support coverage applicable to your purchase. AVPro Edge products are supported through authorized distribution channels.
