AVPro Edge 24 port 2 channel audio matrix with dual AEX inputs and outputs

Product Overview

The AVPro Edge AC-MAX-24 is a 24-port, 2-channel audio matrix designed for large commercial installations that require structured, multi-zone audio distribution using AVPro Edge’s AEX (Audio Extension) infrastructure. Each of the 24 ports carries 2 channels of audio, and the unit includes dual AEX inputs and dual AEX outputs for integration with other AVPro Edge AEX-compatible devices. It is the highest port-count audio matrix in the AVPro Edge AEX lineup, making it the primary choice for venues and facilities that need to distribute audio across 24 independent zones from a centralized rack location. Target applications include conference centers, hospitality properties, houses of worship, and multi-room commercial audio installations.

Product Description

The AC-MAX-24 operates as the routing core of an AEX-based audio distribution system. AEX (Audio Extension) is AVPro Edge’s proprietary audio-over-Cat-cable protocol, allowing audio signals to be transmitted long distances over standard structured cabling infrastructure already present in most commercial buildings.

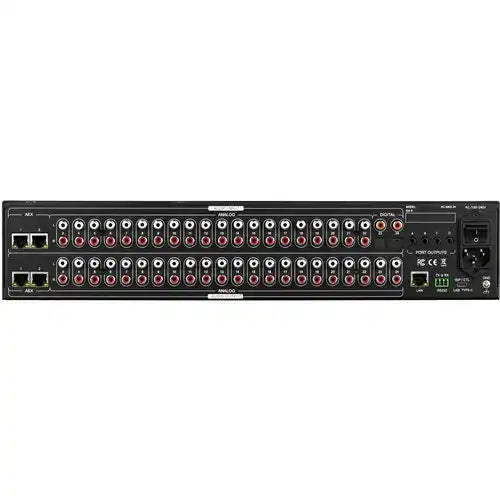

With 24 ports and 2 channels per port, the matrix provides up to 48 independent audio channel paths. Dual AEX inputs allow two separate audio sources or zones to feed into the matrix from external AEX-compatible transmitters, while dual AEX outputs enable the matrix to connect downstream to additional AEX-compatible amplifiers, receivers, or extension devices. This bidirectional AEX connectivity makes the AC-MAX-24 a central hub in larger distributed audio architectures.

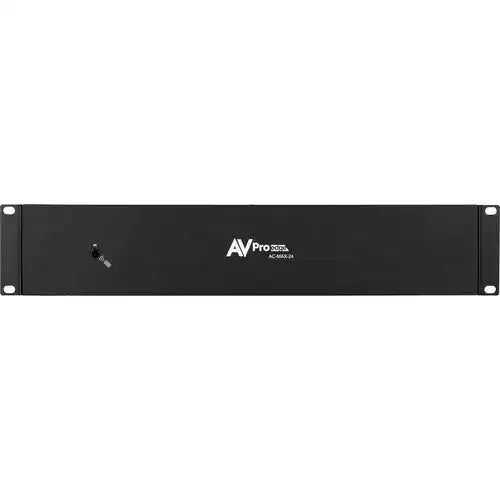

Control is available from the front panel for local operation and via network interface for integration into control systems. The unit is rack-mountable, fitting into standard AV equipment racks alongside amplifiers, signal processors, and other distribution hardware.

Key Features

• 24 AEX Ports — the highest port-count audio matrix in the AVPro Edge AEX product line, supporting up to 24 independent audio zones.
• 2 Channels Per Port — each port carries stereo (2-channel) audio, enabling left/right channel distribution to each zone.
• Dual AEX Inputs — two AEX inputs allow connection from external AEX-compatible audio sources or transmitters.
• Dual AEX Outputs — two AEX outputs connect downstream to additional AEX-compatible amplifiers or receivers.
• AEX Protocol — uses AVPro Edge’s Audio Extension protocol for reliable, long-distance audio transmission over Cat cable.
• Front Panel Control — direct local control without requiring a network connection or control system.
• Network Control Interface — integrates with third-party control systems via IP for automated routing and zone management.
• Rack-Mountable — standard rack chassis for installation in centralized AV equipment racks.
• Compatible with AVPro Edge AEX Ecosystem — works with AC-MAX-8, AC-MAX-12, AEX transmitters, receivers, and amplifiers in the AVPro Edge lineup.

Typical Applications

• Conference centers requiring independent audio routing to 24 or more meeting rooms
• Hospitality properties distributing background music and announcements to guest areas and back-of-house zones
• Houses of worship with complex multi-zone audio requirements across sanctuary, overflow, lobby, and support spaces
• Multi-tenant office buildings with centralized audio distribution to individual tenant spaces
• Retail chains requiring consistent background audio across multiple departments or store sections
• Universities and schools distributing audio across classrooms, common areas, and administrative zones

Technical Specifications

Frequently Asked Questions

What cable type is used for AEX connections?

AEX runs over standard Cat5e or Cat6 cable, the same structured cabling used for data networks. This allows integrators to leverage existing building cabling infrastructure in retrofit installations, reducing cable installation costs.

Can the AC-MAX-24 be mixed with AC-MAX-8 or AC-MAX-12 units in the same system?

Yes. AVPro Edge’s AEX product line is designed for compatibility across the AC-MAX product family. Multiple matrix units can be interconnected using AEX connections to scale a system beyond 24 zones or to distribute routing across multiple rack locations.

Does each port support independent audio routing, or are all ports tied to the same source?

The AC-MAX-24 is a matrix, meaning each port can be independently routed to a different audio source. This is what distinguishes it from a simple distribution amplifier, where all outputs carry the same signal.

Is the AC-MAX-24 compatible with amplifiers from other manufacturers?

The AEX protocol is proprietary to AVPro Edge. AEX outputs are designed to connect to AVPro Edge AEX-compatible receivers and amplifiers. Direct connection to non-AEX amplifiers requires a compatible AEX receiver or adapter at the endpoint.

What control system integration is supported?

The unit supports network (IP) control for integration into Crestron, Control4, Savant, AMX, and similar platforms. Front panel control is also available for direct local operation. AVPro Edge provides control documentation for third-party integration.
