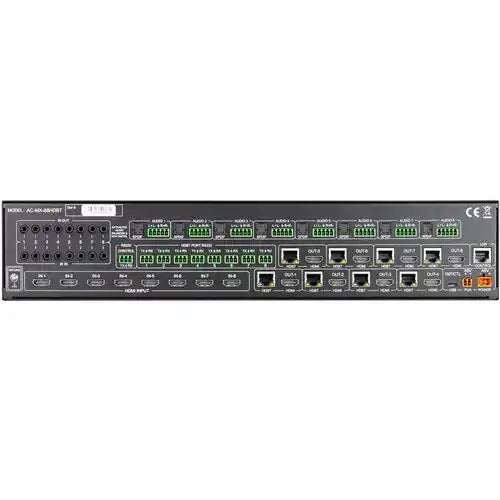

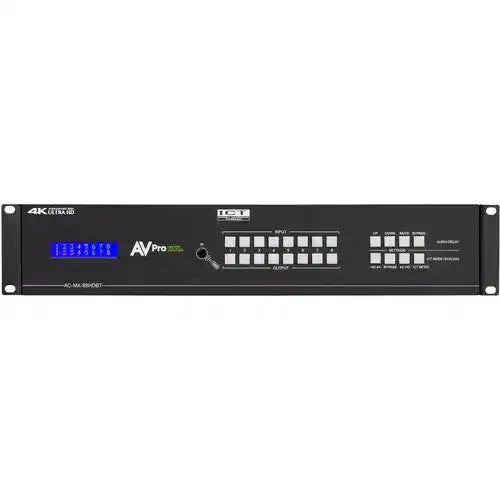

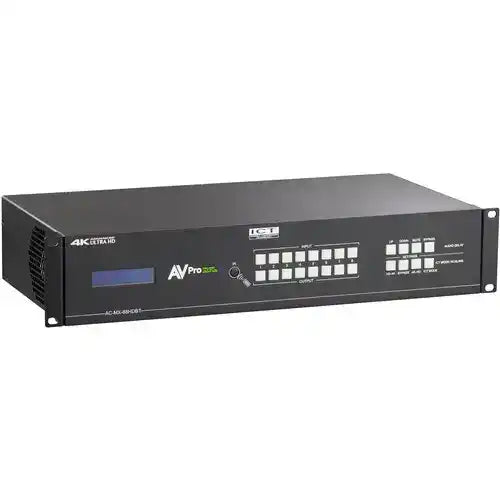

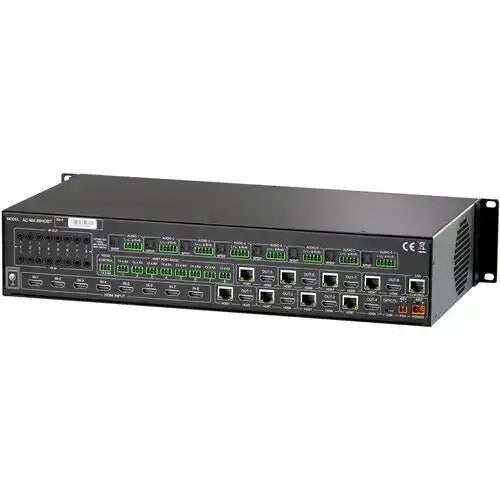

AVPro Edge 18Gbps HDMI 8x8 Matrix w/ Dual Audio Deembedding/Matrix with built in scalers and audio delay (Full HDR, 4K60 4:4:4); Updated EDID management and Audio Features

Product Overview

The AVPro Edge AC-MX-88 18Gbps HDMI 8x8 matrix switch delivers professional-grade video routing with integrated output scaling, dual audio de-embedding, an independent audio matrix, and per-output audio delay — handling both video distribution and audio management in a single chassis. With 4K@60Hz 4:4:4 signal integrity, full HDR support, and updated EDID management, this matrix is specified for corporate AV, higher education, broadcast, and multi-room commercial installations where source routing flexibility and audio independence are both required. At $6,109, the AC-MX-88 consolidates functionality that would otherwise require separate matrix, scaler, de-embedder, and audio delay hardware.

Product Description

The AC-MX-88 provides fully non-blocking 8x8 HDMI routing, meaning any input can be routed to any output or multiple outputs simultaneously without signal contention. The 18Gbps bandwidth handles the complete HDMI 2.0 signal specification — including 4K@60Hz with 4:4:4 chroma subsampling, HDR10, HLG, and Dolby Vision — across all eight inputs and outputs without downsampling or format conversion at the matrix level.

Each output port includes a built-in independent scaler, removing the need for external scaling hardware when the installation includes displays of different native resolutions. A corporate deployment might route a 4K60 laptop source to a 4K boardroom display on one output while the same source feeds a 1080p overflow display on another — the per-output scaler handles the conversion transparently.

The dual audio de-embedding extracts audio from two HDMI inputs simultaneously, feeding the internal audio matrix which routes extracted and analog audio signals to output zones independently from the video path. Per-output audio delay configuration addresses lip-sync issues common in systems with variable processing latency. Updated EDID management assigns specific EDID profiles to each input port, ensuring sources always negotiate the correct resolution and audio capability regardless of what is connected at the output side.

Key Features

• 8x8 Non-Blocking HDMI Matrix — Any input routes to any output or multiple outputs simultaneously; supports full matrix and mirrored configurations without signal compromise.
• 18Gbps Full HDMI 2.0 Bandwidth — Passes 4K@60Hz 4:4:4, HDR10, HLG, and Dolby Vision on all inputs and outputs without format downgrade.
• Per-Output Built-In Scalers — Eight independent output scalers accommodate mixed-resolution display environments without external scaling hardware.
• Dual HDMI Audio De-Embedding — Simultaneously extracts audio from two HDMI inputs for independent routing through the internal audio matrix.
• Independent Audio Matrix — Routes de-embedded and analog audio signals to output zones separately from video, enabling zone-specific audio configurations.
• Per-Output Audio Delay — Adjustable delay per output zone corrects lip-sync issues in systems where processing introduces variable latency.
• Updated EDID Management — Per-input EDID profile assignment ensures sources negotiate the correct resolution and audio format persistently.
• HDCP 2.2 / 1.4 Full Compliance — Distributes HDCP-protected 4K content to all eight outputs with proper key management.
• TCP/IP and RS-232 Control — Open ASCII command protocol compatible with Crestron, AMX, Extron, Savant, Control4, and custom control systems.
• Rack-Mountable Professional Chassis — Fits standard 19-inch AV racks; suitable for equipment room and head-end closet installation.

Typical Applications

• Corporate boardrooms and multi-room conference suites requiring flexible source routing to multiple displays
• University lecture halls and collaborative learning spaces with mixed 4K and 1080p display infrastructure
• Broadcast and production facilities routing 4K HDR sources with simultaneous audio extraction
• House of worship auditoriums managing multiple video sources with independent audio zone control
• Hotel conference and ballroom facilities with room-divider configurations requiring split routing
• Government and courtroom AV installations requiring reliable, manageable HDMI matrix switching
• Multi-zone commercial installations combining video distribution with independent audio routing per zone

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between this unit and the other AC-MX-88 listing?

Both listings represent the AVPro Edge 18Gbps HDMI 8x8 Matrix. If you have questions about specific SKU differences, kit inclusions, or regional variants, contact the Creation Networks sales team for clarification before ordering.

Can I route one input to all eight outputs simultaneously?

Yes. The non-blocking matrix supports routing a single input to all eight outputs simultaneously — useful for distributing a single source across an entire venue while other inputs remain available for individual zone routing.

How does the audio matrix differ from the video matrix?

The audio matrix is an independent routing layer that handles de-embedded HDMI audio and analog audio signals separately from the video path. You can route audio from a different source than the video on any given output zone — for example, playing background music audio on a zone while displaying a video from a different input.

Is third-party control system integration supported?

Yes. The matrix uses an open ASCII command protocol over TCP/IP and RS-232. Control drivers can be developed for or obtained for Crestron, AMX, Extron, Savant, Control4, and similar platforms. Contact AVPro Edge or Creation Networks for driver support.

What EDID profiles are available for input assignment?

The unit stores standard EDID profiles covering common resolution and audio format combinations. Per-input EDID assignment is configured through the control interface. Specific available profiles are documented in the product manual.

Does the matrix support 4K content with HDR from streaming devices and Blu-ray players?

Yes. The 18Gbps bandwidth and HDCP 2.2 support cover the requirements for 4K HDR10 and Dolby Vision content from streaming media players, UHD Blu-ray players, and broadcast sources.
