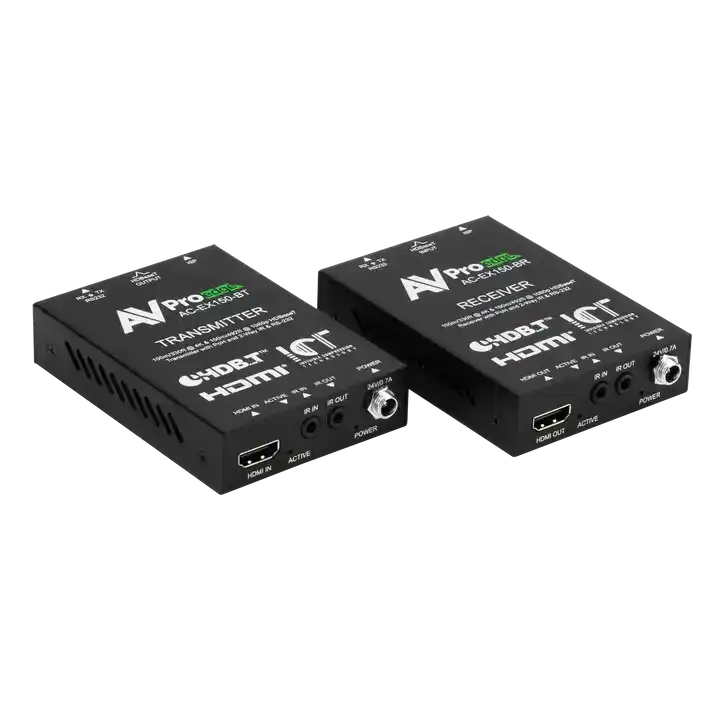

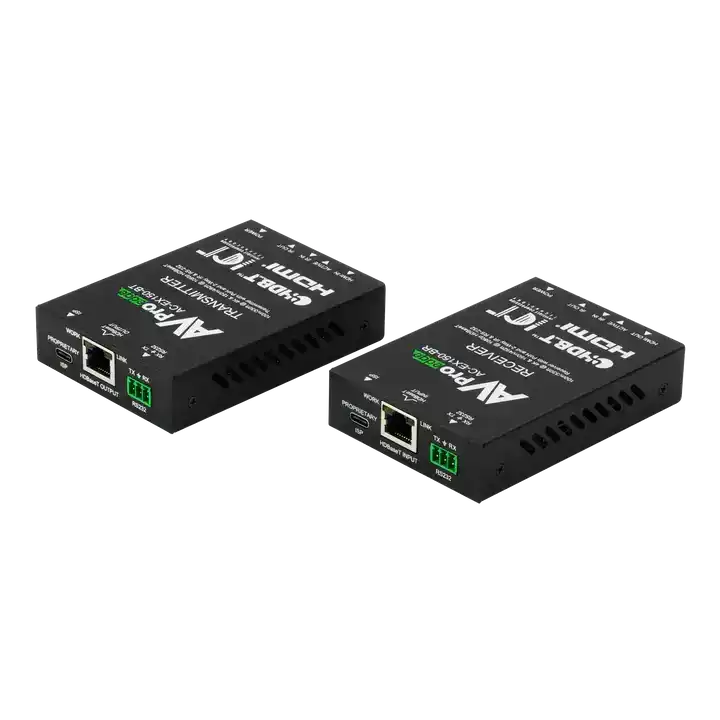

AVPro Edge 150 Meter 4K HDMI Extender Kit over Category Cable, with both RX and TX units

Overview

The AVPro Edge 150 Meter 4K HDMI Extender Kit extends a single HDMI 2.0 source up to 150 meters (492 feet) over a single CAT5e or CAT6 cable. The kit ships with both the transmitter (TX) and receiver (RX) units, making it a complete, ready-to-install solution for long-haul HDMI runs in commercial facilities. At full 4K60 4:4:4 resolution with HDR and HDCP 2.2 compliance, it is suited to demanding applications where signal integrity over extended cable runs is a requirement, not an option.

Description

Running HDMI natively beyond 15 meters without signal degradation is impractical. Category cable infrastructure, by contrast, is present in virtually every commercial building and can span hundreds of meters without repeaters when used with active HDBaseT or proprietary extender technology. The AVPro Edge 150M kit uses active equalization and encoding over CAT5e/6 to maintain full 4K60 4:4:4 bandwidth across the full 150-meter span — a distance no passive HDMI cable can approach.

The TX unit connects to the HDMI source — media player, PC, or matrix output — via standard HDMI. A single structured cable run carries the signal to the RX unit, which outputs HDMI to the display or projector. Both units are powered via included AC adapters. IR and RS-232 pass-through are available for display control from the source location, eliminating the need to run separate control wiring.

Key Features

• 4K60 4:4:4 resolution at full 150 meters over CAT5e/6 — no resolution downgrade at distance
• Complete kit: both TX and RX units included, ready to install out of the box
• HDR10, HLG, and Dolby Vision pass-through with full HDCP 2.2 compliance

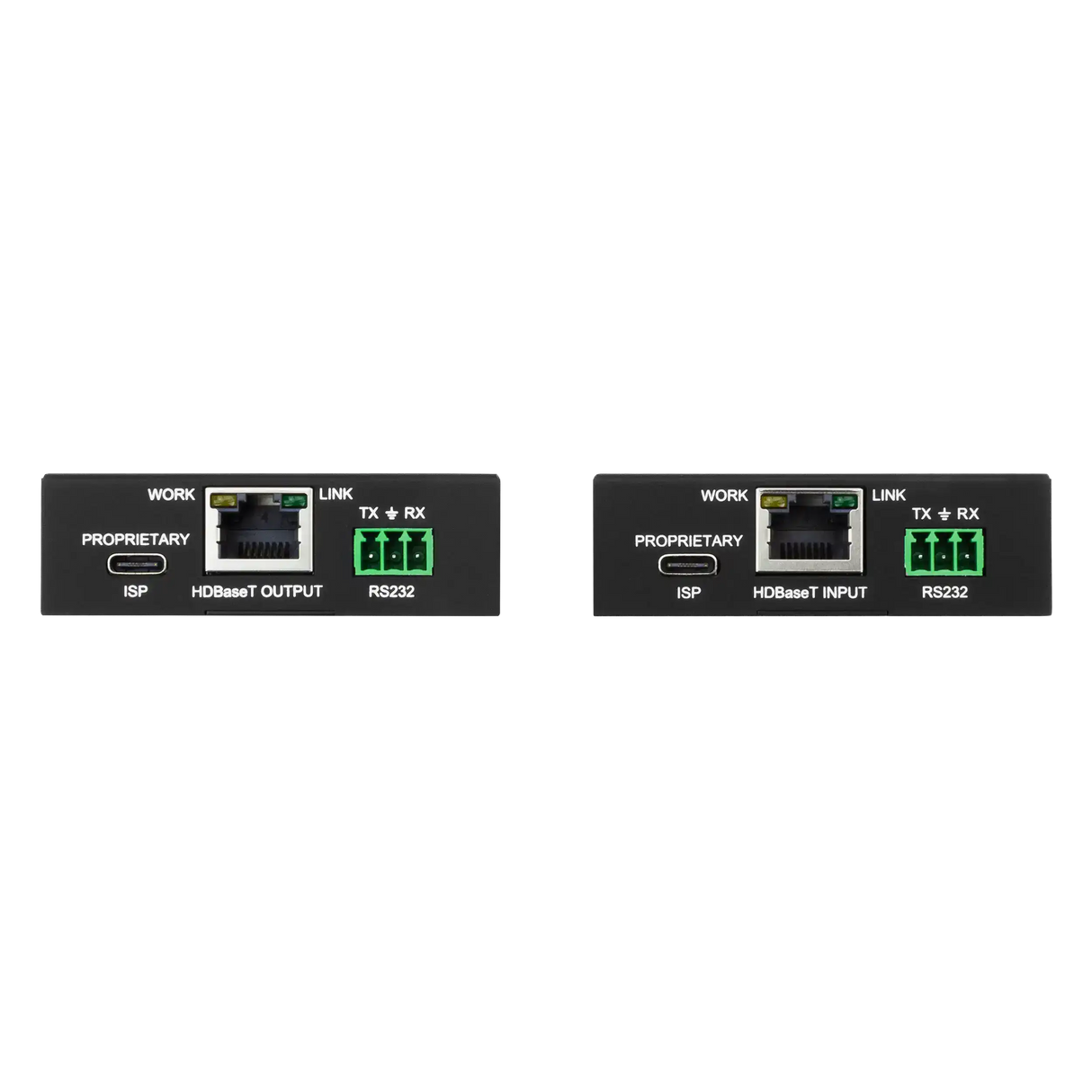

• IR and RS-232 pass-through for bidirectional display control over the same cable run
• Compatible with CAT5e, CAT6, and CAT6A structured cabling
• Plug-and-play operation — no configuration software or IP addressing required
• Compact, low-profile enclosures suitable for above-ceiling or behind-display mounting

Typical Applications

• Large-format conference rooms and boardrooms with ceiling-mounted projectors
• Lecture halls and auditoriums requiring source-to-display runs exceeding 50 meters
• Digital signage installations in large retail, transportation, and hospitality environments
• Houses of worship with distant screens or rear-lobby overflow displays
• Healthcare facilities connecting nurse stations to patient room displays
• Sports venues and large event spaces with remote display locations

Technical Specs

Competitor Comparison

Frequently Asked Questions

Does CAT5e cable support the full 150-meter distance at 4K60?

CAT5e will work for many installations, but CAT6 or CAT6A is recommended for maximum reliability at the full 150-meter distance, particularly in environments with electrical interference.

Is this kit compatible with HDMI 2.1 sources?

The kit supports HDMI 2.0 signals up to 4K60 4:4:4. HDMI 2.1 features such as 8K or 4K120 are not supported. For 48Gbps HDMI 2.1 extension, AVPro Edge offers dedicated 48Gbps extender products.

Can I use it with a matrix switcher output?

Yes. Any HDMI output — from a matrix, switcher, media player, or computer — can connect to the TX unit. The TX accepts any HDMI 2.0-compliant source.

Does the RX unit support audio de-embedding?

Audio de-embedding capability depends on the specific model variant. Consult the product datasheet or contact Creation Networks for confirmation on the specific SKU.
