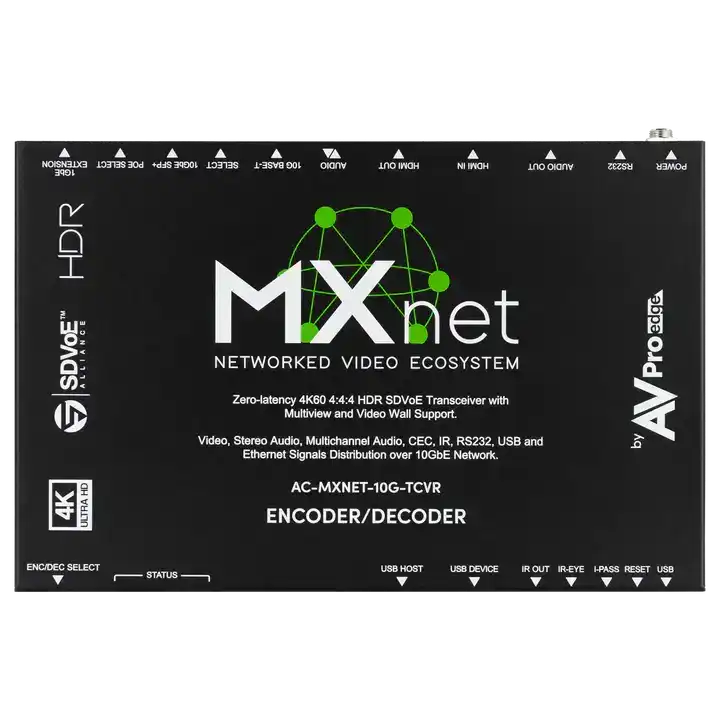

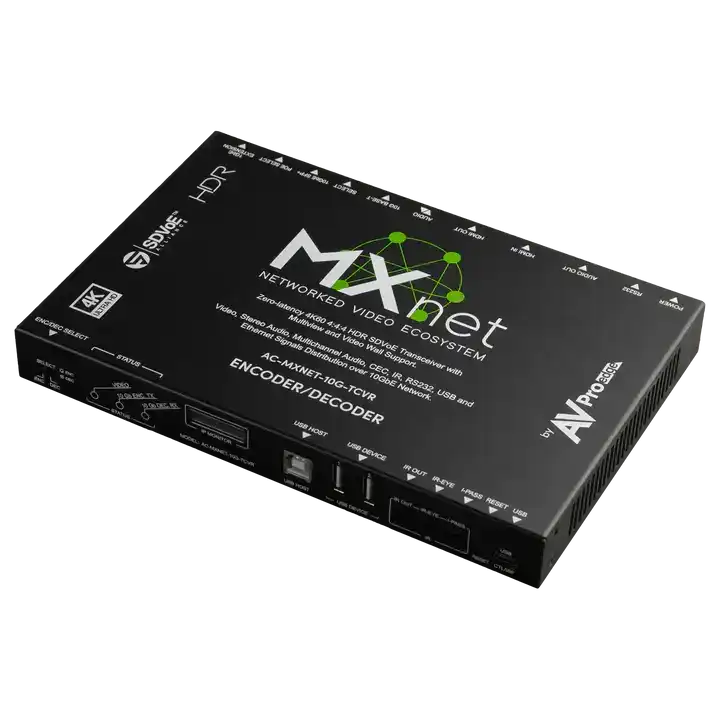

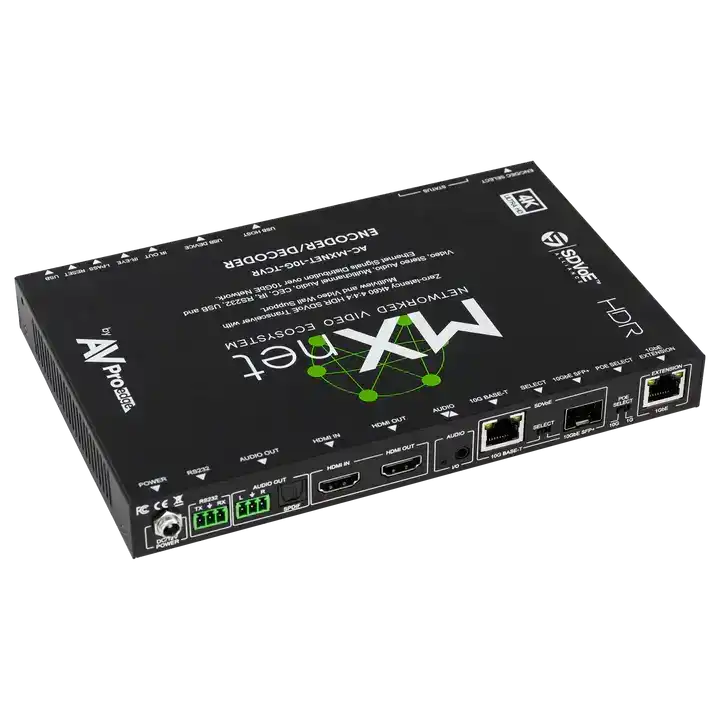

AVPro Edge 10G SDVOE 4K HDMI AV-over-IP PoE Transceiver (Encoder/Decoder) with the ICRON USB and Dante Modules

Product Overview

The AVPro Edge AC-MXNET-10G-TCVR-PRO is a 10G SDVoE AV-over-IP transceiver that functions as both an encoder and decoder, supporting 4K60 4:4:4 HDMI video distribution over standard 10 Gigabit Ethernet infrastructure. It includes integrated ICRON USB extension and Dante audio networking modules, making it one of the few AV-over-IP transceivers that consolidates video, USB peripheral distribution, and professional Dante audio in a single PoE-powered unit. For system designers specifying a 10G SDVoE encoder decoder with Dante audio and USB extension, this unit eliminates the need for separate USB extenders and audio DSP hardware. It is well-suited for enterprise conference rooms, higher education AV-over-IP systems, and broadcast facilities requiring converged AV, USB, and audio over a single network.

Product Description

The AC-MXNET-10G-TCVR-PRO operates within AVPro Edge’s MXNET ecosystem and is also SDVoE-compatible, giving integrators the choice of using proprietary MXNET management software or the open SDVoE API for control and routing. The unit can be configured as an encoder (source side) or decoder (display side) without hardware changes, reducing spare parts inventory for large installations.

The ICRON USB module extends USB 2.0 peripherals — such as cameras, microphones, and touch panels — across the same 10G network fabric as the video signal, with no separate USB-over-IP hardware required. The Dante module integrates the unit directly into Dante audio networks, allowing audio routing to be managed in Audinate’s Dante Controller alongside video routing in MXNET or SDVoE.

Power over Ethernet (PoE) simplifies installation by eliminating the need for a local power outlet at each encoder or decoder location. The unit is compatible with standard 10G PoE switches, reducing cabling runs to a single Cat6A or fiber connection per endpoint.

Key Features

• SDVoE 10G AV-over-IP — distributes 4K60 4:4:4 video over standard 10 Gigabit Ethernet with near-zero latency.
• Encoder and Decoder in One Unit — the same hardware serves as either a source encoder or display decoder, reducing inventory complexity.
• ICRON USB Module Included — extends USB 2.0 peripherals across the network without separate USB extender hardware.
• Dante Audio Module Included — full Dante audio network integration for multi-channel audio routing alongside video.
• PoE Powered — a single 10G PoE connection provides both data and power, simplifying endpoint installation.
• MXNET and SDVoE Ecosystem Compatible — works within AVPro Edge’s MXNET management platform and supports the open SDVoE API.
• 4K60 4:4:4 HDR Support — full color-depth, full-frame-rate 4K with HDR pass-through.
• Web GUI and API Control — supports web-based management, IP API, RS-232, and CEC for integration into control systems.
• 1 x HDMI 2.0 Input and Output — standard HDMI connectivity at both the source and display endpoints.

Typical Applications

• Enterprise conference rooms and collaboration spaces requiring converged video, USB, and audio over IP
• University AV-over-IP distribution systems across multiple buildings on a 10G campus network
• Broadcast and production facilities needing SDVoE distribution with Dante audio integration
• Control rooms where operators require USB peripheral access at remote KVM endpoints
• Houses of worship and large venues distributing 4K video with synchronized Dante audio to multiple zones
• Government and healthcare facilities consolidating AV infrastructure onto existing 10G network infrastructure

Technical Specifications

Competitor Comparison

The following table compares the AC-MXNET-10G-TCVR-PRO against two competing 10G AV-over-IP solutions commonly evaluated for enterprise and broadcast deployments.

Frequently Asked Questions

Does the unit come with both the ICRON USB and Dante modules, or are they sold separately?

This SKU (AC-MXNET-10G-TCVR-PRO) includes both the ICRON USB module and the Dante audio module as part of the package. Lower-tier MXNET transceiver SKUs are available without one or both modules at a lower price point.

What switch is required for a 10G SDVoE deployment?

A managed 10G Ethernet switch with multicast support (IGMP snooping) is required. The switch must support 10G PoE if PoE powering of the transceivers is desired. AVPro Edge provides a list of tested and recommended switches for MXNET deployments.

Can the unit be converted from encoder to decoder in the field?

Yes. The same hardware unit functions as either an encoder or decoder based on software configuration. This is managed through the MXNET Manager software or the SDVoE API without any physical changes to the hardware.

Is the Dante audio module compatible with the full Dante ecosystem?

Yes. The integrated Dante module is a licensed Dante implementation, meaning it appears as a standard Dante device in Audinate’s Dante Controller and is compatible with any other Dante-enabled hardware or software on the same network.

What USB devices are supported by the ICRON USB module?

The ICRON USB 2.0 module supports most USB HID devices (keyboards, mice, touchscreens), USB audio devices, and USB cameras. USB 3.0 devices are not supported by the USB 2.0 module. Check AVPro Edge’s compatibility documentation for specific device classes.
