Product Overview

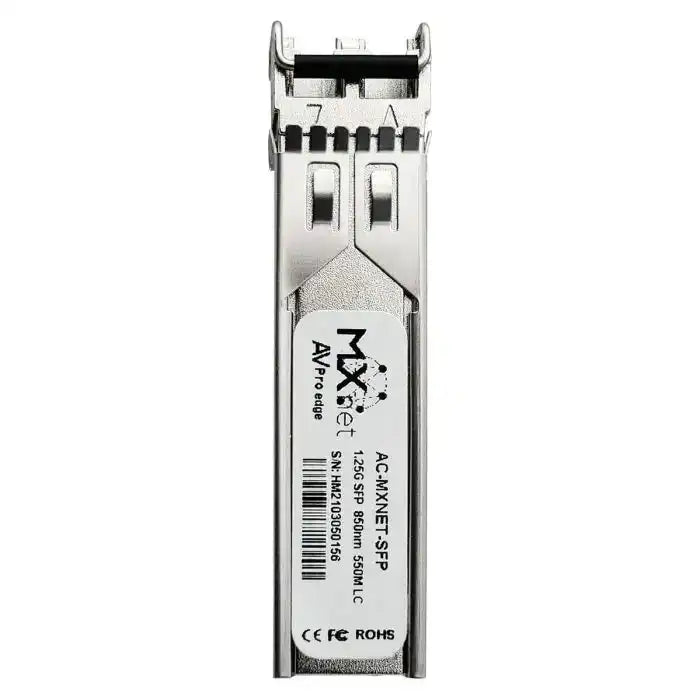

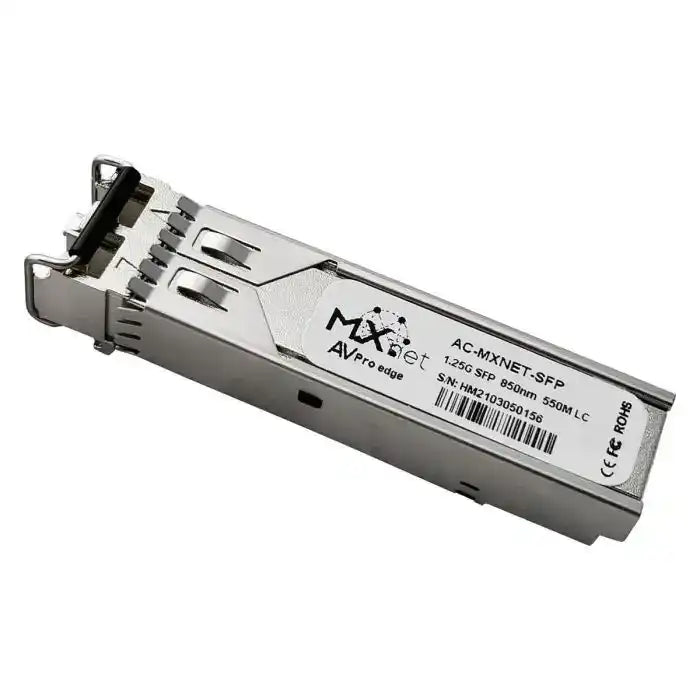

The AVPro Edge AC-1G-SFP-MM is a 1.25 Gigabit multi-mode fiber SFP transceiver for AVPro Edge equipment with 1G SFP ports. Operating at 850nm with an LC interface, it supports standard 1000Base-SX connections over OM1/OM2/OM3 multi-mode fiber up to 550 meters.
Product Description
The AC-1G-SFP-MM plugs into any standard 1G SFP port on compatible AVPro Edge switches or extenders and provides an 850nm VCSEL-based optical interface via LC duplex connector. It is rated for 1000Base-SX operation with a maximum reach of 550 meters on OM3 multi-mode fiber, making it suitable for runs within buildings and across campus segments where copper cannot reach. This transceiver follows the SFP MSA standard and is validated for use with AVPro Edge equipment.
Key Features
- 1.25G / 1000Base-SX — Standard Gigabit Ethernet over multi-mode fiber.
- 850nm Wavelength — VCSEL-based optics compatible with standard multi-mode fiber infrastructure.
- LC Duplex Connector — Industry-standard fiber interface for straightforward patching.
- 550m Maximum Reach — Supports long in-building and cross-building fiber runs on OM3 fiber.
- SFP MSA Compliant — Fits any standard 1G SFP port slot.
- AVPro Edge Validated — Tested for use with compatible AVPro Edge network equipment.
Technical Specifications
| Form Factor | SFP (1.25G) |
|---|---|
| Standard | 1000Base-SX |
| Data Rate | 1.25 Gbps |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode (OM1/OM2/OM3) |
| Connector | LC Duplex |
| Maximum Reach | 550m (OM3) |
