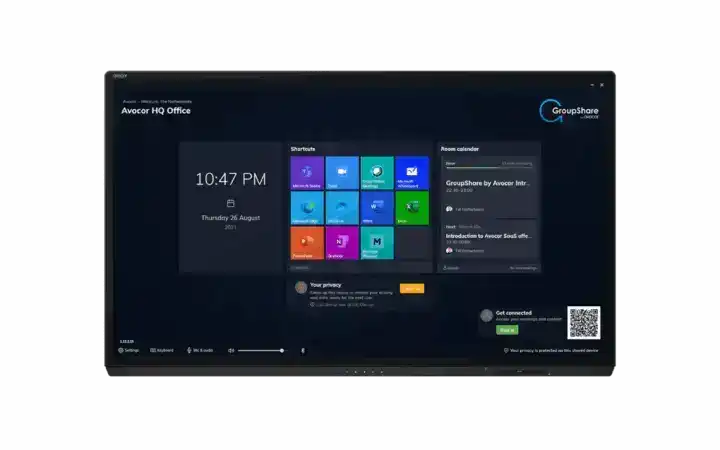

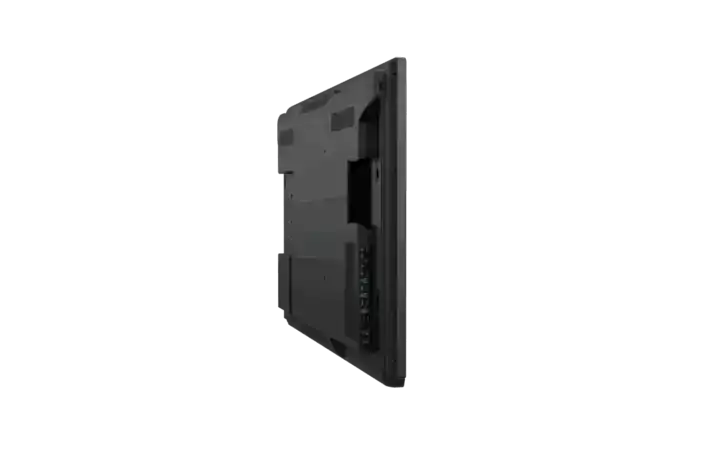

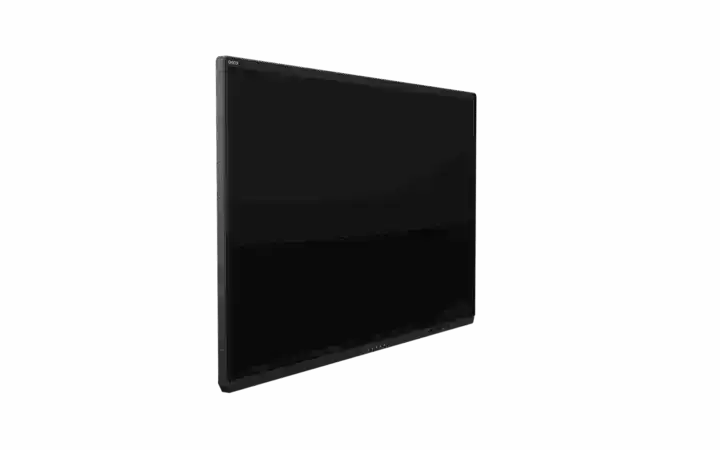

Avocor AVG-7560 – 75" 4K Interactive Touchscreen Display

The Avocor AVG-7560 is a 75-inch 4K interactive touchscreen display built for boardrooms and large conference rooms where teams annotate, present, and collaborate on a single screen. As the mid-size model in the Avocor G Series, it pairs a bezel-less design with ultra-fast InGlass touch and single-cable USB-C connectivity for commercial deployment.

Product Overview

The AVG-7560 75-inch commercial interactive touchscreen display delivers 3840 x 2160 4K UHD resolution at 60Hz with up to 20 simultaneous touch points and support for four fine-tip styluses. Zero-parallax bonded anti-glare glass gives ink-on-paper writing accuracy for whiteboarding and markup sessions. A single USB-C connection carries video, audio, touch, Ethernet, and 60W of power delivery, so a presenter connects a laptop with one cable. For AV integrators, an OPS slot, RS-232, and dual LAN ports make the display straightforward to fold into a controlled conference room AV system.

Product Description

Avocor designed the G Series for high-visibility executive and meeting spaces, and the 75-inch AVG-7560 hits the size most integrators specify for 8–12 person conference rooms. The direct-lit LED panel produces 500-nit brightness with a 5000:1 contrast ratio and 178-degree viewing angles, so content stays legible from every seat. Four rear-facing 10W spatial-stereo speakers and a four-element far-field beam-forming microphone array support video conferencing without immediately requiring external audio, while a presence sensor wakes the display when someone enters the room.

Connectivity is built for commercial AV integration: two HDMI 2.0 inputs, DisplayPort 1.2, HDMI out for a confidence or repeater display, USB-B touch ports for multiple connected PCs, and an OPS slot for an embedded Windows PC or room compute. Avocor FUSE cloud device management lets IT and facilities teams monitor and manage every display on the network remotely, and the UiQ touch interface gives users instant access to sources and tools. Need a different size for the room? The 65-inch Avocor AVG-6560 covers smaller conference rooms, and you can browse the full lineup in our Avocor collection.

Key Features

• 75-inch 4K UHD Panel — The 3840 x 2160 direct-lit LED panel at 60Hz keeps spreadsheets, drawings, and shared content sharp across the full screen.
• 20-Point InGlass Touch — Avocor InGlass M5 Intelligent Touch supports up to 20 touch points and four fine-tip styluses with palm rejection for natural, simultaneous multi-user annotation.
• Zero-Parallax Bonded Glass — Anti-glare, anti-fingerprint bonded glass eliminates the gap between pen tip and ink for precise writing.
• Single-Cable USB-C — One Type-C connection delivers video, audio, touch, Ethernet, and 60W power delivery to a presenter's laptop.
• Integrated Audio and Microphones — Four 10W spatial-stereo speakers and a far-field beam-forming microphone array handle room audio for everyday meetings.
• OPS Slot and Control Ports — An OPS slot, RS-232, IR input, and LAN in/out ports give integrators the hooks needed for room control systems and embedded compute.
• Presence Sensor — A wake-on-presence sensor with up to 3.5m range powers the display when people enter the room and saves energy when it sits idle.
• Avocor FUSE Management — Free cloud-based device management lets AV/IT teams update, monitor, and troubleshoot displays across the entire estate.

Typical Applications

• Boardroom presentations and annotation
• Conference room video collaboration for 8–12 participants
• Training room instruction and interactive whiteboarding
• Commercial meeting spaces with Teams, Zoom, or Google Meet room systems
• Multi-purpose rooms requiring a shared interactive surface

Technical Specifications

Frequently Asked Questions

Is the Avocor AVG-7560 compatible with Microsoft Teams Rooms and Zoom Rooms?

Yes. The AVG-7560 functions as the touch display in Teams Rooms, Zoom Rooms, and Google Meet deployments. Connect a certified room compute via HDMI or the OPS slot and pass touch back over USB-B; the InGlass touch system supports Windows, macOS, and Linux hosts.

Can one cable connect a presenter's laptop?

Yes. The USB-C input carries video, audio, touch, Ethernet, and 60W power delivery, so most laptops connect and charge over a single Type-C cable without a separate dock.

How is the AVG-7560 installed?

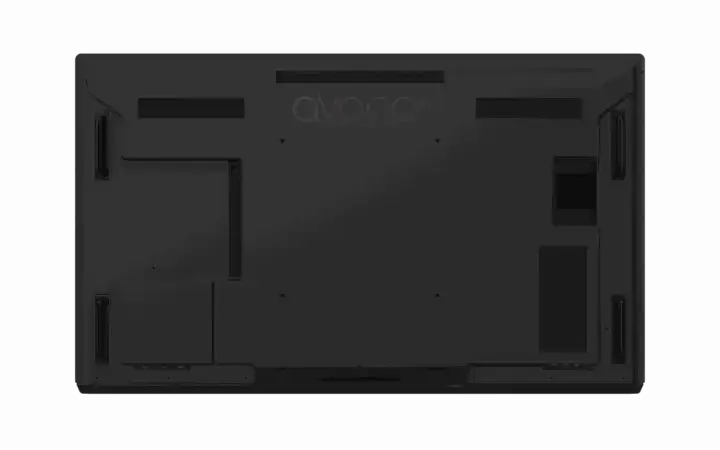

It wall-mounts on a 600 x 400mm VESA pattern and weighs 71.6kg (157.85 lbs), so plan for a commercial-grade mount and two-person (or lift-assisted) installation. Mobile stands with compatible VESA support are an alternative for flexible spaces. Creation Networks can quote nationwide installation.

Does it integrate with room control systems?

Yes. RS-232 and LAN in/out ports support control processors from Crestron, Extron, Q-SYS, and similar platforms, and the IR input allows external IR control where needed.

Can I add a built-in PC?

Yes. The OPS slot accepts a standard Open Pluggable Specification PC module, letting you run Windows-based collaboration or digital signage software without an external computer.

What warranty and support does it carry?

The AVG-7560 is covered by Avocor's global commercial warranty with North American support. Creation Networks assists with warranty claims, configuration, and ongoing AV system support for every display we sell.

See the complete lineup of interactive displays in our Avocor collection.
