Avocor AVG-6560 – 65" 4K Interactive Touchscreen Display

The Avocor AVG-6560 is a 65-inch 4K interactive touchscreen display sized for small to mid-size conference rooms, huddle rooms, and executive offices. It is the most compact model in the Avocor G Series, bringing the same bezel-less design, InGlass touch precision, and single-cable USB-C connectivity as its larger siblings into rooms where wall space is limited.

Product Overview

The AVG-6560 65-inch commercial interactive touchscreen delivers 3840 x 2160 4K UHD resolution at 60Hz, up to 20 touch points with palm rejection, and support for four fine-tip styluses. Its zero-parallax bonded anti-glare glass makes whiteboarding and document markup feel immediate and accurate. With a 60W power-delivery USB-C input, built-in spatial-stereo speakers, and a far-field microphone array, it serves as a self-contained interactive display for huddle room collaboration, while RS-232, dual LAN, and an OPS slot keep it ready for full conference room AV integration.

Product Description

For 2–8 person meeting spaces, a 65-inch interactive flat panel is the workhorse format, and the AVG-6560 is built for that daily duty cycle with a 16/7 rated direct-lit LED panel producing 500-nit brightness and a 5000:1 contrast ratio. The InGlass M5 Intelligent Touch system distinguishes pen, finger, and palm, so two or more participants can write simultaneously without false marks. A presence sensor wakes the display when someone walks in, which keeps ad-hoc huddle sessions friction-free and reduces idle power draw.

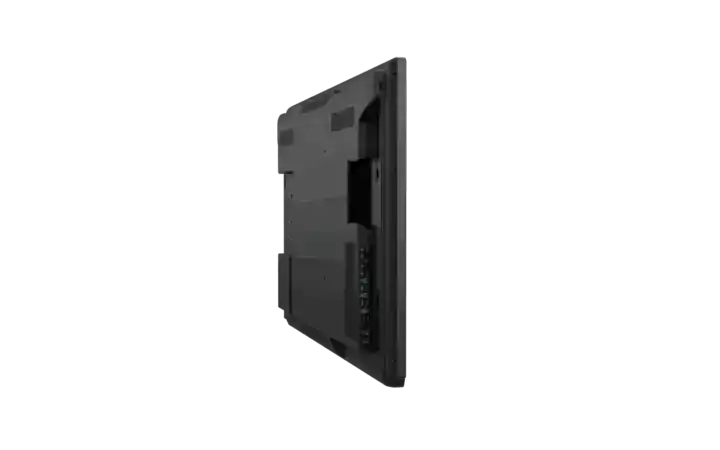

The I/O complement mirrors the rest of the G Series: two HDMI 2.0 inputs, DisplayPort 1.2, an HDMI output, USB-B touch connections for multiple PCs, a four-port USB-A hub, and an OPS slot for embedded room compute. Avocor's UiQ interface puts source switching and tools one tap away, and FUSE cloud management gives IT teams remote monitoring across the display fleet at no added license cost. If your room seats more people or sits farther from the screen, step up to the 75-inch Avocor AVG-7560, or compare the full range in our Avocor collection.

Key Features

• 65-inch 4K UHD Resolution — The 3840 x 2160 direct-lit LED panel renders fine text and detailed content clearly at typical small-room viewing distances.
• InGlass Touch with Palm Rejection — Up to 20 touch points and four fine-tip styluses let multiple users write at once while resting a palm on the glass.
• Zero-Parallax Bonded Glass — Anti-glare, anti-fingerprint bonded glass puts the ink directly under the pen tip for accurate annotation.
• USB-C with 60W Power Delivery — A single Type-C cable handles video, audio, touch, Ethernet, and laptop charging for walk-up presenters.
• Built-in Audio and Microphone Array — Four 10W spatial-stereo speakers and four far-field beam-forming microphones cover conferencing audio in smaller rooms without extra hardware.
• Lightest G Series Model — At 56kg (123.46 lbs) with a standard 400 x 400mm VESA pattern, the AVG-6560 is the easiest G Series display to mount and relocate.
• OPS Slot, RS-232, and LAN Control — Integrator-grade control and compute options support managed conference room AV systems.
• FUSE Cloud Management — Avocor's free remote management platform handles firmware, monitoring, and troubleshooting across every networked display.

Typical Applications

• Huddle room collaboration and ad-hoc whiteboarding
• Conference room video meetings for 2–8 participants
• Executive offices and focus rooms
• Training room breakout spaces
• Commercial meeting spaces standardizing on one display platform

Technical Specifications

Frequently Asked Questions

What room size suits the Avocor AVG-6560?

The 65-inch panel is the standard choice for huddle rooms and small to mid-size conference rooms seating roughly 2–8 people. For larger rooms or longer viewing distances, the 75-inch AVG-7560 keeps content legible from the back row.

Which video conferencing platforms work with it?

The AVG-6560 is platform-agnostic. It serves as the front-of-room touch display for Microsoft Teams Rooms, Zoom Rooms, and Google Meet hardware connected over HDMI or installed in the OPS slot, with touch returned over USB-B or USB-C.

Do I still need external speakers and microphones?

In smaller rooms, often not. The four 10W spatial-stereo speakers and far-field beam-forming microphone array handle typical huddle room conferencing. Larger or acoustically difficult rooms may still warrant a dedicated audio system, which Creation Networks can design.

How does installation work?

The display mounts on a standard 400 x 400mm VESA wall mount and weighs 56kg (123.46 lbs). It ships with power cords, USB-B, USB-C, and HDMI cables, and two styluses, so a typical wall installation is a half-day job for a two-person crew.

Can IT manage these displays remotely?

Yes. Avocor FUSE is a free cloud platform that lets AV and IT managers monitor status, push settings, and manage firmware across all networked Avocor displays from one dashboard.

What about warranty coverage?

The AVG-6560 ships with Avocor's global commercial warranty. Creation Networks supports registration, claims, and replacement logistics for the life of the display.

Browse more interactive and commercial displays in our Avocor collection.
