Avid NEXIS F5 NL 640TB Hardware only for Subscription
Avid NEXIS F5 NL 640TB Hardware only for Subscription is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Avid NEXIS F5 NL 640TB Hardware only for Subscription
Product Overview

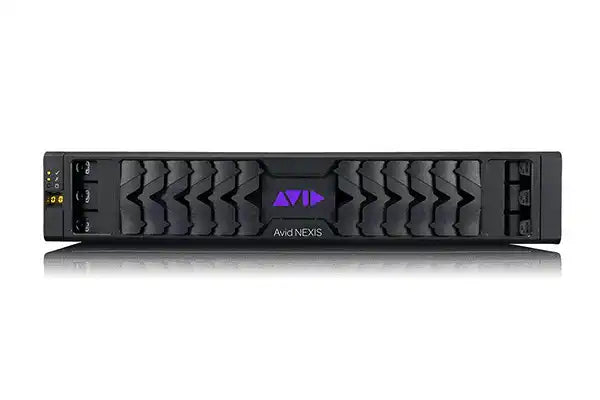

The Avid NEXIS | F5 NL 640TB Hardware Only for Subscription is a half-populated near-line NEXIS F5 storage engine configured for organizations operating under Avid subscription licensing. Equipped with four 160TB Near-Line HDD Media Packs, this system delivers 640TB of usable capacity optimized for high-capacity archive, nearline, and sequential access workflows, with in-chassis expansion to 1,280TB. Hardware Only configurations include no bundled support contract—support is provided through the customer's existing Avid subscription plan.
Product Description
The NEXIS F5 NL uses Near-Line HDD Media Packs—large-capacity drives optimized for cost-effective high-capacity storage and sequential throughput. Four 160TB NL packs deliver 640TB of usable nearline storage at a lower cost per terabyte than standard F5 configurations, with the chassis accepting four additional packs to reach 1,280TB without chassis replacement.
The F5 Controller ships with two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated) for 25GbE or 50GbE network connectivity. The included Avid NEXIS | FS license provides centralized workspace management and NLE integration. Dual 220V redundant power supplies and five cooling modules support continuous 24/7 operation. Rack-mount kit included.
Note: Avid NEXIS | SDA or SDA+ is required for all F5 configurations and is sold separately. This product does not include a bundled support contract. NL Media Packs are optimized for sequential and archive workloads; sustained random I/O performance differs from standard F5 configurations.
Key Features
- 640TB Expandable Near-Line Capacity — Four 160TB NL HDD Media Packs with in-chassis expansion to 1,280TB—no chassis replacement required.
- Cost-Effective Per-Terabyte Storage — NL Media Packs provide a lower cost per terabyte for large archive and nearline libraries.
- Sequential Access Optimized — NL Media Packs suited for archive, ingest, and nearline proxy workflows.
- 25/50GbE QSFP28 Connectivity — Two 40/50Gbps QSFP28 Ethernet interfaces (unpopulated).
- Avid NEXIS | FS License Included — Centralized file system management and workspace control.
- Redundant 220V Power Supplies — Dual PSUs for uninterrupted operation.
- Five Cooling Modules — Redundant cooling for continuous-duty deployments.
- Rack-Mount Kit Included — Standard 19-inch mounting hardware.
- Hardware Only for Subscription — No bundled support; for facilities with Avid subscription-based support coverage.
Typical Applications
- Broadcast media archive and nearline library
- Post-production proxy and finishing storage tier
- Multi-site production nearline hub
- Sports and news archive repositories
Technical Specifications
| Specification | Value |
|---|---|
| Model | Avid NEXIS | F5 NL (Near-Line) |
| Total Usable Capacity | 640TB |
| Media Pack Configuration | 4x 160TB Near-Line HDD Media Packs (half populated) |
| Maximum Expandable Capacity | 1,280TB (add 4x 160TB NL packs) |
| Media Pack Type | Near-Line HDD (sequential/archive optimized) |
| Network Interfaces | Two 40/50Gbps Ethernet QSFP28 (unpopulated) |
| Power Supply | Two 220V PSU (redundant) |
| Cooling | 5 cooling modules |
| Form Factor | Rack-mount (kit included) |
| Software Included | Avid NEXIS | FS license |
| Required Accessory | Avid NEXIS | SDA or SDA+ (sold separately) |
| Support | Hardware Only — support via Avid subscription agreement |
Frequently Asked Questions
Q: How does F5 NL differ from standard F5?
A: F5 NL uses Near-Line HDD Media Packs optimized for high-capacity sequential storage at a lower cost per terabyte. Best for nearline libraries, archives, and proxy workflows rather than heavy concurrent random I/O.
Q: Can I expand this to 1,280TB?
A: Yes. Adding four 160TB NL packs to the same chassis reaches 1,280TB. Contact Creation Networks for expansion guidance.
Q: What does Hardware Only for Subscription mean?
A: This configuration includes hardware and FS license but no bundled support contract. Support is provided through the purchaser's Avid subscription plan. Contact Creation Networks for bundled support options.
Q: Is SDA/SDA+ required?
A: Yes, sold separately. Contact Creation Networks for guidance.
