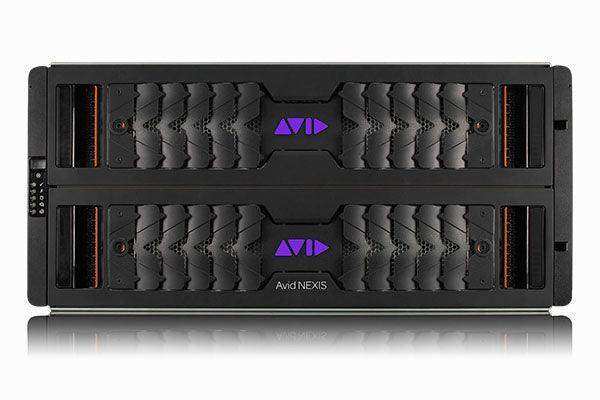

Avid NEXIS | F5 NL 640TB. 4x160TB Media Packs, includes two 16TB spare HDDs, Elite Support
Avid NEXIS | F5 NL 640TB. 4x160TB Media Packs, includes two 16TB spare HDDs, Elite Support is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Avid NEXIS | F5 NL 640TB. 4x160TB Media Packs, includes two 16TB sp...
Product Overview
The Avid NEXIS | F5 NL 640TB shared storage system is a high-density near-line storage engine designed for media organizations requiring large-capacity shared storage for archiving, nearline media libraries, and proxy-based collaborative workflows. Half-populated with four 160TB Near Line (NL) Media Packs, this configuration provides 640TB of usable capacity per chassis with room to expand to a fully populated 1,280TB configuration. This bundle includes Avid Elite Support—Avid's highest service tier—for mission-critical media archive and nearline production deployments.
Product Description
The Avid NEXIS | F5 NL 640TB delivers high-capacity near-line shared storage for organizations that need to manage large media libraries cost-effectively. Near-line HDDs offer greater storage density per Media Pack than standard enterprise drives, making NL configurations the preferred choice for nearline archive, browse-resolution proxy libraries, and media ingest workflows where sequential access is the primary requirement.
At 640TB, this half-populated configuration provides an economical entry into F5 NL capacity storage with a clear upgrade path—four additional 160TB NL Media Packs can expand the system to the full 1,280TB configuration without chassis replacement. The F5 Controller includes two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated), and the system integrates with Avid NEXIS | FS for centralized workspace management and multi-client shared access. Two 16TB spare HDDs are included for immediate hot-spare deployment.
Elite Support provides 24/7 telephone access to Avid technical engineers, priority hardware replacement, and top-priority escalation for NEXIS infrastructure issues. Note: Avid NEXIS | SDA or SDA+ is required for all F5 NL configurations and is sold separately.
Key Features
- 640TB Near-Line Capacity — Four 160TB NL Media Packs provide 640TB of usable near-line storage with expansion capability to 1,280TB by adding four additional packs.
- Near-Line HDD Media Packs — High-capacity near-line drives deliver maximum storage density and lower cost per terabyte for archive and nearline media workflows.
- Scalable to 1,280TB — Half-populated chassis allows four additional 160TB NL Media Packs to be added for a full 1.28PB configuration without chassis replacement.
- 25/50GbE QSFP28 Connectivity — F5 Controller includes two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated) for high-bandwidth network integration.
- Avid NEXIS | FS Integration — Centralized workspace management and multi-client shared access within the NEXIS file system.
- Two 16TB Spare Drives Included — Hot-spare HDDs included for immediate response to Media Pack drive failures.
- Rack-Mount Form Factor — Ships with rack-mount kit for standard 19-inch equipment rack installation.
- Elite Support — 24/7 telephone access, priority hardware replacement, and highest-priority technical escalation.
- E-Series Compatible — Integrates with existing NEXIS E-Series environments as a dedicated storage group.
Typical Applications
- Broadcast media archive and deep library nearline storage
- Post-production nearline and proxy media repository
- Government and agency long-term media retention and archive
- Multi-purpose production environment nearline content tier
- Training and education media library storage
Technical Specifications
| Specification | Value |
|---|---|
| Model | Avid NEXIS | F5 NL |
| Total Usable Capacity | 640TB |
| Media Pack Configuration | 4x 160TB Near Line (NL) Media Packs (half populated) |
| Maximum Expandable Capacity | 1,280TB (add 4x 160TB NL Media Packs) |
| Drive Type | Near Line HDD |
| Network Interfaces | Two 40/50Gbps Ethernet QSFP28 (unpopulated) |
| Spare Drives | Two 16TB HDDs |
| Form Factor | Rack-mount (kit included) |
| Software Included | Avid NEXIS | FS license |
| Required Accessory | Avid NEXIS | SDA or SDA+ (sold separately) |
| Support Level | Elite Support |
Frequently Asked Questions
Q: What is the difference between F5 NL and standard F5 Media Packs?
A: F5 NL Media Packs use near-line high-capacity HDDs for maximum storage density at a lower cost per TB. They are suited for nearline archive and media library workloads. Standard F5 packs deliver 480 MB/s per pack for active high-resolution editorial workflows.
Q: Can I expand the F5 NL 640TB to 1,280TB?
A: Yes. The half-populated chassis supports four additional 160TB NL Media Packs for a full 1,280TB configuration without chassis replacement. Contact Creation Networks for Media Pack pricing and expansion guidance.
Q: Is Avid NEXIS | SDA or SDA+ required?
A: Yes. SDA/SDA+ is required for all F5 NL configurations and is sold separately. Contact Creation Networks for SDA/SDA+ guidance.
Q: Can the F5 NL be used alongside standard F5 or All-Mirror engines?
A: Yes. NEXIS supports tiered storage environments where F5 NL engines serve as a nearline capacity tier alongside higher-performance F5 standard or All-Mirror engines, managed within a unified NEXIS FS file system.
Q: What network infrastructure is required?
A: The F5 NL Controller includes two 40/50Gbps QSFP28 interfaces (unpopulated). A 25GbE or 50GbE switch is recommended for optimal performance.
