Avid NEXIS | F5 Controller Elite Support
Product Overview

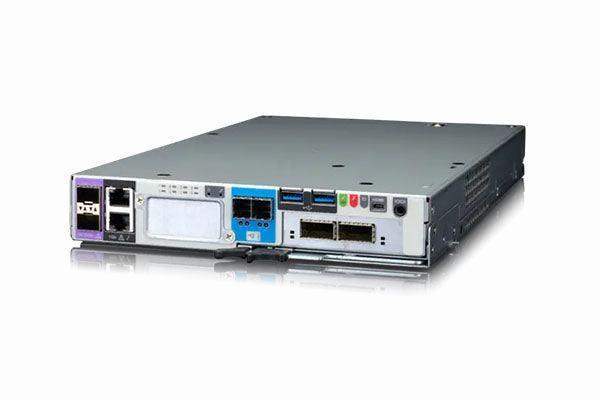

The Avid NEXIS | F5 Controller is the storage engine chassis and management head unit for the NEXIS F5 shared storage system, sold without Media Packs. The F5 Controller provides the compute, networking, and management infrastructure of the F5 platform—including two 40/50Gbps QSFP28 Ethernet interfaces, dual 220V redundant power supplies, five cooling modules, SSDs, and the Avid NEXIS | FS license—for facilities purchasing Media Packs separately or expanding an existing F5 deployment. This bundle includes Avid Elite Support—Avid's highest service tier.
Product Description
The Avid NEXIS | F5 Controller is the chassis-and-controller component of the NEXIS F5 storage platform, enabling facilities to acquire the storage head unit independently and populate it with Media Packs of their choice. The Controller chassis accepts up to eight Media Packs (HDD or NL) for a fully populated configuration, and supports half-populated deployments with four Media Packs and in-chassis expansion.
The F5 Controller includes two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated), dual 220V redundant power supplies, five cooling modules, SSDs for system metadata, and the Avid NEXIS | FS license. A rack-mount kit is included. The controller requires an Avid NEXIS | SDA or SDA+ System Director Appliance for operation, sold separately.
This option is suited for facilities purchasing Media Packs through separate procurement, upgrading from an older chassis, or standardizing on a controller-first deployment model.
Note: Media Packs and Avid NEXIS | SDA or SDA+ are required for a complete F5 system and are sold separately. Elite Support provides 24/7 telephone access, priority hardware replacement, and top-priority technical escalation.
Key Features
- F5 Controller Chassis — Accepts up to 8 Media Packs (HDD or NL) for half or fully populated configurations.
- 25/50GbE QSFP28 Connectivity — Two 40/50Gbps QSFP28 Ethernet interfaces (unpopulated) for 25GbE or 50GbE network integration.
- Avid NEXIS | FS License Included — Centralized file system management, workspace allocation, and bandwidth control.
- Redundant 220V Power Supplies — Dual PSUs for uninterrupted 24/7 production operation.
- Five Cooling Modules — Redundant cooling for continuous-duty rack-mount deployments.
- SSDs Included — Solid-state drives for file system metadata and cache performance.
- Rack-Mount Kit Included — Standard 19-inch mounting hardware included.
- Elite Support — 24/7 telephone access, priority hardware replacement, and highest-priority technical escalation.
Typical Applications
- Facilities purchasing F5 Media Packs through separate procurement
- E-Series to F5 chassis upgrade deployments
- Controller-first F5 deployment model
- Multi-engine NEXIS fabric expansion
Technical Specifications
| Specification | Value |
|---|---|
| Model | Avid NEXIS | F5 Controller |
| Media Pack Slots | Up to 8 (HDD or NL) |
| Media Packs Included | None (sold separately) |
| Network Interfaces | Two 40/50Gbps Ethernet QSFP28 (unpopulated) |
| Power Supply | Two 220V PSU (redundant) |
| Cooling | 5 cooling modules |
| SSDs Included | Yes (metadata/cache) |
| Form Factor | Rack-mount (kit included) |
| Software Included | Avid NEXIS | FS license |
| Required Accessories | Media Packs; Avid NEXIS | SDA or SDA+ (both sold separately) |
| Support Level | Elite Support |
Frequently Asked Questions
Q: What Media Packs are compatible with the F5 Controller?
A: The F5 Controller accepts all NEXIS F5 Media Packs: 60TB, 100TB, and 140TB HDD packs, and 160TB Near-Line packs. Contact Creation Networks for Media Pack recommendations.
Q: Is SDA/SDA+ required?
A: Yes. Avid NEXIS | SDA or SDA+ is required and sold separately. Contact Creation Networks for guidance.
Q: What is Elite Support?
A: Elite Support provides 24/7 telephone access, priority hardware replacement, and the highest-priority escalation. Recommended for 24/7 broadcast and production operations.
