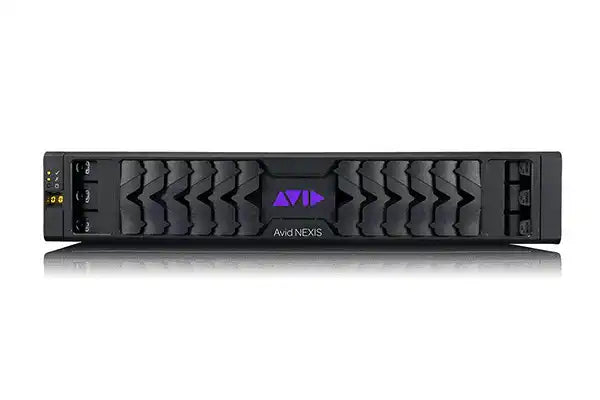

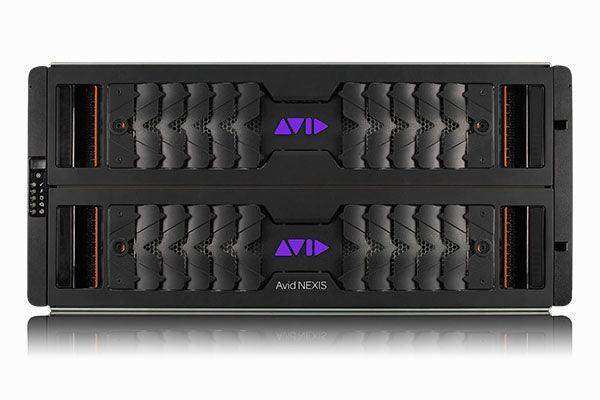

Avid NEXIS | F5 800TB, Fully populated 8x 100TB Media Packs, includes; two SSDs, two 10TB spare drives, two 220V PSU, 5 cooling modules, rack mount kit. Elite Support

Product Overview

The Avid NEXIS | F5 800TB shared storage system is a high-capacity enterprise storage engine designed for broadcast facilities, post-production studios, and media organizations requiring high-bandwidth collaborative access to 4K, HDR, and high-frame-rate content. Fully populated with eight 100TB HDD Media Packs, this system delivers up to 3.84 GB/s of aggregate bandwidth over 25/50GbE networking. This configuration includes Avid Elite Support—Avid's highest service tier—for mission-critical broadcast and production deployments.

Product Description

With 800TB of usable capacity across eight 100TB HDD Media Packs, the Avid NEXIS | F5 800TB provides the storage density and performance required for large editorial teams working simultaneously on high-resolution workflows. Each Media Pack delivers 480 MB/s of sustained bandwidth; eight packs together reach 3.84 GB/s aggregate—supporting a large number of concurrent edit streams without bandwidth contention.

The F5 Controller ships with two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated), enabling deployment on 25GbE or 50GbE production networks. The included Avid NEXIS | FS license provides centralized workspace management, user bandwidth controls, and native integration with Avid Media Composer, Pro Tools, Adobe Premiere Pro, Apple Final Cut Pro, DaVinci Resolve, and any NFS/SMB-compatible application.

Dual 220V redundant power supplies and five cooling modules support continuous 24/7 operation. Two 10TB spare drives are included for immediate hot-spare deployment. Two SSDs are included for NEXIS file system metadata and cache functions. The system ships with a rack-mount kit for standard 19-inch rack installation.

Note: Avid NEXIS | SDA or SDA+ is required for all F5 configurations and is sold separately. Drive slot covers are not required for F5 engine chassis. Elite Support provides 24/7 telephone access to Avid's senior technical team, priority hardware replacement, and top-priority escalation for system events.

Key Features

• 800TB Usable Capacity — Eight 100TB HDD Media Packs fully populate the F5 chassis, delivering enterprise-scale storage for large broadcast and post-production environments.
• 3.84 GB/s Aggregate Bandwidth — 480 MB/s per Media Pack across eight packs supports large numbers of concurrent high-resolution editing clients.
• 25/50GbE QSFP28 Connectivity — Two 40/50Gbps QSFP28 Ethernet interfaces (unpopulated) on the F5 Controller for high-bandwidth network integration.
• Avid NEXIS | FS License Included — Centralized storage management with per-user workspace allocation and bandwidth control.
• Redundant 220V Power Supplies — Dual PSU configuration for uninterrupted 24/7 production operation.
• Two 10TB Spare Drives — Hot-spare HDDs included for immediate response to Media Pack drive failures.
• Two SSDs Included — Solid-state drives for file system metadata and cache acceleration.
• Five Cooling Modules — Redundant cooling for continuous-duty rack-mount deployments.
• Rack-Mount Kit Included — Standard 19-inch hardware for immediate installation in equipment racks.
• Elite Support — 24/7 phone access, priority hardware replacement, and highest-priority technical escalation.
• E-Series Compatible — Integrates with existing NEXIS E-Series infrastructure; use as a dedicated storage group for full F5 bandwidth performance.

Typical Applications

• Broadcast production facility shared storage
• Post-production house 4K/8K collaborative editorial
• Government media operations and archive workflows
• Multi-purpose production room with mixed NLE environments
• Training and education production facility storage

Technical Specifications

Frequently Asked Questions

Q: Is Avid NEXIS | SDA or SDA+ required?
A: Yes. SDA/SDA+ is required for all F5 configurations and sold separately. SDA+ enables support for more than 24 Media Packs and up to 330 concurrent active clients. Contact Creation Networks for SDA/SDA+ guidance.

Q: Can the F5 work with existing NEXIS E-Series hardware?
A: Yes. F5 and E-Series chassis are compatible, but mixed-system bandwidth is limited to E-Series speeds. Configure F5 engines as a separate storage group to achieve full 480 MB/s per-pack performance.

Q: What is included in Elite Support?
A: 24/7 telephone access to Avid senior support engineers, priority hardware replacement logistics, and highest-priority technical escalation. Recommended for broadcast facilities requiring around-the-clock operational assurance.

Q: What switch infrastructure is required?
A: A 25GbE or 50GbE switch is required to reach rated F5 bandwidth. The F5 Controller ships with two 40/50Gbps QSFP28 interfaces (unpopulated). Existing 10GbE infrastructure will limit achievable throughput.

Q: How many clients can simultaneously access the storage?
A: With NEXIS SDA+, up to 330 concurrent active clients are supported. Actual per-client stream counts depend on resolution, codec, and bandwidth allocation configuration.

Q: Can I expand capacity beyond 800TB?
A: This configuration is fully populated at 8 Media Packs. Additional capacity requires a second F5 engine or the NEXIS FS Advanced License for multi-engine environments exceeding 24 Media Packs. Contact Creation Networks for expansion planning.
