Avid NEXIS | F5 60TB Media Pack. ExpertPlus with Hardware Support
Product Overview

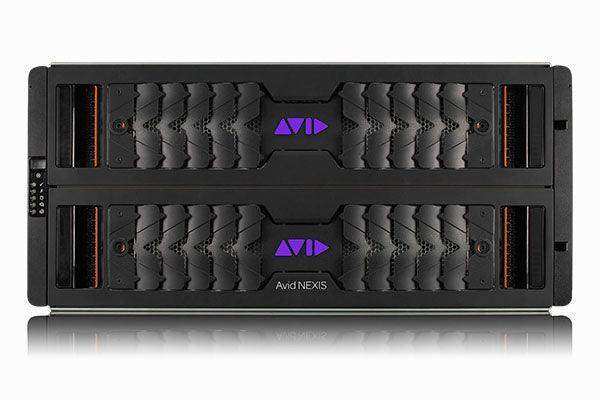

The Avid NEXIS | F5 60TB Media Pack is an HDD storage expansion module for the NEXIS F5 chassis, providing 60TB of usable capacity per pack and up to 480 MB/s of dedicated throughput. Up to 8 packs can be installed in a single F5 chassis, scaling aggregate bandwidth to 3.84 GB/s over 25/50GbE networking. The 60TB pack is the entry-level capacity option for the F5 chassis. This Media Pack includes Avid ExpertPlus with Hardware Support maintenance coverage.
Product Description
The F5 60TB Media Pack provides entry-level capacity for the NEXIS F5 chassis, suited for F5 deployments where bandwidth is the primary requirement or where capacity will be scaled incrementally. Media Packs can be hot-swapped into an existing F5 chassis for non-disruptive expansion. NEXIS SDA or SDA+ is required and sold separately.
Key Features
- 60TB Usable Capacity Per Pack — Entry-level HDD Media Pack for the F5 chassis.
- 480 MB/s Throughput Per Pack — Up to 3.84 GB/s aggregate with 8 packs installed.
- 25/50GbE QSFP28 Connectivity — High-speed networking for multi-user broadcast workflows.
- Up to 8 Packs Per Chassis — Scale capacity and bandwidth as workloads grow.
- Hot-Swap Expansion — Non-disruptive capacity expansion for existing F5 deployments.
- NEXIS FS Foundation Included — Centralized workspace management and multi-NLE support.
- ExpertPlus with Hardware Support — Hardware replacement coverage and expert technical access.
Technical Specifications
| Specification | Value |
|---|---|
| Module Type | Avid NEXIS F5 Media Pack |
| Capacity Per Pack | 60TB usable |
| Throughput Per Pack | Up to 480 MB/s |
| Max Packs Per Chassis | 8 |
| Max Aggregate Bandwidth (8 packs) | 3.84 GB/s |
| Network Connectivity | 25/50GbE QSFP28 |
| Software Included | Avid NEXIS FS Foundation license |
| Required Accessory | Avid NEXIS SDA or SDA+ (sold separately) |
| Support Level | ExpertPlus with Hardware Support |
Frequently Asked Questions
Q: How does the 60TB pack compare to 100TB and 140TB?
A: All F5 packs deliver the same 480 MB/s throughput; 60TB is the lowest-cost entry. Contact Creation Networks for capacity planning guidance.
Q: Is SDA/SDA+ required?
A: Yes, sold separately.
