Avid NEXIS | F5 560TB, Half populated 4x 140TB Media Packs, includes; two SSDs, two 14TB spare drives, two 220V PSU, 5 cooling modules, rack mount kit. ExpertPlus with Hardware Support
Avid NEXIS | F5 560TB, Half populated 4x 140TB Media Packs, includes; two SSDs, two 14TB spare drives, two 220V PSU, 5 cooling modules, rack mount kit. ExpertPlus with Hardware Support is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Avid NEXIS | F5 560TB, Half populated 4x 140TB Media Packs, include...
Product Overview

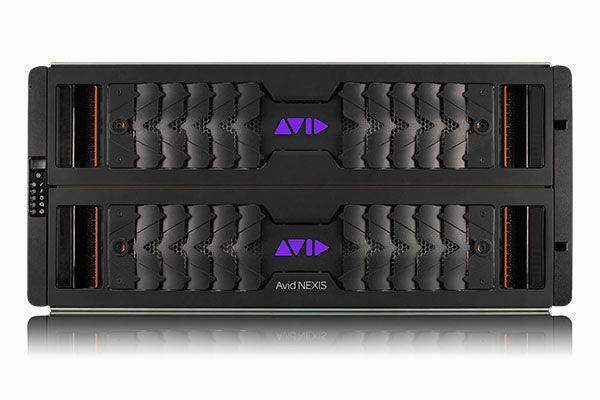

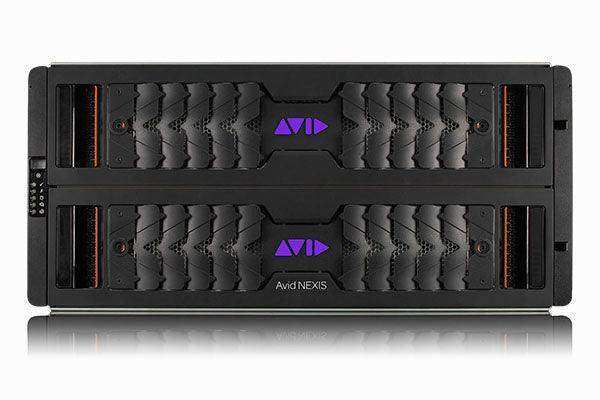

The Avid NEXIS | F5 560TB shared storage system is a scalable enterprise storage engine designed for broadcast facilities and post-production studios requiring high-performance shared storage with room to grow. Half-populated with four 140TB HDD Media Packs, this configuration delivers 560TB of usable capacity and up to 1.92 GB/s of aggregate bandwidth over 25/50GbE networking, with the chassis ready to accept four additional Media Packs for a full 1,120TB configuration. This bundle includes Avid ExpertPlus with Hardware Support, providing hardware replacement coverage and expert technical access.
Product Description
The Avid NEXIS | F5 560TB provides a cost-effective entry into F5 storage with an in-chassis upgrade path. Four 140TB HDD Media Packs deliver 560TB of usable capacity and 1.92 GB/s of aggregate bandwidth—enough to support substantial concurrent editorial teams on HD and 4K workflows. When additional capacity is needed, four more 140TB packs can be added to the same chassis to reach 1,120TB and 3.84 GB/s without chassis replacement.
The F5 Controller ships with two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated) for 25GbE or 50GbE production network connectivity. The included Avid NEXIS | FS license provides centralized workspace management, per-user bandwidth allocation, and integration with Avid Media Composer, Pro Tools, Adobe Premiere Pro, Apple Final Cut Pro, and DaVinci Resolve. Dual 220V redundant power supplies and five cooling modules support continuous 24/7 operation. Two 14TB spare drives and two SSDs are included. The system ships with a rack-mount kit.
Note: Avid NEXIS | SDA or SDA+ is required for all F5 configurations and is sold separately. Drive slot covers are not required for F5 engine chassis. ExpertPlus with Hardware Support provides hardware replacement logistics and expert technical access for facilities with capable in-house technical staff.
Key Features
- 560TB Expandable Capacity — Four 140TB HDD Media Packs provide 560TB with in-chassis expansion to 1,120TB by adding four additional packs—no chassis replacement required.
- 1.92 GB/s Aggregate Bandwidth — Four Media Packs at 480 MB/s each support concurrent high-resolution editorial, scaling to 3.84 GB/s at full population.
- 25/50GbE QSFP28 Connectivity — Two 40/50Gbps QSFP28 Ethernet interfaces (unpopulated) for integration with 25GbE or 50GbE switching infrastructure.
- Avid NEXIS | FS License Included — Centralized file system management, per-user workspace allocation, and bandwidth control.
- Redundant 220V Power Supplies — Dual PSUs for uninterrupted 24/7 production operation.
- Two 14TB Spare Drives — Hot-spare HDDs for immediate response to Media Pack drive failures.
- Two SSDs Included — Solid-state drives for file system metadata and cache performance.
- Five Cooling Modules — Redundant cooling for continuous-duty rack-mount deployments.
- Rack-Mount Kit Included — Standard 19-inch mounting hardware included.
- ExpertPlus with Hardware Support — Hardware replacement coverage and expert technical access for the contract period.
- E-Series Compatible — Integrates with existing NEXIS E-Series infrastructure as a dedicated storage group.
Typical Applications
- Broadcast production facility shared storage with planned growth
- Post-production studio collaborative 4K/HDR editorial
- Government media operations
- Multi-purpose production environment with mixed NLE platforms
- Training and education production facility storage
Technical Specifications
| Specification | Value |
|---|---|
| Model | Avid NEXIS | F5 |
| Total Usable Capacity | 560TB |
| Media Pack Configuration | 4x 140TB HDD Media Packs (half populated) |
| Maximum Expandable Capacity | 1,120TB (add 4x 140TB Media Packs) |
| Current Aggregate Bandwidth | Up to 1.92 GB/s (4 packs) |
| Network Interfaces | Two 40/50Gbps Ethernet QSFP28 (unpopulated) |
| Power Supply | Two 220V PSU (redundant) |
| Cooling | 5 cooling modules |
| Spare Drives | Two 14TB HDDs |
| SSDs Included | Two SSDs (metadata/cache) |
| Form Factor | Rack-mount (kit included) |
| Software Included | Avid NEXIS | FS license |
| Required Accessory | Avid NEXIS | SDA or SDA+ (sold separately) |
| Support Level | ExpertPlus with Hardware Support |
Frequently Asked Questions
Q: Can I expand this system to 1,120TB?
A: Yes. The half-populated chassis supports four additional 140TB Media Packs for a full 1,120TB and 3.84 GB/s configuration. Contact Creation Networks for expansion guidance.
Q: Is Avid NEXIS | SDA or SDA+ required?
A: Yes. SDA/SDA+ is required for all F5 configurations and sold separately. Contact Creation Networks for SDA/SDA+ guidance.
Q: What is ExpertPlus with Hardware Support?
A: ExpertPlus includes hardware replacement logistics and expert technical access. For 24/7 broadcast operations, Elite Support is available with higher response priority.
Q: What network infrastructure is required?
A: A 25GbE or 50GbE switch is required for rated F5 bandwidth. Existing 10GbE infrastructure will limit achievable throughput.
