AVer Wireless Pod AP200 – 4K Wireless Transmitter for AW200

Product Overview

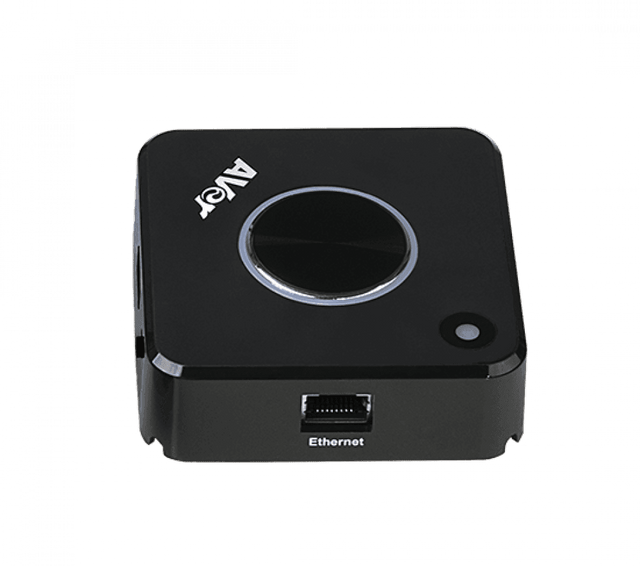

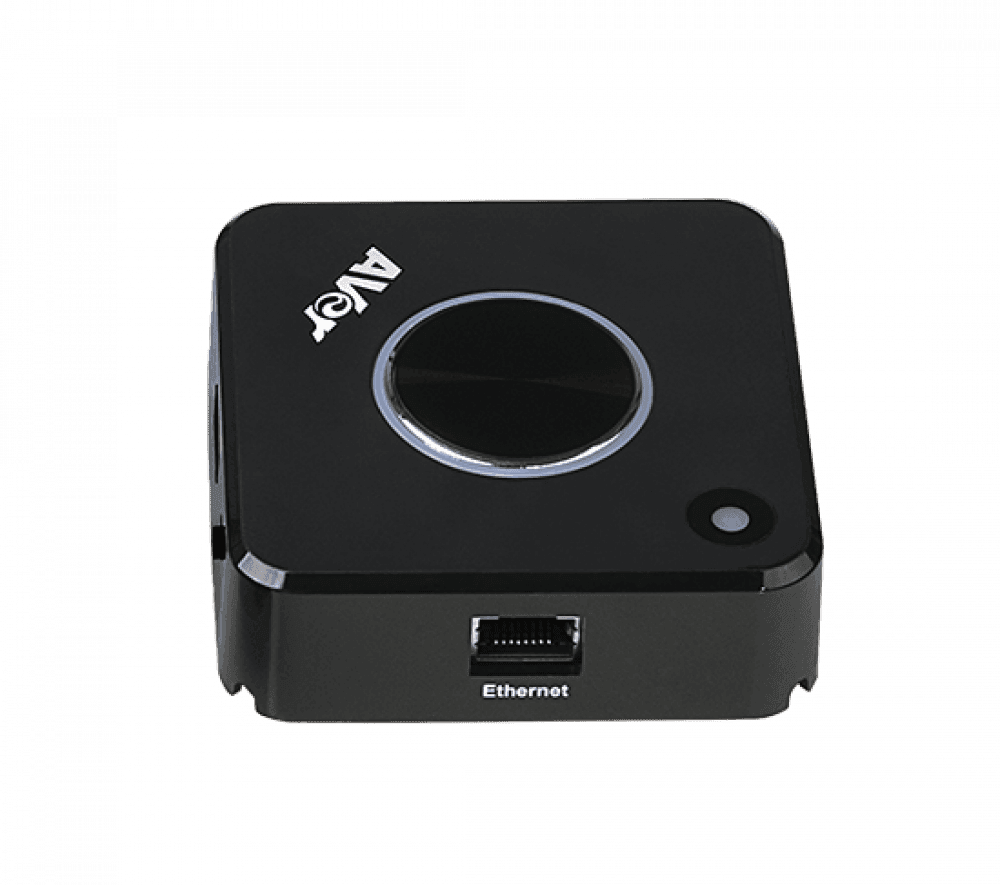

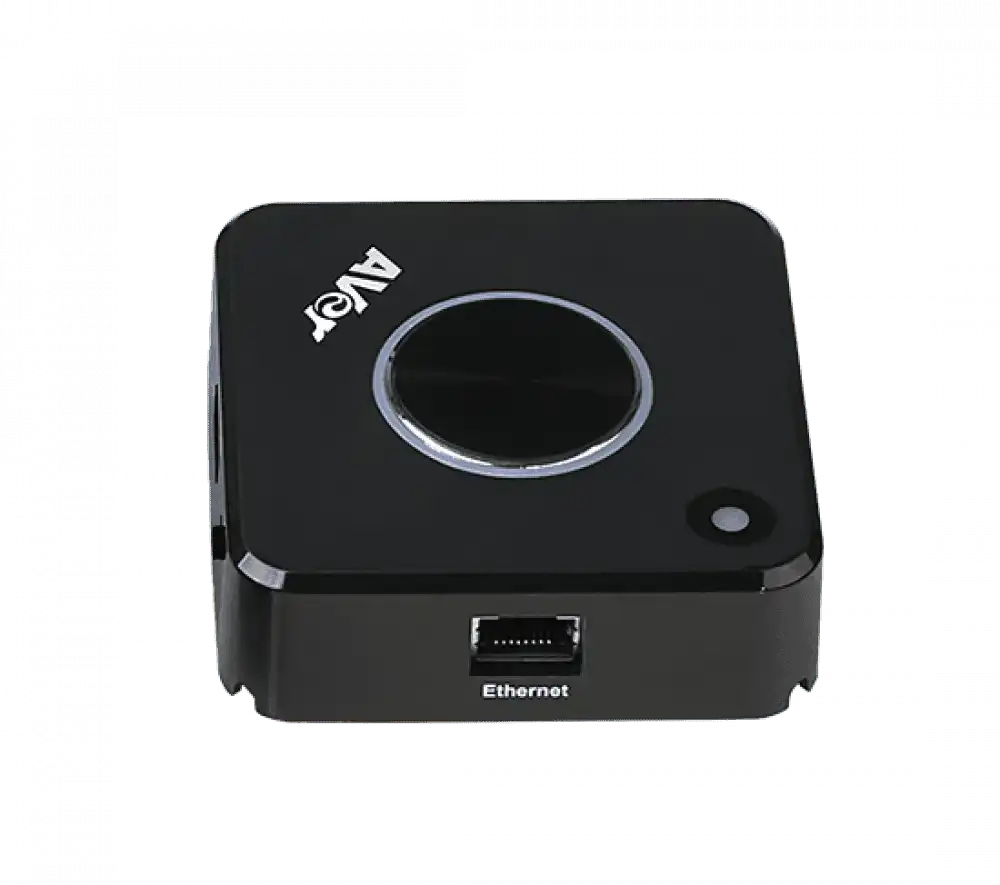

The AVer AP200 Wireless Pod is a 4K wireless transmitter that expands the AVer AW200 Wireless Presentation System, allowing additional presenters to share content from their laptops or mobile devices to a central conference room display. Each AP200 pod connects via HDMI or Mini DisplayPort and transmits wirelessly over IEEE 802.11ac (5 GHz) to the AW200 receiver (AR200), supporting output resolutions up to 4K. The AP200 is sold individually as an expansion unit — compatible exclusively with the AVer AW200 system — enabling organizations to scale their wireless presentation infrastructure as meeting room needs grow. Up to 32 AP200 transmitter pods can be paired with a single AR200 receiver.

Product Description

Cable-free content sharing in a conference room removes friction from presentations, but many wireless systems limit the number of simultaneous contributors or require proprietary software. The AVer AP200 resolves both constraints: it is a hardware transmitter that requires no software installation on the presenter's laptop, and it supports up to four simultaneous split-screen sources on one display when paired with an AW200 receiver.

Each AP200 pod accepts HDMI input and Mini DisplayPort input, making it compatible with a wide range of business laptops including those with USB-C via a DisplayPort adapter. The pod is powered by USB bus power (5V / 1A) from a standard USB-A port — the same USB port that connects the pod to the presenter's laptop — or optionally via PoE (IEEE 802.3AT) for permanent table installation. The LED-lit Projection and Control buttons on the pod give presenters clear, single-press control over when their screen is shared and whether they have interactive control on a touch-enabled display.

Wireless transmission operates exclusively on the 5 GHz IEEE 802.11ac band using WPA2-PSK security, keeping conference room content sharing on a protected, dedicated wireless channel separate from general office Wi-Fi traffic. The AR200 receiver can simultaneously display up to four presenter screens in a split-screen layout — useful for design reviews, side-by-side data comparisons, and collaborative team sessions.

The AP200 also supports iOS device mirroring via a Lightning-to-USB cable connection and Airplay wireless mirroring from iPhone and iPad. Android devices are supported via the AW Share application available on Google Play. For organizations expanding an existing AW200 deployment, the AP200 is the correct expansion accessory — see the full AW200 system and accessories at Creation Networks.

Key Features

• 4K Wireless Transmission — Transmits up to 4096x2160p 24Hz or 3840x2160p 30Hz to the AW200 receiver display output.
• HDMI and Mini DisplayPort Inputs — Supports direct connection to a wide range of laptops and presentation devices.
• IEEE 802.11ac 5 GHz Wi-Fi — Operates on 5 GHz with WPA2-PSK security for interference-reduced wireless performance.
• No Software Required — Plug the pod into the laptop USB port; the transmitter handles connection without driver or application installation.
• iOS and Android Support — Mirrors iOS devices via USB and Airplay; Android devices via AW Share app.
• Four Simultaneous Sources — Up to four AP200 pods can display split-screen content on one receiver output simultaneously.
• Scalable to 32 Transmitters — A single AR200 receiver supports up to 32 paired AP200 pods for large-scale deployments.
• USB Bus Power or PoE — Powered by the laptop's USB port (5V / 1A) or IEEE 802.3AT PoE for table-integrated installations.

Typical Applications

• Expanding existing AVer AW200 wireless presentation systems to support more concurrent presenters
• Corporate conference rooms and boardrooms requiring cable-free laptop-to-display screen sharing
• Training rooms and classrooms where multiple instructors or students present sequentially
• Higher education lecture halls with permanent wireless transmitter installations at presenter tables
• Government and enterprise meeting spaces requiring WPA2-secured wireless content distribution
