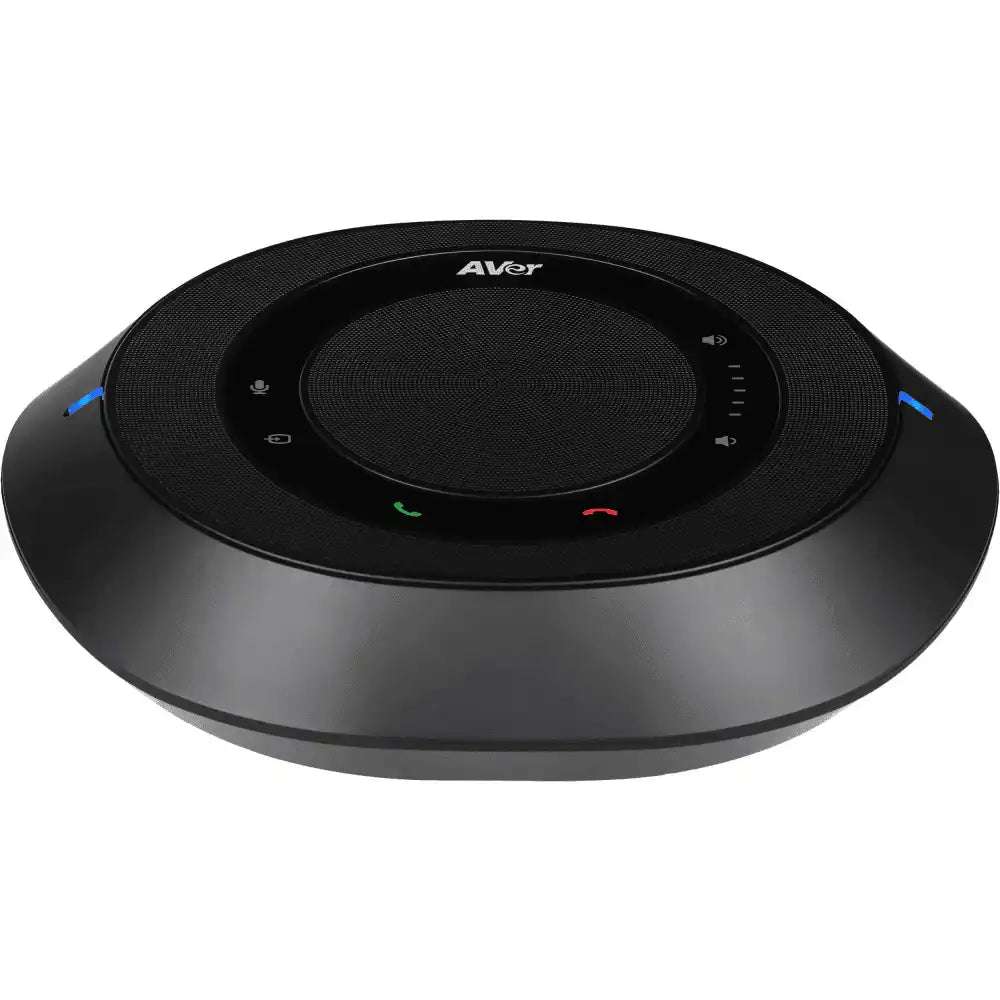

AVer COMEXPSPK – VC520 PRO & Pro2 Expansion Speakerphone

Product Overview

The AVer COMEXPSPK is an expansion speakerphone designed specifically for the AVer VC520 PRO and VC520 Pro2 video conferencing systems. It connects to the base speakerphone included with those systems to extend microphone and speaker coverage beyond what a single unit provides. One COMEXPSPK brings the combined voice-pickup radius from 15 feet to 30 feet; a second unit extends coverage to a maximum 45 feet across three speakerphones in total. The unit operates in full-duplex mode with a dual-microphone array, automatic gain control, echo cancellation, and background noise suppression to maintain call clarity regardless of where participants are seated in the room.

Product Description

In a mid-to-large conference room, a single speakerphone placed at the center of the table often cannot provide adequate microphone pickup for participants seated at the far ends. The AVer COMEXPSPK solves this by adding an additional speakerphone node that daisy-chains to the VC520 PRO’s existing speakerphone via an included 33-foot Cat 6 cable. The two units work together as a unified audio system, with voice pickup extending across a combined 30-foot radius — or 45 feet with a second COMEXPSPK in the chain.

Each COMEXPSPK unit carries a dual-microphone array with 360-degree omnidirectional pickup and a 15-foot individual range. Automatic gain control adjusts microphone sensitivity dynamically to prevent one loud speaker from drowning out quieter voices. Echo cancellation removes room reflections and speaker bleed from the microphone signal, while active noise suppression reduces HVAC, keyboard, and ambient background noise. The result is clear, intelligible audio on both ends of the call without manual adjustment.

The 6-watt speaker delivers up to 90 dB SPL at 0.5 meters, which is sufficient volume to fill a medium-to-large conference room without distortion. Full speakerphone controls — mute/unmute, volume up/down, call answer, and call hang-up — are available on the COMEXPSPK itself, so participants at the far end of the table are not dependent on the main unit for call management. Connectivity uses one RJ45 port for the upstream connection to the VC520 PRO speakerphone and a second RJ45 port for chaining to an additional expansion unit.

The COMEXPSPK is the correct accessory for the VC520 PRO and VC520 Pro2. It is not compatible with the original VC520 or VC520+, which use a different expansion speakerphone (COMVCSPK2).

Key Features

• Designed for VC520 PRO and VC520 Pro2 — Direct daisy-chain compatibility with the speakerphone included in those systems; connects via RJ45 using the included 33-foot Cat 6 cable.
• Dual-Microphone Array with 360-Degree Pickup — Two microphones capture voice evenly from all directions within a 15-foot radius, eliminating positional dead spots at the expansion unit location.
• Echo Cancellation and Active Noise Suppression — Removes room reflections, speaker bleed, and ambient background noise to maintain clear speech intelligibility on both ends of the call.
• Automatic Gain Control — Dynamically balances microphone levels across different speaker volumes without manual intervention.
• Full-Duplex Transmission — Both parties on the call can speak simultaneously without audio clipping or interruption, producing natural conversation flow.
• 6W Speaker, up to 90 dB SPL — Provides clear, room-filling audio output audible to participants throughout a mid-to-large conference room.
• Full Speakerphone Controls on Every Unit — Mute/unmute, volume up/down, call answer, and call hang-up are accessible at the expansion speakerphone, not only at the main unit.
• Microphone Frequency Response: 120 Hz to 16 kHz — Captures the full range of speech frequencies for natural-sounding voice reproduction.
• Two RJ45 Ports — One connects upstream to the VC520 PRO speakerphone; the second allows chaining to a second COMEXPSPK for 45-foot total coverage.
• 33-Foot Cat 6 Cable Included — Sufficient cable length for most conference room table runs without requiring additional cable purchases.

Typical Applications

• Mid-to-Large Conference Rooms — Place the COMEXPSPK at the far end of a long table to capture participants outside the 15-foot base speakerphone range.
• Board and Executive Meeting Rooms — Provide all participants with local speakerphone controls without requiring anyone to walk to the main VC520 PRO unit.
• Training and Multipurpose Rooms — Chain two COMEXPSPK units to cover a 45-foot radius in larger spaces with varied seating configurations.
• U-Shaped or Distributed Seating Layouts — Position expansion units at seating clusters that are offset from the primary speakerphone location.
• Higher Education Collaboration Spaces — Extend VC520 PRO audio coverage to accommodate larger seminar or group discussion settings.

Technical Specifications
