AVer VC520 PRO & VC520 Pro2 Expansion Microphone – 360° Full-Duplex Mic

Product Overview

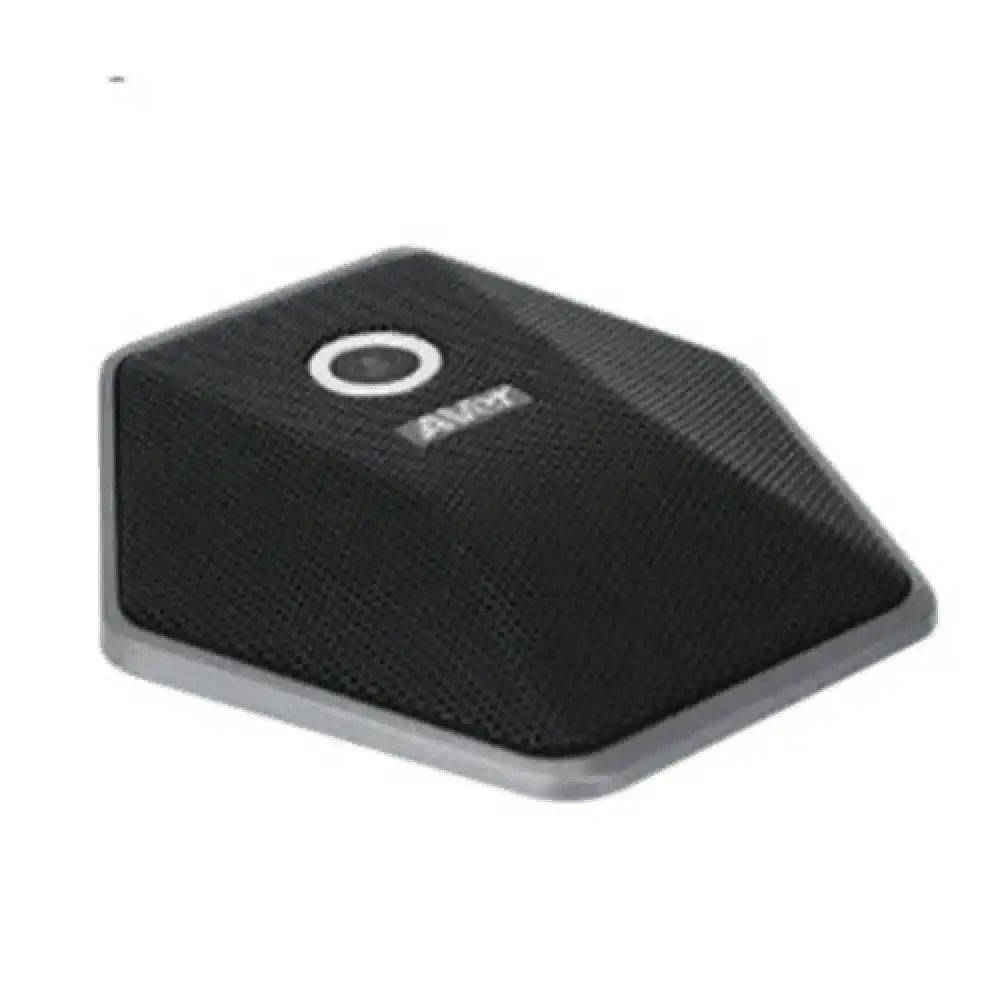

The AVer VC520 PRO Expansion Microphone (COMEXPMIC) extends the voice pickup coverage of the VC520 Pro and VC520 Pro2 conferencing systems without adding cabling complexity to the host unit. Using a full-duplex electret condenser element, it captures 360° of audio at up to 15 feet per unit, making it well suited for mid-size and large conference rooms where participants are spread across the table. Up to four expansion microphones can be daisy-chained together, scaling the system to a combined 30-foot pickup diameter when paired with the VC520 Pro's included speakerphone.

Product Description

The COMEXPMIC is designed exclusively for the AVer VC520 Pro and VC520 Pro2 video conferencing systems, providing a straightforward way to increase microphone coverage as your meeting room grows. Its electret condenser capsule delivers a frequency response of 120 Hz to 16 kHz, capturing natural voice intelligibility without coloring the audio. A 5-meter (16.4 ft) Cat 6 cable is included, connecting directly to the RJ45 expansion port on the VC520 Pro speakerphone.

Because the microphone draws power over Ethernet from the speakerphone, no separate power adapter is required, keeping cable management clean. Full-duplex operation means participants on both ends of the call can speak and be heard simultaneously without half-duplex clipping artifacts. The daisy-chain architecture allows you to add microphones incrementally—one, two, three, or four units—scaling coverage in 15-foot increments as the room demands.

The unit is finished in a low-profile matte-black housing designed for tabletop placement. Its omnidirectional 360° pickup pattern means placement anywhere along the conference table achieves consistent results without dead zones. Combined with the VC520 Pro's built-in echo cancellation and noise suppression, intelligibility remains high even in acoustically reflective rooms. This microphone is compatible with Creation Networks' full lineup of AVer VC520 Pro and Pro2 conferencing bundles.

Key Features

• 360° Omnidirectional Pickup — Captures voice from all directions at the table without repositioning.
• 15-Foot Voice Pickup Radius Per Unit — Each microphone covers up to a 15 ft radius; daisy-chain up to four units for extended coverage.
• Full-Duplex Operation — Simultaneous two-way audio without half-duplex switching delays or clipping.
• Electret Condenser Capsule — 120 Hz–16 kHz frequency response delivers clear, natural voice reproduction.
• PoE Powered via RJ45 — Draws power from the VC520 Pro speakerphone over the included Cat 6 cable; no external adapter needed.
• Daisy-Chain Scalability — Up to four COMEXPMIC units can be linked in series for rooms requiring extended reach.
• Plug-and-Play Integration — Works with the VC520 Pro and VC520 Pro2 out of the box; no driver installation required.
• Compatible with Major Platforms — Functions with Zoom, Microsoft Teams, Google Meet, Webex, and other UVC/UAC-compliant platforms on Windows 7/10/11 and macOS 14.4 or later.

Typical Applications

• Mid-size to large conference rooms using the AVer VC520 Pro or VC520 Pro2 system where the built-in speakerphone's coverage does not reach all participants
• Boardrooms with long rectangular tables requiring distributed microphone coverage along the table surface
• Training rooms and corporate classrooms where instructor and participant audio must both be captured clearly
• Government and legal meeting rooms requiring full-duplex audio with multi-point coverage
• Hybrid meeting environments where remote participants need equal audio presence to in-room attendees

Technical Specifications
