AVer VB342 Pro – 4K PTZ Video Bar for Small to Medium Rooms

Product Overview

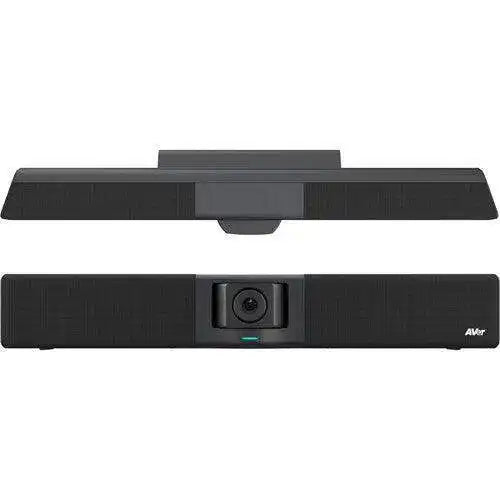

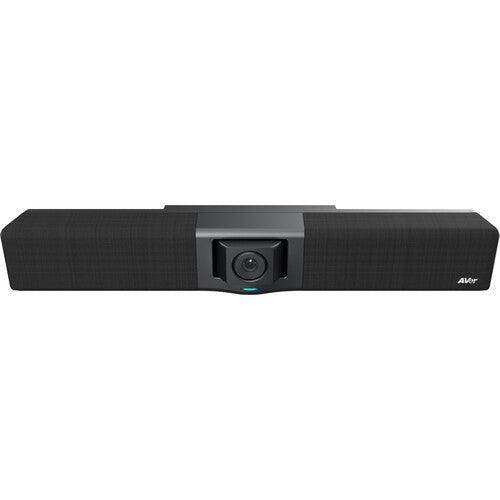

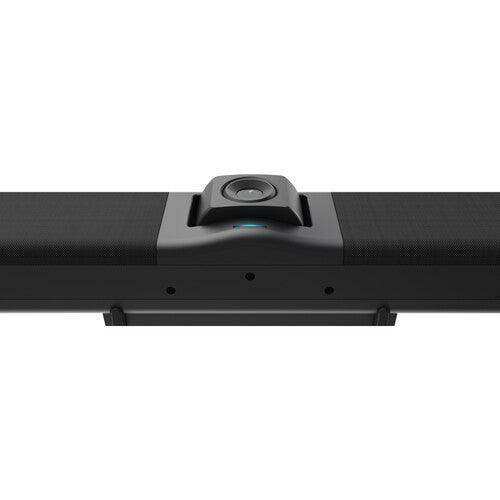

The AVer VB342 Pro is an enterprise-grade all-in-one 4K PTZ video bar purpose-built for small to medium conference rooms. It integrates a 4K camera, a 10-microphone beamforming array, and a 6W speaker system into a single USB-connected unit, eliminating the cable runs and compatibility issues that come with assembling separate components. With AI-driven Smart Gallery, Audio Fencing, and Gesture Control, the VB342 Pro delivers a managed meeting experience without requiring a dedicated AV operator.

Product Description

The VB342 Pro captures 4K video at 30fps through a lens with a 92-degree diagonal field of view, 84-degree horizontal, and 53-degree vertical. The 3x optical zoom provides 15x total zoom range through motorized pan and tilt, giving moderators the ability to frame participants precisely across a range of room sizes. Output travels over USB 2.0 Type-A to the host computer, with an Ethernet port available for IP streaming via RTSP and RTMP to recording and distribution systems.

Audio is handled by a 10-element beamforming microphone array with a pickup range of up to 20 feet. The array steers toward active speakers automatically, and the Audio Fencing feature lets you define a meeting zone so that sounds outside the camera’s viewing angle are suppressed—useful in open-plan offices or rooms with adjacent noise sources. The integrated 6W speaker delivers clear audio back to the room from far-end participants.

Smart Gallery uses AI processing to detect and crop individual faces, presenting each participant as a separate tile. This gives remote attendees a better read on who is speaking in larger groups. Gesture Control allows a presenter to trigger camera moves or other functions with a hand gesture, avoiding the need to touch a control panel. SmartSpeaker automatically zooms toward the active speaker so the person talking is always prominently framed.

The VB342 Pro is compatible with all major USB video conferencing platforms including Microsoft Teams, Zoom, and Google Meet. It ships with a 3-year warranty that includes 1st-year advanced replacement within 72 hours.

Key Features

• 4K 30fps Camera — 92° diagonal FOV and 3x optical zoom (15x total) in a single bar unit, no separate PTZ head required.
• 10-Mic Beamforming Array — Picks up voices up to 20 feet away and steers the beam toward the active speaker automatically.
• Audio Fencing — Defines an audio pickup zone matched to the camera’s viewing angle, suppressing ambient noise from outside the meeting space.
• Smart Gallery — AI crops individual participant faces into separate tiles, improving visibility for remote attendees in larger groups.
• SmartSpeaker Auto-Framing — Automatically zooms to frame the active speaker so remote participants can track the conversation visually.
• Gesture Control — Trigger camera functions with a hand gesture, eliminating the need to interact with a control panel or remote.
• Dual Connectivity — USB 2.0 for direct host connection plus Ethernet for IP streaming via RTSP and RTMP.
• 3-Year Warranty — Industry-leading coverage with 1st-year advanced 72-hour replacement program.

Typical Applications

• Small to medium conference rooms (6–12 person capacity)
• Huddle spaces and collaboration rooms
• Open-plan offices with Audio Fencing to isolate the meeting zone
• Microsoft Teams and Zoom Rooms certified deployments
• Corporate video conferencing where an all-in-one form factor simplifies installation
• Education and training rooms with frequent presenter movement

Technical Specifications

Frequently Asked Questions
