AVer TR530 – Professional 30X Auto-Tracking PTZ Camera

Product Overview

The AVer TR530 is a professional 30X auto-tracking PTZ camera engineered for broadcast-quality, hands-free video capture in live event, house of worship, and enterprise AV deployments. Its intelligent presenter tracking system follows a speaker automatically through three configurable modes — Wide Area, Stage, and Segment — eliminating the need for a dedicated camera operator. Dual-camera architecture pairs a 30X optical zoom main sensor with a secondary 120° FOV panoramic camera, delivering simultaneous PTZ and full-room 1080p60 feeds across 3G-SDI, HDMI, and IP outputs. The TR530 integrates natively with VISCA, Pelco-D, Pelco-P, and ONVIF control environments, making it a practical choice for any standards-based AV control system.

Product Description

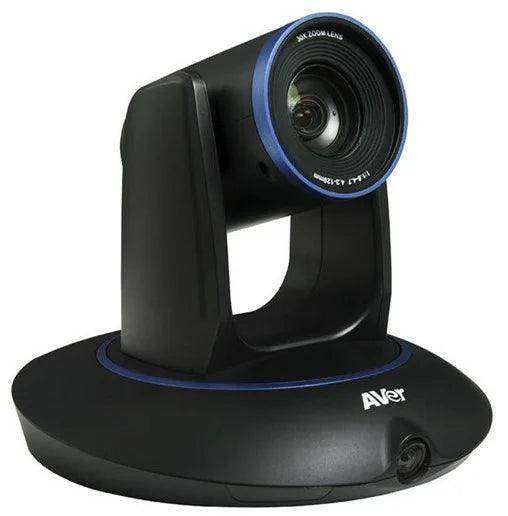

The TR530 is built around a 1/2.8" 60fps low-lux CMOS sensor delivering 2-megapixel resolution at up to 1080p60. The 30X optical zoom (f = 4.3mm wide to 129mm tele, F1.6–F4.7) combined with 12X digital zoom provides precise framing across large rooms and deep stages. A secondary panoramic camera with a 120° DFOV captures the full room view simultaneously, enabling dual-stream IP delivery of both the PTZ and wide-angle perspectives over a single RJ45 connection.

Three auto-tracking modes address distinct production needs. Wide Area Tracking uses up to 8 configurable blocking zones and an effective zone boundary to follow a presenter across an open stage. Stage Tracking confines the frame to a defined performance area with lockable boundaries. Segment Tracking creates up to 4 content zones that the camera automatically switches between when on-screen content — such as whiteboards, displays, or podiums — is detected. This makes the TR530 well-suited to training environments and lecture capture without operator intervention.

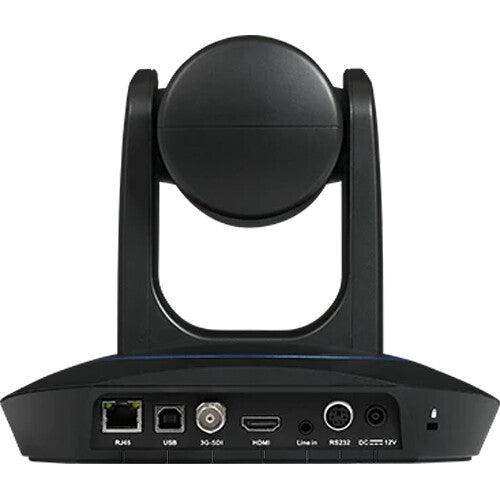

Control is handled via RS-232 (using the included DB9-to-DIN6 adapter), or over IP using VISCA Over IP, Pelco-D, or Pelco-P. The network interface supports 10/100/1000Base-T with Wake-on-LAN. H.264 video compression streams via RTSP and RTMP, and the camera is ONVIF-compliant for integration with video management systems. Audio is supported via a 3.5mm line input and encoded as PCM, AAC-LC, or G.711. Up to 255 preset positions can be stored and recalled via RS-232, with 10 accessible via IR remote. AVer PTZ Management software is included at no additional cost for centralized multi-camera control.

Key Features

• 30X Optical Zoom — f = 4.3mm to 129mm lens covers close-up and wide-angle capture in the same unit, supporting rooms up to large auditorium scale.
• Three Auto-Tracking Modes — Wide Area, Stage, and Segment Tracking provide configurable hands-free camera operation without a dedicated operator.
• Dual 3G-SDI Outputs — Two independent 3G-SDI ports allow simultaneous feed to a production switcher and a secondary destination such as a confidence monitor or recording device.
• 120° Panoramic Camera — Secondary wide-angle sensor delivers a simultaneous full-room view via IP alongside the main PTZ feed.
• VISCA / Pelco-D / Pelco-P / ONVIF Control — Supports all major PTZ control protocols over RS-232 or IP for seamless integration with Crestron, AMX, and other control systems.
• RTSP / RTMP IP Streaming — Dual H.264 streams (PTZ + panoramic) over a standard Gigabit Ethernet connection for integration with streaming platforms and VMS.
• 255 Preset Positions — Store and recall up to 255 positions via RS-232 control, or 10 via included IR remote.
• Low-Light Performance — Minimum illumination of 0.47 lux at 60fps (0.23 lux at 30fps) for operation in dim auditorium and worship environments.
• AVerCare 3-Year Warranty with 24-Hour Replacement — Industry-leading coverage reduces deployment risk for system integrators and end users.

Typical Applications

• House of worship
• Auditorium
• Conference room
• Training room
• Broadcast studio
• All-hands room
• Multi-purpose room
