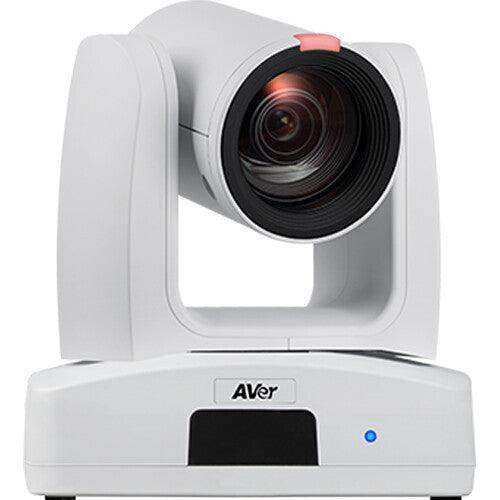

AVer PTZ330UV2 – 4K AI PTZ Camera with 30x Optical Zoom

Product Overview

The AVer PTZ330UV2 is a professional 4K PTZ camera engineered for demanding AV deployments where image precision, flexible connectivity, and intelligent automation are required. Delivering 4K resolution at 60fps via a 1/2.8" Sony Exmor CMOS sensor, the PTZ330UV2 supports simultaneous USB, IP, HDMI, and 3G-SDI output — making it a versatile choice for conference rooms, broadcast studios, and houses of worship. With 30x optical zoom and built-in AI tracking modes, the camera adapts to the presenter and the space rather than requiring constant operator intervention. PoE+ simplifies cable runs, while SRT protocol support ensures reliable delivery over unpredictable network conditions.

Product Description

The AVer PTZ330UV2 4K PTZ camera is designed for AV integrators and IT/facilities managers who need a single camera that covers a wide range of production requirements. Its 1/2.8" Exmor CMOS sensor captures 8MP images at up to 4K 60fps, with a 30x optical zoom that spans a 2.5° to 62.3° horizontal angle of view — suitable for large auditoriums and compact boardrooms alike.

Four simultaneous output paths — USB 3.0, HDMI, 3G-SDI, and IP streaming — allow the PTZ330UV2 to feed multiple downstream systems without a downstream splitter. The camera supports H.265, H.264, and MJPEG compression, and uses SRT to stabilize streaming over congested or lossy networks. Microsoft Teams video mode allows plug-and-play integration with Teams Rooms deployments, reducing configuration overhead for IT administrators.

Control is handled via RS-232, RS-485, VISCA, or Pelco-P/D protocols, giving system integrators compatibility with virtually every control system on the market. The built-in SmartShoot AI mode automatically adjusts the field of view and camera position to keep subjects in frame without operator input. PoE+ (IEEE 802.3at) powers the camera over a single Cat cable, and a tally light assists production crews in multi-camera environments. The 5-year manufacturer warranty reflects the camera's intended use in permanent commercial installations.

Key Features

• 4K 60fps Imaging — 1/2.8" Sony Exmor CMOS sensor delivers 8MP resolution at up to 3840×2160 60fps for sharp, detailed capture in any lighting condition.
• 30x Optical Zoom — Covers a 2.5° to 62.3° horizontal angle of view, providing flexibility from wide establishing shots to tight close-ups without loss of image quality.

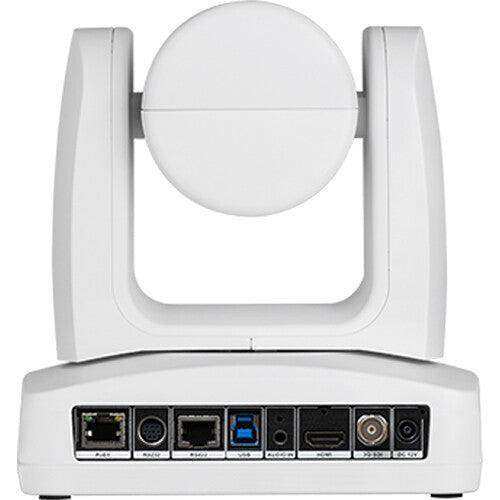

• Simultaneous Quad Output — USB 3.0, HDMI, 3G-SDI, and IP streaming are all active simultaneously, allowing a single camera to feed multiple recording and display systems.
• SRT Streaming Protocol — Secure Reliable Transport optimizes live streaming performance across high-latency or packet-loss-prone networks.
• SmartShoot AI Mode — Built-in AI adjusts the field of view and tracks subjects automatically, reducing the need for a dedicated camera operator.
• Microsoft Teams Video Mode — Preconfigured Teams-compatible framing simplifies deployment in Microsoft Teams Rooms environments.
• PoE+ Power (IEEE 802.3at) — Single Cat cable powers and connects the camera, reducing conduit requirements and simplifying installation.
• Multi-Protocol Control — RS-232, RS-485, VISCA, Pelco-P, and Pelco-D support ensures compatibility with Crestron, AMX, Extron, and other control systems.
• Tally Light — Integrated tally indicator assists multi-camera production teams with on-air status at a glance.
• 5-Year Manufacturer Warranty — Camera backed by a 5-year limited warranty; accessories covered for 1 year.

Typical Applications

• Conference rooms and boardrooms requiring 4K PTZ camera coverage with Teams or Zoom integration
• Houses of worship with large sanctuaries where 30x optical zoom and auto-tracking reduce operator workload
• Broadcast studios and production environments that need simultaneous SDI and IP output from a single camera
• Government chambers and municipal meeting rooms requiring permanent, high-reliability PTZ installations
• Training rooms and all-hands spaces with variable presenter positioning that benefits from AI auto-framing
• Auditoriums and multi-purpose rooms where PoE+ simplifies infrastructure and camera placement
