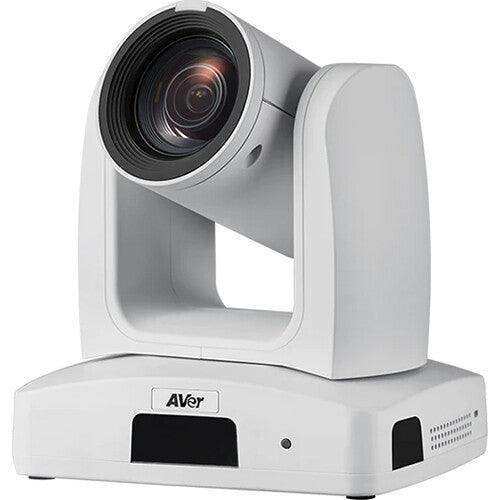

AVer PTZ330UNV2 – 4K AI PTZ Camera with NDI|HX3 & 30x Optical Zoom

Product Overview

The AVer PTZ330UNV2 is a professional 4K AI PTZ camera that adds NDI|HX3 support to the PTZ330U platform, making it the first UHD NDI|HX3 camera in AVer’s lineup. Designed for AV integrators deploying IP-based video infrastructure, the PTZ330UNV2 delivers 4K resolution at 60fps via HDMI, 3G-SDI, IP, and NDI|HX3 outputs simultaneously — all from a single 1/2.8" Sony Exmor CMOS sensor with 30x optical zoom. NDI|HX3 provides lower latency and better video quality than previous HX generations while consuming a fraction of the bandwidth of full NDI, making it practical for standard network infrastructure. Built-in AI functions, SRT protocol support, and Microsoft Teams video mode round out a camera suited to conference rooms, broadcast studios, and houses of worship with IP video backbones.

Product Description

The AVer PTZ330UNV2 addresses a specific requirement in modern AV system design: 4K PTZ camera output natively over NDI|HX3 without sacrificing the analog and USB connectivity that traditional deployments still require. As production facilities, corporate campuses, and houses of worship migrate video infrastructure to IP, NDI|HX3 has become the dominant protocol for connecting cameras to software-based production switchers like vMix, Wirecast, OBS (via NDI plugin), and NewTek TriCaster.

NDI|HX3 — the third generation of the High Efficiency NDI codec — delivers improved image quality and lower end-to-end latency compared to HX2, while maintaining the bandwidth efficiency that makes NDI|HX practical for standard 1GbE network switches. This means AV integrators can deploy the PTZ330UNV2 across existing network infrastructure without upgrading to 10GbE switching.

Beyond NDI|HX3, the camera maintains simultaneous HDMI, 3G-SDI, and IP output, so it integrates equally well into hybrid environments where not every device on the production chain is NDI-capable. USB 3.0 output ensures Teams Rooms and Zoom Rooms compatibility. SRT protocol support stabilizes streaming performance over WAN connections. The SmartShoot AI mode auto-frames and adjusts the field of view based on subject position, and Microsoft Teams video mode reduces IT configuration overhead in Teams Rooms deployments. PoE+ powers the unit over a single Cat cable, and the 5-year manufacturer warranty reflects its use in permanent commercial installations.

Key Features

• NDI|HX3 Output — First-generation UHD NDI|HX3 PTZ from AVer; delivers 4K over standard 1GbE networks with lower latency and better image quality than NDI|HX2.
• 4K 60fps Imaging — 1/2.8" Sony Exmor CMOS sensor delivers 8MP resolution at up to 3840×2160 60fps for sharp, detailed output across all connected systems.
• 30x Optical Zoom — 2.5° to 62.3° horizontal angle of view covers intimate boardrooms through large auditoriums with no image degradation.
• Simultaneous Quad Output — HDMI, 3G-SDI, IP (RTSP/SRT), and NDI|HX3 are all active simultaneously for hybrid analog/IP production environments.
• SmartShoot AI Mode — On-camera AI auto-framing and subject tracking adjusts the field of view automatically, reducing the need for a dedicated camera operator.
• SRT Protocol Support — Secure Reliable Transport maintains stream integrity over high-latency or lossy WAN connections for reliable remote production.
• Microsoft Teams Video Mode — Preconfigured Teams-compatible framing and USB 3.0 UVC output ensures plug-and-play integration with Microsoft Teams Rooms.
• PoE+ Power (IEEE 802.3at) — Single Cat5e/Cat6 cable carries both power and network, reducing cable infrastructure for ceiling or wall installations.
• Multi-Protocol Control — RS-232, RS-485, VISCA, Pelco-P, and Pelco-D support ensures compatibility with Crestron, AMX, Extron, QSC, and other control systems.
• 5-Year Manufacturer Warranty — Camera covered by a 5-year limited warranty; accessories covered for 1 year.

Typical Applications

• Conference rooms and boardrooms with NDI-based video infrastructure connecting to software switchers or room control systems
• Houses of worship migrating to IP video production with vMix, TriCaster, or other NDI-native platforms
• Broadcast studios requiring 4K NDI|HX3 camera feeds integrated into software-based production workflows
• Corporate campuses deploying IP video backbone where NDI|HX3 over 1GbE is the standard camera-to-switcher protocol
• Training rooms and all-hands rooms combining Teams Rooms video conferencing with local NDI production switching
• Auditoriums and multi-purpose rooms where AI auto-tracking reduces operator requirements and NDI simplifies cable infrastructure
