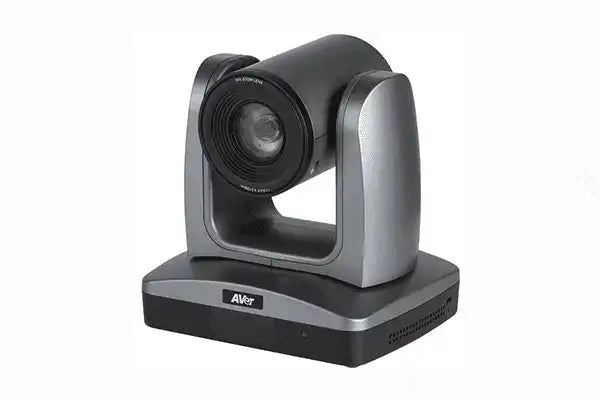

AVer PTZ330N NDI|HX Live Streaming PTZ Camera with 30x Optical Zoom (Gray)

Product Overview

The AVer PTZ330N is a professional live-streaming PTZ camera with 30x optical zoom and integrated NewTek NDI® 5 for low-latency video distribution over standard IP networks. It outputs simultaneously over 3G-SDI, HDMI, IP/NDI, and USB, making it suitable for broadcast studios, houses of worship, and large conference rooms where multi-destination video routing is required. PoE+ (IEEE 802.3at) support allows a single Cat cable to carry both power and network control, reducing infrastructure complexity for AV integrators and systems designers. The PTZ330N ships with a 3-year advance replacement warranty with 24-hour RMA turnaround, a differentiator for mission-critical installation environments.

Product Description

The PTZ330N is built around a 1/2.8" Sony Exmor 1080p60 CMOS sensor capable of delivering up to 1080p/60fps output with a minimum illumination of 0.43 lux at IRE50 — a figure suited to low-light auditorium and stage environments. The 30x optical zoom spans a focal range of 4.3 mm (67° wide) to 129 mm (2.3° tele), and 12x digital zoom extends reach further for large-venue applications. Pan and tilt movements are precise to 0.1° per step with a maximum preset speed of 200°/second, and up to 255 preset positions can be stored via VISCA over RS-232 or RS-422.

NDI® 5 integration means the camera can be discovered and controlled directly from NewTek-compatible switchers, vMix, OBS (with NDI plugin), and other production software without a separate control cable. SRT streaming is also supported alongside RTSP and RTMP for compatibility with encoding hardware and cloud streaming platforms. The Micro-USB port provides a UVC 1.1 output path for software-based workflows or local preview without an additional encoder. AVer's SmartShoot feature automates content capture between preset zones, giving a multi-camera feel from a single unit — useful in training rooms and broadcast studios with limited operators.

Key Features

• 30x Optical Zoom with 12x Digital Extension — Covers wide-angle room shots at 67° and detailed long-throw framing at 2.3°, supporting large auditoriums, sanctuaries, and conference halls where subjects are 30–100+ feet from the camera position.
• NDI® 5 Integration — Streams low-latency video over standard Gigabit Ethernet to NDI-compatible switchers, software, and production systems, eliminating dedicated video cabling runs in broadcast and live production workflows.
• Simultaneous Multi-Output: 3G-SDI, HDMI, IP, USB — Feeds multiple destinations at once — a broadcast switcher via SDI, a confidence monitor via HDMI, a streaming encoder via IP, and a recording workstation via USB — without a distribution amplifier.
• PoE+ Powered — A single Cat5e/6 cable delivers both network connectivity and power (IEEE 802.3at Class 4), reducing cabling and eliminating the need for a local power outlet at the camera position.
• 255 VISCA Preset Positions — Stores up to 255 repeatable camera positions via RS-232 or RS-422 control, with pan/tilt speed precision to 0.1° per step for consistent shot framing across productions.
• SmartShoot Automated Content Capture — Moves the camera automatically between defined preset zones on a programmable schedule, creating a multi-camera production feel from a single PTZ unit.
• SmartFrame One-Touch Face Targeting — Instantly reframes to fit detected participants on-screen, useful in training rooms and classrooms where presenters move frequently.
• SRT and RTSP/RTMP Streaming — Supports SRT for reliable streaming over public networks alongside RTSP and RTMP, giving AV designers flexibility in encoding and platform routing.
• 3-Year AVerCare Advance Replacement Warranty — Includes 24-hour RMA turnaround with free return shipping, a meaningful consideration for installations in government spaces or houses of worship where downtime is costly.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Conference room (large)
• Training room
• Government space

Technical Specifications
