AVer PTZ310UNV2 4K Professional PTZ Camera with NDI|HX3 & 12x Optical Zoom

Product Overview

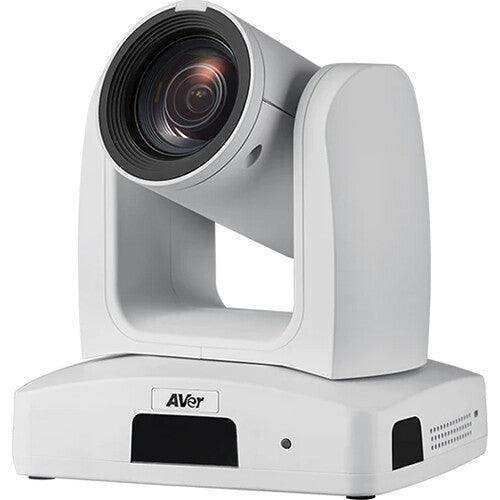

The AVer PTZ310UNV2 is a professional-grade 4K PTZ camera designed for demanding AV integration projects that require simultaneous IP video transport over standard network infrastructure. It delivers true 4K UHD resolution at 30 fps through a 1/2.5-inch CMOS sensor paired with a 12x optical zoom lens, making it suitable for large conference rooms, boardrooms, houses of worship, and government facilities. NDI|HX3 support enables low-latency video distribution over a single Ethernet connection without dedicated coaxial cabling, simplifying installation and reducing infrastructure cost. The camera also supports USB 3.0, HDMI, and IP streaming outputs simultaneously, giving integrators flexible routing options for any signal chain.

Product Description

The PTZ310UNV2 succeeds the PTZ310 line with full NDI|HX3 certification — the third-generation High Efficiency protocol from NewTek that delivers lower latency and higher quality than NDI|HX2 while maintaining bandwidth efficiency over 1 GbE networks. Alongside NDI|HX3, the camera outputs via USB 3.0 (UVC) for direct plug-and-play use with conferencing platforms such as Microsoft Teams, Zoom, and Webex, and a full-bandwidth HDMI 2.0 output for local display or capture. Pan range spans ±170° and tilt covers –30° to +90°, with a maximum pan speed of 100°/second and tilt speed of 90°/second — adequate for tracking presenters across wide stages. The 12x optical zoom reaches a 72.5° wide-angle field of view at its widest setting, with a 6.5° telephoto end, and a digital zoom extends reach further when needed. Control is handled via RS-232, RS-422/485, or IP using VISCA over IP, Pelco-D, and Pelco-P protocols, and the camera is ONVIF Profile S compliant for integration with third-party VMS platforms. Power is supplied via PoE+ (802.3at) or DC, eliminating the need for a separate power run to ceiling or wall mounts.

Key Features

• NDI|HX3 Protocol Support — Distributes 4K video over a standard 1 GbE network with lower latency than previous NDI|HX generations, eliminating dedicated video cabling runs.
• 4K UHD at 30 fps — 1/2.5-inch CMOS sensor captures 3840×2160 resolution, delivering high-detail imagery for large displays and remote production workflows.
• 12x Optical Zoom — Covers a 72.5° wide-angle to 6.5° telephoto field of view, suitable for tracking presenters in rooms of varying depth without image quality loss.

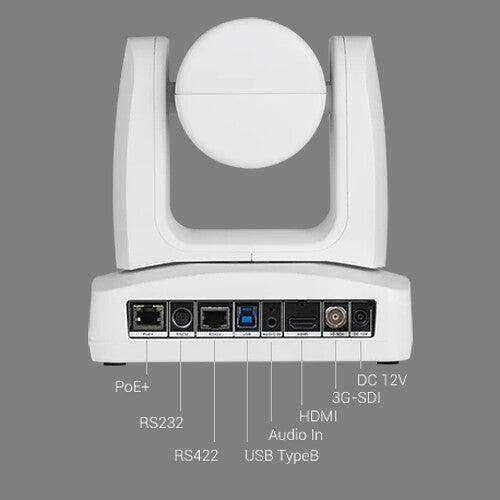

• Triple Output: USB 3.0, HDMI, and IP — Simultaneously feeds conferencing software, local displays, and network-based recording or streaming systems from a single camera.
• PoE+ (802.3at) Powered — Single Cat5e/Cat6 cable carries both data and power, simplifying ceiling or wall installation without additional power infrastructure.
• VISCA, Pelco-D/P, and ONVIF Profile S — Compatible with leading control systems including AMX, Crestron, Extron, and third-party VMS platforms for integrated control room deployments.
• ±170° Pan / –30° to +90° Tilt — Wide movement range covers auditorium stages and large meeting spaces; up to 255 preset positions storable for scene recall.
• RS-232, RS-422/485, and IP Control — Supports both legacy serial control wiring and modern IP-based control network topologies.

Typical Applications

• Boardroom and executive conference room video conferencing
• Government chambers and legislative spaces requiring IP video distribution
• House of worship IMAG and live streaming to NDI-based production switchers
• All-hands rooms and town hall meeting spaces with large audiences
• Training rooms requiring simultaneous local display and remote participant feeds
• Broadcast studios and live production environments using NDI-based workflows
• Auditoriums and large lecture halls with presenter tracking requirements
