AVer CL01 – Professional PTZ Camera Controller
Product Overview
The AVer CL01 is a professional PTZ camera controller designed to give operators precise, centralized control over up to seven cameras simultaneously. Compatible with VISCA-over-IP, VISCA, Sony VISCA, Pelco-D, and Pelco-P protocols, the CL01 works with virtually any PTZ camera that communicates over IP, RS-232, RS-422, or RS-485. Whether you are managing a multi-camera broadcast studio, a large conference room, or a house of worship, the CL01 delivers the physical control surface that software-only solutions cannot match. At Creation Networks, we stock the CL01 as a core component for professional AV installations requiring reliable, hands-on PTZ camera management.
Product Description

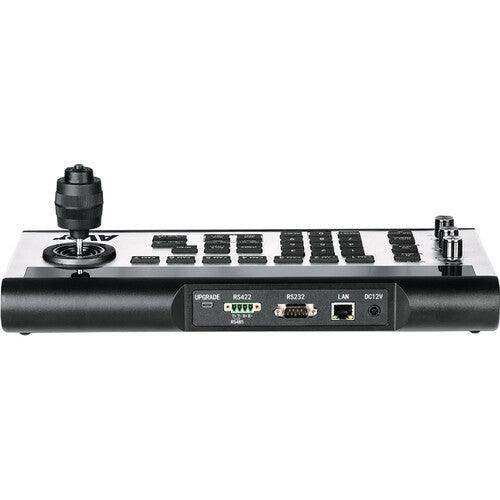

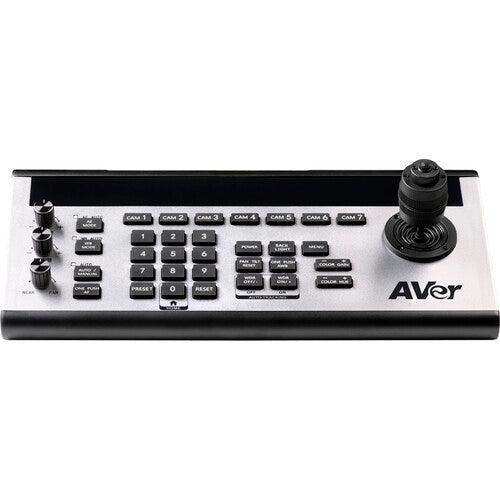

The AVer PTCAMCTRL CL01 is a dedicated hardware PTZ camera controller built for AV professionals who need consistent, low-latency control in live production and fixed-installation environments. The unit features a precision three-axis joystick for pan, tilt, and zoom, complemented by three infinite-rotation knobs for fine focus and brightness adjustments. Backlit buttons cover all major camera functions — camera selection, backlight compensation, autofocus, white balance, and PTZ speed — making operation reliable in dimly lit production spaces. A bright OLED display provides at-a-glance feedback on the active camera channel, communication protocol, and current settings without requiring a secondary monitor. The CL01 supports up to 256 preset positions across connected cameras, allowing operators to recall precise framing instantly during live events. Connection flexibility is a standout: rear-panel ports include DB-9 RS-232, 4-pin RS-422, and RJ45 Ethernet, with a 4-pin RS-485 terminal adapter included in the box. Seven dedicated camera shortcut buttons let operators switch between camera feeds with a single keypress, reducing reaction time during fast-paced productions. The controller is fully compatible with all AVer auto-tracking and PTZ cameras and extends equally well to third-party cameras that support industry-standard control protocols.
| Specification | Detail |
|---|---|
| Camera Channels | Up to 7 cameras |
| Supported Protocols | VISCA-over-IP, VISCA, Sony VISCA, Pelco-D, Pelco-P |
| Serial Interfaces | RS-232, RS-422, RS-485 |
| Network Interface | RJ45 Ethernet (VISCA-over-IP) |
| Control Ports | DB-9 RS-232, 4-pin RS-422, RJ45 |
| Preset Positions | Up to 256 |
| Display | OLED |
| Joystick Axes | 3-axis (Pan / Tilt / Zoom) |
| Adjustment Knobs | 3 infinite-rotation (Focus, Brightness) |
Key Features
- Multi-Protocol Support — Controls any camera using VISCA-over-IP, VISCA, Sony VISCA, Pelco-D, or Pelco-P, making it a truly universal PTZ camera controller.
- 7-Camera Simultaneous Control — Dedicated shortcut buttons let operators switch between up to seven camera channels without menu navigation.
- Multi-Interface Connectivity — RS-232, RS-422, RS-485, and IP connections ensure compatibility with legacy and modern PTZ camera installations alike.
- 3-Axis Precision Joystick — Smooth pan, tilt, and zoom control with variable speed sensitivity for both broad sweeps and fine framing adjustments.
- Up to 256 Preset Positions — Instantly recall camera positions for repeatable, professional framing during live productions.
- OLED Status Display — Clearly shows active channel, protocol mode, and configuration in any ambient lighting condition.
- Backlit Control Buttons — One-touch access to autofocus, white balance, backlight compensation, and PTZ speed without referencing a manual.
- Infinite-Rotation Knobs — Three dedicated knobs for nuanced focus and brightness control beyond what a joystick alone can deliver.
Typical Applications
- Boardroom
- Conference room
- House of worship
- Government space
- All-hands room
- Training room
- Broadcast studio
Technical Specifications
| Specification | Detail |
|---|---|
| Model | CL01 (PTCAMCTRL) |
| Camera Channels | 7 |
| PTZ Protocols | VISCA-over-IP, VISCA, Sony VISCA, Pelco-D, Pelco-P |
| Serial Communication | RS-232, RS-422, RS-485 |
| Network Protocol | VISCA-over-IP via RJ45 |
| Control Ports | DB-9 (RS-232), 4-pin connector (RS-422), RJ45 |
| Preset Positions | Up to 256 |
| Joystick | 3-axis (Pan, Tilt, Zoom) |
| Knobs | 3 × infinite-rotation |
| Display | OLED |
| Included Accessories | Power adapter, 4-pin RS-485 terminal adapter |
| Compatibility | All AVer PTZ and auto-tracking cameras; third-party VISCA/Pelco cameras |
Frequently Asked Questions
Q: Which PTZ camera protocols does the CL01 support?
A: The CL01 supports VISCA-over-IP, VISCA, Sony VISCA, Pelco-D, and Pelco-P. This covers the vast majority of professional PTZ cameras on the market, including all AVer PTZ models.
Q: How many cameras can I control at once?
A: The CL01 can manage up to seven cameras simultaneously. Each camera is assigned to a dedicated shortcut button on the controller front panel for instant channel switching.
Q: What serial communication standards does it support?
A: The controller supports RS-232 via a DB-9 port, RS-422 via a 4-pin connector, and RS-485 via the included terminal adapter, in addition to VISCA-over-IP through its RJ45 Ethernet port.
Q: Is the CL01 compatible with non-AVer cameras?
A: Yes. Any camera that communicates using VISCA, Sony VISCA, Pelco-D, Pelco-P, or VISCA-over-IP is compatible with the CL01, regardless of brand.
Q: How many preset positions does the controller support?
A: The CL01 supports up to 256 preset positions across connected cameras, enabling quick recall of precise camera framing during live events.
Q: Where can I purchase the AVer CL01?
A: The AVer CL01 Professional PTZ Camera Controller is available at Creation Networks, an authorized AVer reseller specializing in commercial AV solutions.
