AVer PTZ231 30X PTZ Camera 1080P 60fps with SDI, HDMI, USB Streaming

Product Overview

The AVer PTZ231 is a professional 30x optical zoom PTZ camera delivering Full HD 1080p video at 60fps with simultaneous output across 3G-SDI, HDMI, USB, and IP interfaces. Built on AVer's latest-generation platform, the PTZ231 upgrades the prior PTZ330W with improved performance, USB 3.0, a tally light, and dual IR sensors for reliable operation across demanding AV environments. Onboard AI functions include SmartShoot for automated content capture across preset zones, and SRT support ensures stable streaming over unpredictable networks.

The PTZ231 ships with a ceiling mount, includes the 5-year AVerCare warranty, and is NDI|HX3 capable for seamless integration into network-based production workflows.

Product Description

The AVer PTZ231 30X PTZ camera is built for AV integrators and broadcast engineers who need long-throw zoom, flexible signal routing, and AI-assisted content capture in a single camera body. The 30x optical zoom — backed by a 1/2.8" Full HD Exmor CMOS sensor — spans a DFOV of 69.2° at wide to 2.8° at full tele, making it practical for large auditoriums, houses of worship, and government chambers where camera placement is constrained.

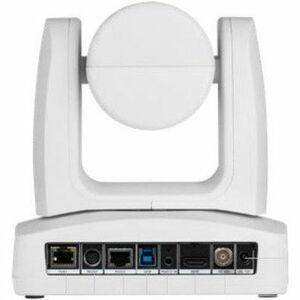

Simultaneous output is one of the PTZ231's defining capabilities: all four ports — 3G-SDI, HDMI, USB 3.0, and IP — are active at the same time. The 3G-SDI output supports broadcast-quality signal routing to production switchers and recording decks, while HDMI feeds local confidence monitors. The USB 3.0 Type-B port presents the camera as a UVC 1.1 device to any connected PC — no driver installation required — making it immediately compatible with Teams, Zoom, Webex, and other UC platforms. IP streaming supports H.264, H.265, and MJPEG, with configurable bitrates from 512 Kbps to 120 Mbps in VBR or CBR mode.

The SmartShoot AI function automatically captures content between preset areas, creating a multi-camera feel from a single PTZ unit. This is particularly useful for training rooms and conference rooms where the camera must cover both the presenter and a presentation screen without manual camera operation. Pan and tilt movement is precise to 0.1° per step, with preset recall speeds reaching 200°/sec, enabling fast, smooth transitions between shots.

Control is available via RS-232 (DIN8), RS-422 (RJ45), or IP, supporting VISCA, PELCO-D, PELCO-P, and CGI protocols. Up to 256 preset positions can be stored via RS-232, RS-422, or IP; 10 positions are accessible from the IR remote. PoE+ (IEEE 802.3at) powers the camera over a single Ethernet cable, eliminating local power requirements for ceiling and truss installations. A tally light on the camera body identifies the active camera in multi-camera productions.

Key Features

• 30x Optical Zoom — Covers large-venue distances from 69.2° wide-angle to 2.8° full tele, with a focal range of 4.5–135 mm.
• Simultaneous 4-Port Output — 3G-SDI, HDMI, USB 3.0, and IP outputs are all active at once for maximum signal flexibility.
• SmartShoot AI Function — Automatically captures content between preset zones, reducing the need for manual camera operation in multi-zone environments.
• NDI|HX3 Support — Enables low-latency 4K NDI output for integration with network AV production systems.
• SRT Streaming — Secure Reliable Transport protocol optimizes streaming performance over internet connections with variable quality.
• PoE+ Power — IEEE 802.3at PoE+ allows single-cable installation from a PoE+ switch, eliminating local power runs.
• 256 Preset Positions — Stores up to 256 camera positions via RS-232, RS-422, or IP for complex multi-angle productions.
• Tally Light — Illuminated indicator identifies the active camera in multi-camera switched productions.
• Precision Motion Control — Pan and tilt movement as fine as 0.1°/step and as fast as 200°/sec for accurate, rapid scene transitions.
• Dual IR Sensors — Two IR receivers ensure reliable remote control coverage regardless of camera orientation.
• 5-Year AVerCare Warranty — Includes 24-hour replacement service for continuous operation assurance.

Typical Applications

• House of Worship — Long 30x zoom reaches distant subjects in large sanctuaries; SmartShoot AI handles multi-zone coverage without a camera operator.
• Auditorium — SDI output integrates directly with broadcast-grade production switchers for live events and lecture capture.
• Government Space — Discrete PTZ form factor and VISCA/PELCO control compatibility suit council chambers and legislative recording systems.
• Boardroom — Simultaneous USB and IP output supports both local UC platforms and remote streaming from a single camera.
• Conference Room — UVC plug-and-play over USB 3.0 enables immediate compatibility with Teams, Zoom, and Webex without driver installation.
• Broadcast Studio — 3G-SDI output, tally light, and SRT transport align with professional broadcast production environments.

Technical Specifications
