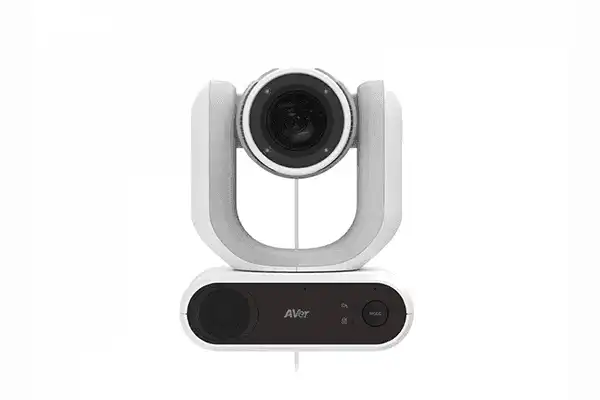

AVer MD330UI – Medical-Grade 30X PTZ Camera with Infrared and Embedded Audio

Product Overview

The AVer MD330UI is a medical-grade PTZ camera purpose-built for telemedicine, tele-ICU, and remote patient monitoring deployments where clinical accuracy and infection control matter as much as video quality. Certified to IEC 60601-1-2 electromagnetic compatibility standards, the MD330UI delivers 4K resolution with 30X optical zoom, a detachable handheld camera head, infrared illumination for night-view capability, and an embedded array microphone with AI noise reduction for clear audio in clinical environments. The white housing integrates visually with medical equipment and room finishes in patient care areas. HDMI, IP, and USB outputs support integration with clinical workstations, telemedicine carts, and hospital network infrastructure.

Product Description

The MD330UI is built around a 1/2.8" Exmor CMOS sensor with 8 megapixels effective resolution, delivering 4K/30fps output via IP and USB (UVC) and up to 1080p/60 via HDMI. The 30X optical zoom (f = 4.3mm–129mm, F1.6–F4.7) with 2X digital zoom provides a 72.9°–2.64° DFOV range, enabling detailed examination of wound sites, vital sign monitors, or patient positioning from the full room view down to close-up clinical detail. Minimum working distance is 0.01m at wide-end, allowing the detached handheld head to capture wound images and label text at extremely short working distances.

The detachable camera head is one of the MD330UI’s defining clinical features. By pulling the head from the PTZ unit, clinicians can manually reposition the camera to examine areas outside the fixed PTZ range — underneath patients, at bed level, or from specific lateral angles — and take one-button snapshots saved to the microSD card slot. The IR illumination module (specific to the MD330UI vs. the MD330U which uses LED fill light) enables night-view imaging without disturbing patients during low-light hours. Auto-focus speed is optimized for clinical use to quickly lock onto targets as the camera transitions between subjects or distances.

Audio is handled by an embedded array microphone with AI noise reduction and an integrated speakerphone, supporting clear telehealth consultations without external audio hardware. PTZ control is via VISCA over RS-232 or IP, with Pelco-D and Pelco-P also supported. The camera is ONVIF-compliant. The USB 3.0 interface presents the device as a UVC 1.1 and UAC 1.0 device, enabling plug-and-play connection to clinical workstations and telemedicine applications on Windows 7 or later. Up to 256 preset positions can be stored and recalled via RS-232 or IP. AVer PTZ Management software is included for networked camera management.

TAA and NDAA compliance make the MD330UI suitable for government healthcare facilities and VA hospitals where procurement regulations require domestic or allied-country manufacturing origin.

Key Features

• IEC 60601-1-2 Medical Certification — EMC-certified to medical grade standard, meeting the electrical safety requirements for use in patient care environments.
• 4K / 30fps Output — 8-megapixel 1/2.8" Exmor CMOS sensor delivers 4K resolution over IP and USB for high-fidelity clinical imaging of vital signs, wound sites, and patient monitoring displays.

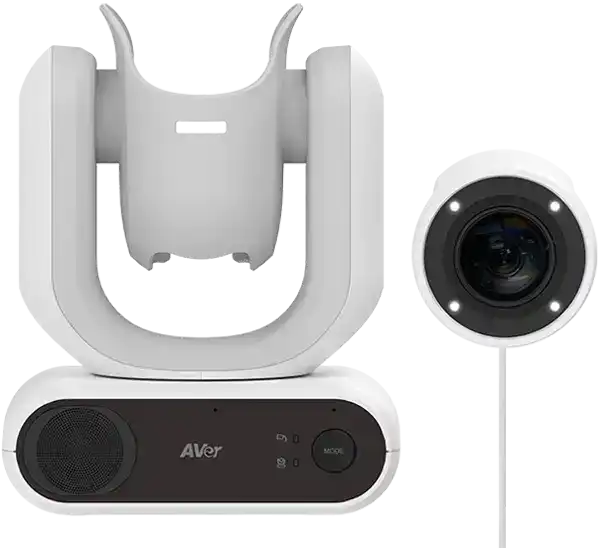

• Detachable Handheld Camera Head — Separates from the PTZ base in one second, converting to a handheld unit for close-up examination, one-button snapshot, and lateral-angle imaging outside the fixed PTZ range.
• Infrared Night View — IR illumination module enables imaging in low-light and no-light patient environments without activating visible light that would disturb resting patients.
• 30X Optical Zoom — f = 4.3mm to 129mm lens with minimum working distance of 1cm at wide-end for detailed close-up clinical imaging.
• Embedded Array Microphone with AI Noise Reduction — Built-in speakerphone supports telehealth consultations without separate audio hardware, with AI-based noise filtering for clinical environments.
• USB 3.0 UVC / UAC Output — Plug-and-play compatibility with Windows 7 or later telemedicine workstations as a standard UVC 1.1 camera and UAC 1.0 audio device.
• HDMI, IP, and USB Video Outputs — Flexible output options for clinical workstations, network video management, and direct display connections.
• TAA and NDAA Compliant — Meets procurement compliance requirements for federal healthcare, VA, and DoD medical facility installations.
• 256 Preset Positions — Store and recall up to 256 camera positions via RS-232 or IP for repeatable framing of examination zones and room views.
• AVerCare 3-Year Warranty — Three-year camera coverage with AVerCare support for mission-critical clinical deployments.

Typical Applications

• Conference room (telehealth)
• Multi-purpose room
• Training room
• Government space
