AVer IFI5OPS4I OPS Computer Module for CP Series Signage Monitors

Product Overview

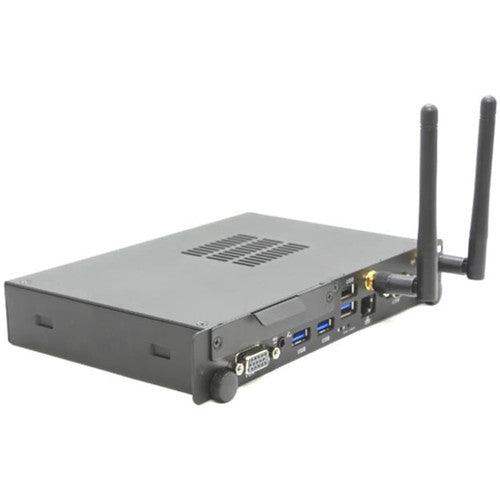

The AVer IFI5OPS4I is an OPS (Open Pluggable Specification) computer module designed to slide directly into the OPS slot of AVer CP Series interactive flat panels and digital signage monitors. It converts the display into a self-contained digital signage player or interactive computing station without requiring an external PC or media player. The module is based on an Intel Core i5-6200U processor and is configured without a pre-installed operating system, giving integrators flexibility to deploy Windows or their preferred platform. It is available from Creation Networks for use with compatible AVer CP Series displays.

Product Description

The OPS form factor was developed to allow displays and monitors to accept a standardized slot-in computing module, eliminating the need for a separate PC mounted behind or beside the screen. The AVer IFI5OPS4I follows this standard, plugging directly into the OPS bay of compatible AVer CP Series displays including the CP654I, CP754I, and CP864I. Once installed, the display draws on the module's processor and storage as its computing source, creating a clean single-unit installation with no external cables between a PC and the screen.

The IFI5OPS4I is powered by an Intel Core i5-6200U dual-core processor running at 2.30 GHz, paired with 8 GB of DDR3 SDRAM and a 128 GB solid-state drive. Graphics are handled by Intel HD Graphics 520, which is adequate for full-HD digital signage playback, interactive application use, and standard productivity workloads. The module includes wireless LAN for network connectivity, plus five USB ports (two USB 2.0 and three USB 3.0) and an RJ-45 Gigabit Ethernet port.

Because the IFI5OPS4I ships without an operating system, it can be configured with Windows 10 Pro, Windows 11, or a Linux-based digital signage platform depending on the deployment requirements. This also means integrators can apply their organization's standard OS image rather than working around a pre-installed configuration. The module is suited for digital signage, wayfinding displays, interactive kiosks, and classroom technology deployments where a dedicated slot-in PC is preferred over an all-in-one display.

Key Features

• OPS Slot-In Form Factor — Installs directly into compatible AVer CP Series displays, eliminating external cabling between a PC and the screen.
• Intel Core i5-6200U Processor — Dual-core, 2.30 GHz processor suited for digital signage playback, interactive applications, and standard productivity use.
• 8 GB DDR3 SDRAM — Sufficient memory for running digital signage software, web-based applications, and standard office workloads.
• 128 GB Solid-State Drive — Fast SSD storage with no moving parts, appropriate for continuous-operation signage environments.
• Intel HD Graphics 520 — Handles full-HD video playback and standard graphics workloads for signage and interactive display applications.
• 5 USB Ports — Two USB 2.0 and three USB 3.0 ports for peripherals, touch controllers, and external storage.
• Wireless LAN and Gigabit Ethernet — Dual connectivity options for network-dependent digital signage and content management platforms.
• No OS Included — Ships without an operating system, giving integrators full control over OS selection and imaging.

Typical Applications

• Digital signage deployments using AVer CP Series displays as self-contained signage players
• Wayfinding kiosks in corporate campuses, hospitals, and educational institutions
• Interactive flat panel installations in classrooms requiring a slot-in PC module
• Conference room displays converted to standalone computing stations
• Retail and hospitality digital signage with centrally managed content delivery
