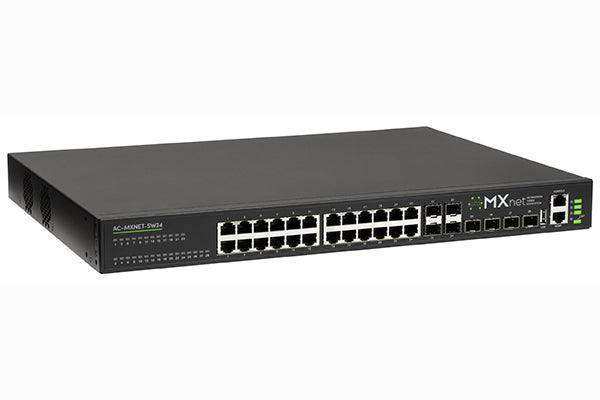

AVPro Edge AC-MXNET-SW24 MXNet 24 Port Network Switch

Product Overview

The AVPro Edge AC-MXNET-SW24 is a 24-port PoE+ managed network switch engineered specifically for AV-over-IP distribution within the MXNet ecosystem. Unlike a general-purpose IT switch configured for multicast, the AC-MXNET-SW24 runs a custom AVPro-developed Network Operating System (NOS) with Intelligent AV Processing (IAVP) built in — factory pre-configured and optimized for AV multicast traffic out of the box. Integrators deploying AV-over-IP matrix systems for commercial AV distribution over IP networks will find sub-2-second source switching and sub-40ms latency without the tuning, IGMP snooping configuration, or network administration typically required on general-purpose managed switches. The AC-MXNET-SW24 is the center of the MXNet Ecosystem and pairs directly with MXNet encoders, decoders, and control processors to form a complete, scalable AV distribution platform.

Product Description

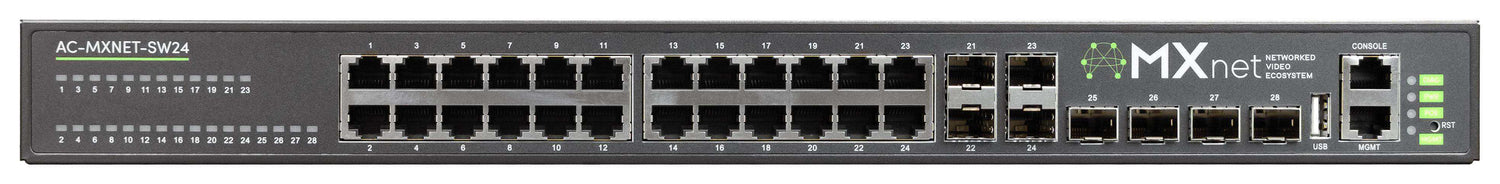

The AC-MXNET-SW24 provides 24 copper PoE+ ports with 370W total power budget, four 1Gb SFP fiber ports for longer infrastructure runs, and four 10Gb SFP+ ports for stacking multiple switches in larger deployments. The custom NOS re-engineers every module that affects multicast processing — including IGMP, Jumbo Frames, Spanning Tree, and multicast filtering — resulting in CPU utilization that stays below 40% even when the switch is fully populated with MXNet devices.

IAVP (Intelligent AV Processing) is AVPro's proprietary technology layer within the NOS that optimizes multicast routing specifically for video and audio streams. The result is switching times of less than 2 seconds with zero black frames between sources, and average audio/video onset latency of approximately 35ms — well below the 40ms threshold considered invisible to human perception. In point-to-point configurations the latency drops to 33ms or less (under 1 frame); in non-downmixing encoder configurations it drops to 1ms or less.

Because the switch arrives factory pre-configured for AV multicast, integrators do not need to configure VLAN, IGMP snooping groups, or QoS policies manually before installation. The MXNet MENTOR setup and control tool manages the full ecosystem configuration — including encoder-to-decoder routing, video wall setups, resolution scaling, and EDID management — from a single interface. Cold boot time from power-up to full functionality including PoE device power-up is 1 minute 45 seconds.

Key Features

• 24 Copper PoE+ Ports — 370W total power budget powers MXNet encoders and decoders directly over the same category cable carrying the AV signal, eliminating separate power supplies at each endpoint.
• AVPro-Developed NOS — Custom Network Operating System built specifically for AV multicast; not a reconfigured commodity switch firmware.
• IAVP (Intelligent AV Processing) — Proprietary multicast routing optimization for video and audio streams; CPU load stays below 40% at full port population.
• Factory Pre-Configured for AV Multicast — IGMP, Jumbo Frames, Spanning Tree, and multicast filtering are pre-tuned; the switch is ready for MXNet deployment without manual network configuration.
• Sub-2-Second Switching — Source-to-source switching completes in under 2 seconds with zero black frames between sources.
• Sub-40ms Latency — Average audio/video onset latency of approximately 35ms; point-to-point latency under 33ms (less than 1 frame).
• Four 1Gb SFP Fiber Ports — Extends the MXNet network over longer runs between buildings or floors where copper category cable is impractical.
• Four 10Gb SFP+ Stacking Ports — Links multiple AC-MXNET-SW24 or AC-MXNET-SW48 switches for deployments exceeding 24 endpoints.
• Whisper-Quiet Operation — Designed for installation in occupied spaces without disruptive fan noise.
• MXNet Ecosystem Integration — Works natively with MXNet encoders, decoders, control processors, video walls, and the MENTOR control platform.

Typical Applications

• Corporate campuses requiring scalable AV-over-IP distribution to conference rooms, lobbies, and common areas from a centralized rack
• Hotels and hospitality venues distributing content to guest rooms, restaurants, bars, and event spaces over existing network infrastructure
• University and K-12 facilities deploying AV-over-IP for classroom displays, digital signage, and campus-wide content distribution
• Sports arenas, stadiums, and entertainment venues with high endpoint counts requiring fast source switching and low latency
• Broadcast and production facilities building AV-over-IP routing infrastructure for studio and control room signal distribution
• House of worship facilities with multiple display zones across sanctuary, lobby, overflow rooms, and outdoor spaces
• Retail chains requiring centrally managed content distribution to multiple stores or departments over IP infrastructure

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the AC-MXNET-SW24 work with non-AVPro AV-over-IP systems?

The AC-MXNET-SW24 is designed and optimized for the MXNet ecosystem. While the underlying network switching hardware is capable of general network use, the AVPro NOS and IAVP processing are optimized for MXNet encoders and decoders. Using this switch with other AV-over-IP platforms may not produce the same switching speed and latency results, and is not a supported configuration by AVPro Edge.

Do I need to configure IGMP snooping or multicast settings before deployment?

No. The AC-MXNET-SW24 ships factory pre-configured for AV multicast. IGMP, Jumbo Frames, Spanning Tree, and multicast filtering are already tuned. Integrators connect MXNet endpoints and use the MENTOR tool to configure routing, video walls, and EDID — no network configuration is required beyond assigning an IP address if DHCP is not available.

How many endpoints can one AC-MXNET-SW24 support?

The switch has 24 PoE+ copper ports, each of which can connect one MXNet encoder or decoder. For deployments exceeding 24 endpoints, multiple switches can be stacked using the four 10Gb SFP+ ports. The 48-port version (AC-MXNET-SW48) is also available for single-switch deployments up to 48 endpoints.

What is the PoE power budget and is it enough for a fully populated switch?

The total PoE budget is 370W across all 24 ports. MXNet encoders and decoders draw significantly less than 15.4W each, so 370W is typically sufficient for a fully populated switch with all 24 ports in use. Consult AVPro Edge device specifications for exact power draw figures when planning deployments near the budget limit.

Can the SFP ports be used to connect to an existing campus network?

The four 1Gb SFP fiber ports can be used to connect the MXNet switch to building backbone infrastructure for longer runs between equipment rooms or buildings. The four 10Gb SFP+ ports are primarily for switch-to-switch stacking. Any upstream connections should be handled carefully to ensure AV multicast traffic is properly isolated or managed on the broader network.

How does the MXNet ecosystem handle video wall configurations?

Video wall layout, source assignment, and bezel correction are configured through the MXNet MENTOR software platform, which communicates with decoders through the AC-MXNET-SW24. The switch handles the multicast stream routing while MENTOR manages the display-level configuration, making video wall changes a software operation rather than a physical recabling task.
