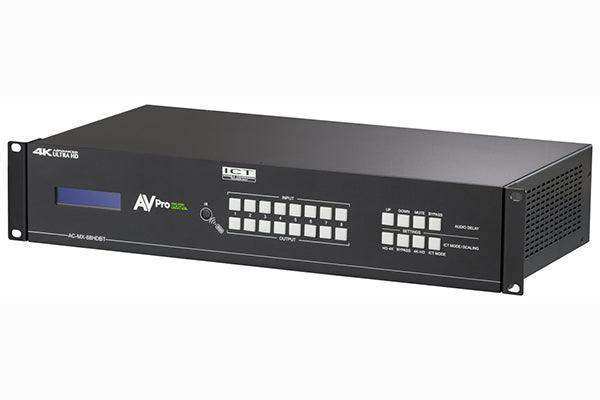

AVPro Edge AC-MX-88HDBT 18Gbps 4K60 4:4:4, 8x8 Matrix with mirrored HDMI & HDBaseT outputs

Product Overview

The AVPro Edge AC-MX-88HDBT is an 8x8 HDBaseT matrix switcher that simultaneously outputs both an HDMI and an HDBaseT signal from every one of its eight output blocks — active at the same time, without splitting or switching between them. Designed for commercial AV installations where sources need to reach both local displays via HDMI and remote displays over Cat cable, this 18Gbps 4K60 4:4:4 matrix delivers true signal integrity on both output types from a single rack-mount chassis. The HDBaseT outputs use AVPro Edge's ICT (Invisible Compression Technology) to carry 18Gbps-class signals over standard Cat5e/6 infrastructure without the visible quality trade-offs of traditional HDBaseT compression. For conference rooms, training centers, and multi-zone commercial spaces requiring simultaneous local and remote display feeds from a single matrix, the AC-MX-88HDBT eliminates the need for separate signal splitters or secondary distribution amplifiers.

Product Description

Each of the AC-MX-88HDBT's eight output blocks delivers two active outputs simultaneously: a direct HDMI 2.0(a/b) port and an HDBaseT port. Both outputs carry the same routed source signal at 4K60 4:4:4, meaning a source connected to input 3 and routed to output 5 will appear on both the HDMI display locally connected to output block 5 and on any HDBaseT-compatible receiver at the end of the Cat cable connected to that same output block — no additional hardware required.

On the HDBaseT side, ICT (Invisible Compression Technology) carries the full 18Gbps signal class over standard Cat cable to compatible HDBaseT receivers, extending 4K HDR content to remote displays without requiring fiber or HDMI extenders. Signal equalization and amplification on the HDMI inputs compensate for long source cable runs, making the matrix practical in installations where source equipment is not co-located with the matrix rack.

The matrix handles 18Gbps uncompressed bandwidth on its HDMI paths and HDCP 2.3 on both HDMI and HDBaseT outputs, ensuring full compatibility with protected content sources and displays. Full HDR support — including HDR10 and 12-bit deep color — is maintained across both output types, so HDR-capable displays connected via either HDMI or HDBaseT receive the correct HDR metadata without additional processing.

Source routing is fully flexible: any of the 8 inputs can be routed to any of the 8 output blocks independently. The rack-mountable chassis fits into standard equipment racks, and control is available via multiple interfaces to support integration with third-party control systems used in commercial AV environments.

Key Features

• Simultaneous Mirrored HDMI + HDBaseT Outputs — Every output block provides both an active HDMI port and an active HDBaseT port carrying the same source signal at the same time — no switching, splitting, or additional hardware required.
• 8x8 Any-to-Any Source Routing — Any of the 8 HDMI inputs can be independently routed to any of the 8 output blocks, with full flexibility to assign the same source to multiple outputs simultaneously.
• 18Gbps Uncompressed HDMI Bandwidth — Full 18Gbps on all HDMI inputs and HDMI outputs supports true 4K60 4:4:4 at up to 12-bit deep color without signal degradation.
• ICT HDBaseT Outputs — Invisible Compression Technology carries 18Gbps-class video quality over Cat5e/6 to compatible HDBaseT receivers, extending 4K HDR content to remote displays.
• HDCP 2.3 on All Outputs — End-to-end HDCP 2.3 compliance on both HDMI and HDBaseT outputs ensures protected content passes without handshake failures.
• Full HDR Support — HDR10 and 12-bit deep color pass-through maintained across both HDMI and HDBaseT output paths.
• HDMI Input Signal Equalization — Built-in equalization and amplification on HDMI inputs compensates for long source cable runs in installations where sources are not co-located with the matrix.
• 1U Rack-Mountable Chassis — Standard 1U rack-mount form factor integrates into equipment racks alongside other commercial AV gear.
• Multiple Control Interfaces — Supports third-party control system integration for use in commercial AV environments with Crestron, Control4, and similar platforms.

Typical Applications

• Conference rooms requiring both local HDMI displays and remote overflow screens via HDBaseT
• Training centers and classrooms with instructor-station displays plus remote satellite monitors
• Corporate boardrooms with in-room displays and lobby or corridor overflow feeds
• Houses of worship distributing content to sanctuary screens (HDMI) and foyer/nursery displays (HDBaseT)
• Hotel meeting rooms with AV distribution to both in-room and adjacent breakout spaces
• Higher education lecture halls with front-of-room and rear-of-room displays on separate cable types
• Healthcare facilities distributing content to bedside HDMI displays and remote nursing station monitors
• Retail and digital signage networks combining local and remote display zones from a single source matrix

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Are both the HDMI and HDBaseT outputs on each output block active at the same time?

Yes. Both the HDMI port and the HDBaseT port on each output block carry the routed source signal simultaneously. You do not need to select between them or add a splitter — a display connected via HDMI and a display connected via HDBaseT receiver to the same output block will both show the same source at the same time.

What HDBaseT receivers are compatible with the ICT outputs?

The HDBaseT outputs use ICT (Invisible Compression Technology), which requires compatible ICT-capable HDBaseT receivers to decode the signal. AVPro Edge offers compatible ICT receivers designed to pair with this matrix. Standard HDBaseT receivers not supporting ICT will not produce a picture from these outputs. Contact Creation Networks to confirm compatible receiver models for your project.

What Cat cable category is required for the HDBaseT outputs?

Cat5e or Cat6 is supported for the HDBaseT runs. Maximum extension distance depends on cable quality and the specific receiver used. For 4K HDR at full resolution, Cat6 is recommended, and cable runs should be verified against the receiver's rated distance specifications.

Does the matrix support Crestron or Control4 control?

The AC-MX-88HDBT supports RS-232, IR, and LAN control, which are compatible with Crestron, Control4, RTI, and other third-party control systems via IP or serial drivers. Contact Creation Networks or AVPro Edge for available driver files for your specific control platform.

Can I use this matrix to feed both a local presentation display and a remote overflow screen in a conference room?

Yes. This is one of the primary deployment scenarios for the AC-MX-88HDBT. Connect the local in-room display directly to the HDMI output of an output block, and run a Cat cable from the HDBaseT output of the same block to an ICT-compatible HDBaseT receiver at the remote display location. Both displays receive the same source with no additional hardware.

What is the warranty on the AC-MX-88HDBT?

AVPro Edge products are backed by a 3-year manufacturer warranty. Creation Networks provides pre-sales technical support and post-sale warranty coordination. Contact us before purchase to confirm the right configuration for your installation.
