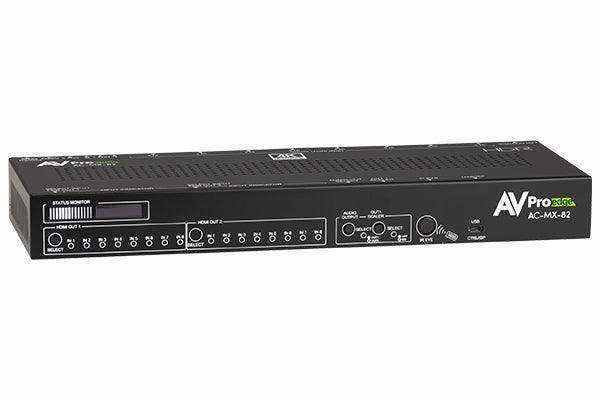

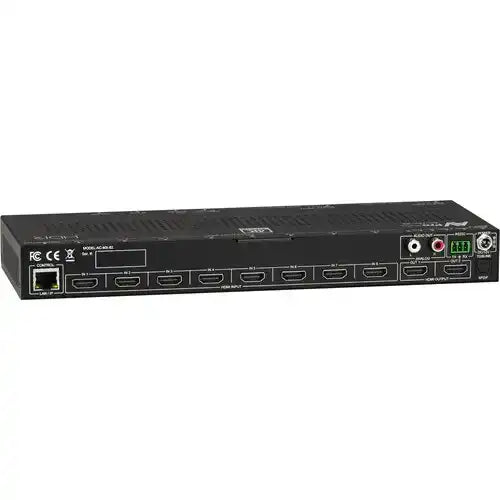

AVPro Edge AC-MX-82RM 18Gbps 4K60 4:4:4, 8x2 Matrix & Auto Switch/AVR Bypass

Product Overview

The AVPro Edge AC-MX-82RM is a rack-mounted 8-input, 2-output HDMI matrix switcher supporting 18Gbps bandwidth and 4K60 4:4:4 with HDR. It is built for home theater and commercial AV installations where up to eight HDMI sources must be routed to two displays or downstream devices, with the option to include an AV receiver (AVR) in the signal path without compatibility issues. The auto-switching function detects active sources and selects inputs automatically, reducing the need for manual switching in rooms with predictable source usage patterns. At a 1U rack-mount form factor, it integrates cleanly into equipment racks alongside receivers, amplifiers, and other AV gear.

Product Description

Matrix switchers at 18Gbps are a specific category: most 8x2 products on the market cap bandwidth at 10.2Gbps (HDMI 1.4 / 2.0 without 4:4:4 at 60Hz), which introduces chroma subsampling at 4K60. The AC-MX-82RM carries the full 18Gbps HDMI 2.0b specification, preserving 4:4:4 color at 4K60Hz for applications where color accuracy matters — color-critical displays, medical imaging monitors, and high-end home theaters where the difference between 4:4:4 and 4:2:0 is visible.

The AVR bypass mode is a distinguishing feature for home theater integrators. When an AV receiver is placed between the matrix output and a display, standard EDID and HDCP handshake issues are common. The AC-MX-82RM handles this by providing a bypass mode that allows the signal to route correctly through the AVR without triggering compatibility problems. Auto-switching prioritizes the most recently active or last-connected input, making it effective in rooms where users plug in laptops or rotate between source devices regularly.

Key Features

• 18Gbps Full Bandwidth — Supports 4K60 4:4:4 with HDR without bandwidth reduction, preserving full color depth at maximum resolution.
• 8x2 Matrix Switching — Routes any of 8 HDMI inputs to either or both of 2 HDMI outputs independently.
• AVR Bypass Mode — Resolves EDID and HDCP handshake issues when an AV receiver is in the signal path between the matrix and displays.
• Auto-Switching — Automatically selects the active or most recently connected input, reducing manual switching in dynamic-use environments.
• HDR Support — Compatible with HDR10, Dolby Vision, and HLG formats across all inputs and outputs.
• HDMI 2.0b and HDCP 2.2 — Ensures compatibility with current sources including 4K streaming players, UHD Blu-ray, and gaming consoles.
• Full EDID Management — Programmable EDID per input and output prevents compatibility issues with displays or sources that report non-standard EDID data.
• 1U Rack Mount — Designed for standard 19-inch equipment racks; integrates alongside AVRs, amplifiers, and other rack gear.
• Multiple Control Options — Accepts control via front panel, IR, RS-232, LAN, and web-based interface for integration with control systems.

Typical Applications

• High-end home theaters with up to 8 sources (UHD Blu-ray, streaming, gaming consoles, cable boxes) routed to a projector and a secondary display
• Residential AV installations where an AV receiver must remain in the signal path and AVR bypass is required for reliable operation
• Commercial conference centers routing multiple source inputs to dual display outputs in large presentation rooms
• Showrooms and retail environments with multiple demonstration sources and displays requiring independent routing
• Control room environments requiring reliable 4K60 4:4:4 signal routing between sources and monitors

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What does AVR bypass mode do, and when is it needed?

AVR bypass mode allows the matrix output signal to route correctly through an AV receiver to a display without triggering EDID or HDCP handshake failures. It is needed when an AVR is placed between the AC-MX-82RM output and the display, which is common in home theater installations.

Does the 18Gbps bandwidth matter for 4K content?

Yes, for 4K60 4:4:4 specifically. Most HDMI switches at this size class operate at 10.2Gbps, which forces 4:2:0 chroma subsampling at 4K60Hz. The AC-MX-82RM's 18Gbps bandwidth preserves full 4:4:4 color at 4K60Hz.

Can both outputs show different sources simultaneously?

Yes. The AC-MX-82RM is a matrix switcher, meaning each of the two outputs can be independently routed to any of the eight inputs at the same time.

How does auto-switching determine which input to select?

Auto-switching monitors input activity and prioritizes the most recently connected or active source. It is configurable, allowing the integrator to set priority rules based on the installation's needs.

Is the AC-MX-82RM compatible with 8K sources?

No. The AC-MX-82RM is rated to HDMI 2.0b at 18Gbps, which supports up to 4K60 4:4:4. 8K signals require HDMI 2.1 at 48Gbps and are not supported by this product.
