AVPro Edge AC-MX-1616 18Gbps True 4K60 4:4:4 16x16 Matrix (Ultra Low Profile)

Product Overview

The AVPro Edge AC-MX-1616 is a commercial-grade 16x16 HDMI matrix switcher engineered for large-scale AV installations requiring uncompressed 4K60 4:4:4 signal distribution across 16 independent outputs. Designed as a 1U rack-mount ultra-low-profile chassis, this 18Gbps 16x16 matrix switcher delivers the highest density available in its class — making it the preferred choice for integrators building enterprise boardrooms, broadcast facilities, control rooms, and multi-display command centers. With sub-3-second average switching times on uncompressed 4K HDR signals, the AC-MX-1616 sets the industry benchmark for 18Gbps 16x16 matrix performance. Native support for HDCP 2.3, Dolby Vision, HDR10+, and HLG ensures full compatibility with current and next-generation HDR source formats.

Product Description

The AC-MX-1616 routes any of its 16 HDMI 2.0(a/b) inputs to any combination of 16 HDMI outputs simultaneously, carrying the full 18Gbps uncompressed bandwidth required for true 4K60 4:4:4 at up to 12-bit deep color. Its ultra-low-profile 1U chassis packs 16 inputs and 16 outputs into a single rack unit — a density advantage that directly reduces rack space and infrastructure cost in large deployments.

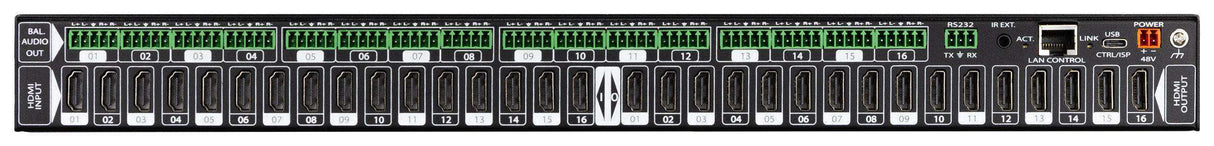

Audio de-embedding is handled natively: all 16 inputs support 2-channel analog de-embedding via 5-pin terminal outputs, with three independent routing modes — bind to input, bind to output, or fully independent audio matrix — giving integrators precise control over audio zones without external de-embedders. The 29 onboard EDID profiles include dedicated HDR EDIDs managed through AVPro's AEUI (Advanced EDID User Interface), which is accessible via mobile browser for fast on-site configuration.

Each of the 16 outputs includes a built-in 4K test pattern generator for rapid signal verification during commissioning — eliminating the need for external test equipment. Control is available through Web GUI (WebOS), IR, RS-232, and LAN, with native drivers for Crestron, Control4, RTI, and ELAN. The front panel OLED display provides immediate system status and configuration access without requiring a connected laptop.

Note: The AC-MX-1616 does not perform audio downmixing (5.1 to 2-channel). For downmixing requirements, pair with the AVPro Edge AC-AVDM-AUHD or an AXION series processor.

Key Features

• 16x16 Uncompressed 4K60 4:4:4 Routing — Full 18Gbps bandwidth on all 16 inputs and 16 outputs with no compression or signal degradation.

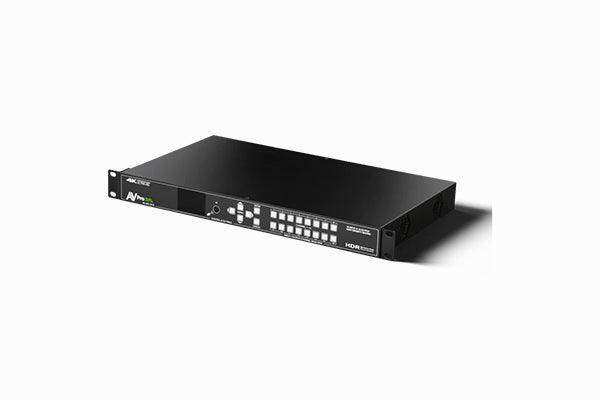

• Ultra-Low Profile 1U Chassis — Maximum input/output density in a single rack unit, reducing rack space requirements in large multi-display installations.
• Sub-3-Second 4K HDR Switching — Industry-leading average switching time under 3 seconds for uncompressed 4K HDR signals, minimizing display black screens during source changes.
• Full HDR Format Support — Native pass-through for HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK HDR standards at up to 12-bit deep color.
• HDCP 2.3 Compliant — End-to-end HDCP 2.3 encryption ensures compatibility with the latest protected content sources and displays.
• 29 Onboard EDIDs with AEUI — Includes dedicated HDR EDID profiles managed through AVPro's mobile-accessible EDID interface for fast on-site configuration.
• 16 Analog Audio De-Embed Outputs — Independent 2-channel analog audio extraction on every input, with three flexible routing modes for zone audio control.
• Per-Output 4K Test Pattern Generator — Built-in test patterns on each of the 16 outputs for rapid signal verification during installation and troubleshooting.

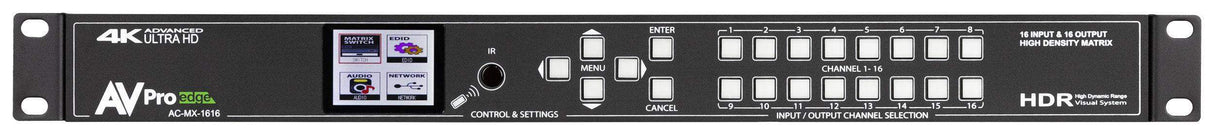

• Front Panel OLED Display — Provides real-time system status and on-device configuration without requiring a connected control system or laptop.
• Native Control System Drivers — Certified drivers for Crestron, Control4, RTI, and ELAN, plus Web GUI, IR, RS-232, and LAN control interfaces.
• Comprehensive Accessory Package — Ships with 48V PSU, IR remote and emitter, 3-pin terminal block, 16x 5-pin audio cables, and rack mounting brackets.

Typical Applications

• Enterprise boardrooms and executive conference centers
• Broadcast studios and production control rooms
• Command and operations centers with multi-display video walls
• University lecture halls and large auditoriums
• Houses of worship with distributed display systems
• Hotel ballrooms and event spaces with AV infrastructure
• Simulation and training facilities
• Digital signage distribution hubs with 16+ display zones

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the AC-MX-1616 support HDBaseT outputs?

No — the AC-MX-1616 is an HDMI-only matrix. All 16 inputs and 16 outputs are HDMI 2.0(a/b). For HDBaseT extension, pair outputs with compatible HDBaseT transmitters, or consider the AVPro Edge AC-MX-88HDBT which includes native HDBaseT output ports.

Can I use this matrix with Crestron or Control4?

Yes. AVPro Edge provides certified, tested drivers for Crestron (SIMPL and Crestron Home), Control4, RTI, and ELAN. Control is also available via RS-232, LAN, and IR without a driver requirement.

What does the AEUI mobile interface allow me to do on-site?

AEUI (Advanced EDID User Interface) is a browser-based tool accessible from a mobile device on the same network. It allows technicians to select and assign EDIDs to any input, including the 29 onboard profiles and HDR-specific EDIDs, without a laptop or software installation.

Does this matrix downmix 5.1 surround audio to 2-channel?

No. The AC-MX-1616 de-embeds 2-channel LPCM analog audio only. It does not perform surround-to-stereo downmixing. For downmixing capability, add the AVPro Edge AC-AVDM-AUHD or an AXION series audio processor to the signal chain.

How do I verify signal integrity during installation without a display?

Each of the 16 outputs includes a built-in 4K test pattern generator accessible from the front panel or Web GUI. This allows technicians to confirm cable runs, display connectivity, and EDID negotiation before sources are connected.

What is the warranty on the AC-MX-1616?

AVPro Edge products are backed by a 3-year manufacturer warranty. Creation Networks provides pre-sales technical support and post-sale warranty coordination directly with AVPro Edge.

Can multiple AC-MX-1616 units be combined for a larger matrix?

The AC-MX-1616 is a standalone 16x16 matrix and does not natively support cascading into a larger unified matrix. For deployments requiring more than 16 outputs, a signal distribution or AV-over-IP approach such as AVPro's MXNET platform is recommended.
