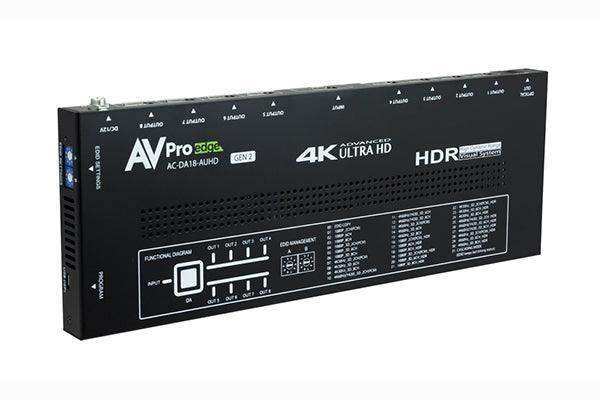

AVPro Edge AC-DA18-AUHD-GEN2 Full 18Gbps Distribution Amplifier with advanced EDID management

Product Overview

The AVPro Edge AC-DA18-AUHD-GEN2 is a 1-in, 8-out HDMI distribution amplifier delivering full 18Gbps bandwidth to all eight outputs simultaneously, making it one of the highest-performing DA units in its class. The GEN2 revision brings refinements to signal integrity and EDID management, with dual rotary controls offering 32 EDID combination options — including a purpose-built cascade mode for multi-hop deployments. At $979, it serves as the backbone of large-format video distribution systems in commercial, hospitality, educational, and residential environments where maintaining 4K60 4:4:4 and full HDR integrity across multiple displays is non-negotiable. Its ultra-low-profile chassis and optional rack mounting brackets give integrators installation flexibility in tight equipment spaces.

Product Description

The AC-DA18-AUHD-GEN2 accepts a single HDMI 2.0 source and distributes it to eight HDMI outputs at full 18Gbps without signal degradation. Where lesser distribution amplifiers reduce bandwidth or HDR metadata to simplify distribution, this unit maintains the complete signal — 4K60 4:4:4 chroma, HDR10, 12-bit color depth, Dolby Vision, and HLG — from input to all eight outputs. The GEN2 designation reflects AVPro Edge's updated internal circuitry for improved signal stability at full bandwidth, particularly over longer cable runs where equalization and re-clocking matter most. A dedicated cascade mode allows multiple AC-DA18-AUHD-GEN2 units to be chained together, extending output counts and transmission distances without introducing latency artifacts or signal degradation at each hop. EDID management is handled via two physical rotary switches, providing 32 EDID combination settings including auto, display-read, and cascade presets — eliminating the need for software tools during commissioning. The ultra-low-profile chassis allows installation in shallow spaces, equipment closets, or directly behind displays where rack space is unavailable.

Key Features

• Full 18Gbps bandwidth delivered to all 8 HDMI outputs simultaneously
• 4K60 4:4:4 support with complete HDR integrity: HDR10, 12-bit, Dolby Vision, HLG
• GEN2 updated circuitry for improved signal stability at maximum bandwidth
• Dual rotary EDID controls providing 32 EDID combination settings without software
• EDID modes include auto, display-read, cascade, and 16 selectable presets
• Built-in cascade mode enables multi-hop daisy-chaining for large output counts
• Ultra-low-profile chassis fits in shallow spaces, equipment closets, and behind displays
• Rack-mountable with included mounting brackets and screws
• HDCP 2.2 and earlier versions supported
• Included locking 12V power supply (100-240V input) for global use

Typical Applications

• Bar and restaurant digital signage distribution to multiple screens from a single source
• Hotel and hospitality in-room and common-area HDMI distribution
• Corporate lobby and common area display networks
• University lecture halls distributing a single presenter source to multiple student-facing displays
• Broadcast and production monitor walls requiring identical high-fidelity feeds
• High-end residential home theaters and whole-home video distribution
• Cascaded multi-zone systems where more than 8 outputs are needed

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Can the AC-DA18-AUHD-GEN2 be cascaded with other units to get more than 8 outputs?

Yes. The unit includes a dedicated cascade mode that optimizes the EDID and signal settings for daisy-chaining. You can connect the output of one AC-DA18-AUHD-GEN2 into the input of another without introducing signal problems common in non-cascade-designed units.

Does every output receive the same full-bandwidth signal?

Yes. All 8 outputs receive an identical, re-clocked, equalized HDMI signal at full 18Gbps. There is no bandwidth sharing or degradation between outputs.

How do I set the EDID without a computer or software?

The dual rotary switches on the unit allow you to select from 32 EDID combinations physically, without connecting to any software or control interface. This simplifies commissioning in locations where a laptop may not be readily accessible.

Will this work with my 4K projector that has older HDCP requirements?

Yes. The AC-DA18-AUHD-GEN2 supports HDCP 2.2 and all earlier versions, ensuring compatibility with a wide range of displays and projectors regardless of their HDCP revision.
