AVPro Edge AC-CXWP-USBC-T HDMI or USB-C Wall Plate Transmitter via HDBaseT

Product Overview

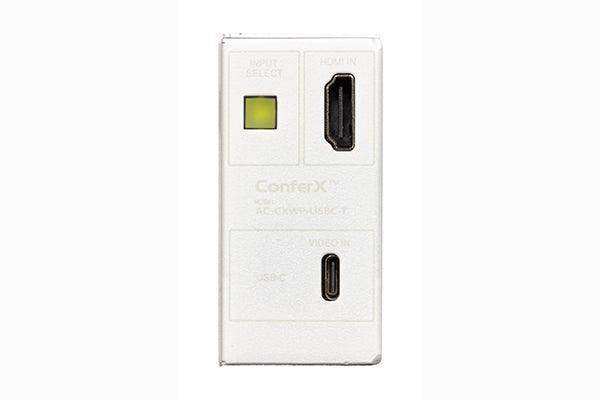

The AVPro Edge AC-CXWP-USBC-T is a single-gang HDBaseT wall plate transmitter from the ConferX product line, designed to give presenters in conference rooms, classrooms, and huddle spaces a clean, tool-free connection point for any laptop or mobile device. It accepts both HDMI 2.0 and USB-C (USB 3.1 Gen 2) video inputs and transmits the signal over a single CAT6A cable to a compatible HDBaseT receiver, reaching up to 100 meters at 1080p and 70 meters at 4K. Power is supplied via Power over Ethernet from the receiver end, eliminating the need for a local power outlet or wall transformer at the wall plate. Built to military-grade standards and backed by a 10-year warranty, it is one of the most durable and installer-friendly wall plate transmitters available for BYOD meeting environments.

Product Description

BYOD conference rooms require a connection point that works reliably with any source a presenter brings — whether a laptop with HDMI, a newer laptop or tablet with USB-C, or a desktop workstation. The AC-CXWP-USBC-T handles both input types on a single gang plate, with plug-and-play auto-sensing that activates the connected input automatically without requiring the presenter or room occupant to press any button or navigate a menu. The unit fits any standard US single-gang mud ring or Decora-style wall box, making it a direct replacement for conventional wall plates in retrofit and new construction projects.

Signal transmission over the HDBaseT link carries HDMI video, audio, control (CEC), and power on a single CAT6A run. When paired with the AC-EX70-444-RNE-P receiver or another PoE-capable HDBaseT endpoint, no local power supply is needed at the wall plate itself — power is drawn from the far end through the same cable used for signal. The straight-in rear RJ45 jack design reduces installation depth requirements and simplifies pulling cable through tight wall cavities. ESD protection circuitry on all inputs and outputs protects both the wall plate and connected devices against electrostatic events up to 7KV.

Key Features

• Dual-Input: HDMI 2.0 and USB-C — Accepts HDMI 2.0a/b and USB-C (USB 3.1 Gen 2) video sources on a single wall plate, serving both legacy and modern laptops.
• Plug-and-Play Auto-Sensing — Automatically detects and activates the connected input; no user interaction or button press required.
• HDBaseT Transmission over CAT6A — Transmits video, audio, CEC, and power on a single CAT6A run to a compatible HDBaseT receiver.
• 100m at 1080p / 70m at 4K — Extends 1080p up to 330 feet and 4K up to 230 feet over standard CAT6A infrastructure.
• Power over Ethernet (PoE) — Powered by the receiver end through the HDBaseT cable; no local power outlet or wall transformer needed.

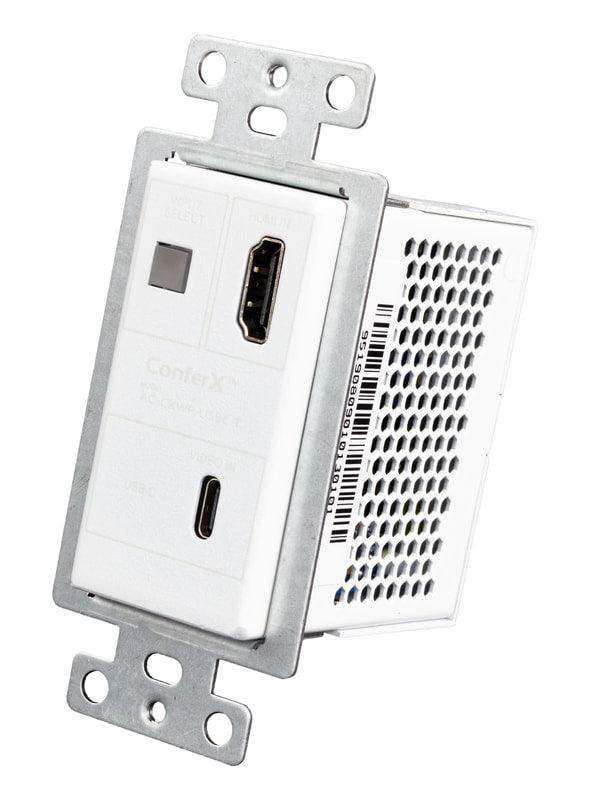

• Single-Gang Decora Form Factor — Fits any standard US single-gang mud ring or Decora wall box for clean, low-profile installations.
• 4K60 4:2:0 and HDR 4:2:2 12-Bit Support — Carries 4K at 60Hz and HDR 12-bit signals for high-quality presentation and display environments.
• HDCP 2.2 Compliant — Supports current copy protection for protected media playback from compliant sources.

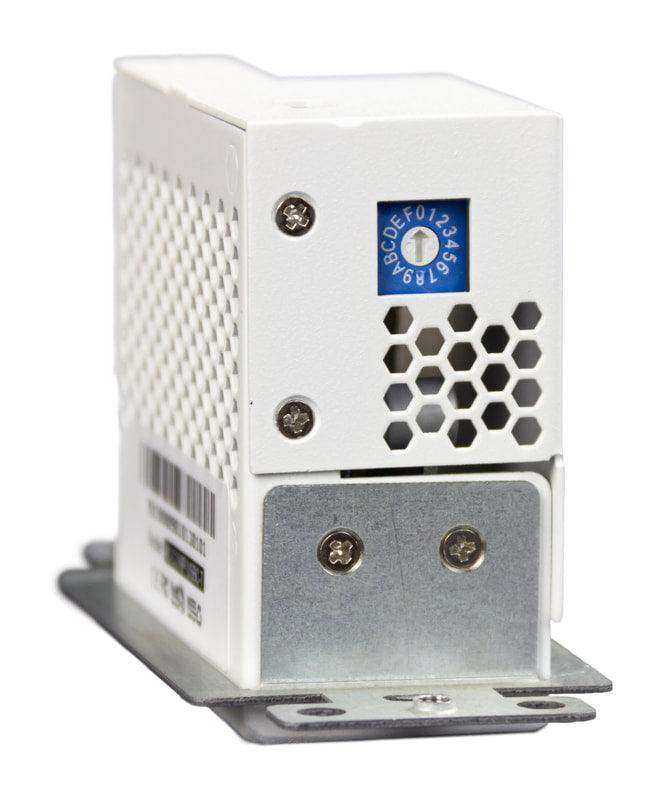

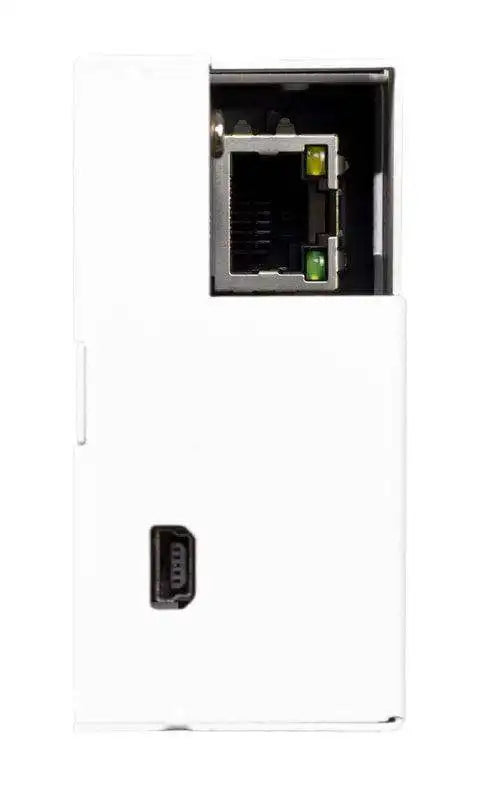

• Straight-In Rear RJ45 Jack — Rear connector design reduces depth and simplifies cable pull-through in standard wall boxes.
• ESD Protection to 7KV — All input and output ports include electrostatic discharge protection to safeguard connected devices.
• Military-Grade Construction — Low-heat, rugged chassis with a 10-year manufacturer warranty.
• CEC Pass-Through — Consumer Electronics Control signals pass through the HDBaseT link for display power management automation.

Typical Applications

• Corporate conference rooms and boardrooms requiring BYOD HDMI and USB-C connection points
• University and K-12 classroom installations where students and instructors connect a variety of laptop types
• Huddle rooms and collaboration spaces with a minimalist wall plate presentation solution
• Courtroom and legal presentation environments needing reliable, low-maintenance presentation connectivity
• Healthcare facility conference and consultation rooms requiring clean, hygienic, fixed-install input points
• Hotel meeting rooms and training centers supporting diverse presenter device types

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the USB-C input work with all USB-C cables?
No. USB-C video output requires that the source device supports USB video alt mode (DisplayPort Alt Mode), and the cable must be rated for USB 3.1 Gen 2 or higher. Cables labeled only for charging or USB 2.0 data will not carry video. Always use cables that explicitly state USB-C 3.1 compatibility.

Which HDBaseT receiver is recommended for use with the AC-CXWP-USBC-T?
AVPro Edge recommends pairing this transmitter with the AC-EX70-444-RNE-P receiver for full-featured operation including PoE, 4K support, and the maximum 70-meter 4K extension distance. Other PoE-capable HDBaseT receivers are also compatible for 1080p deployments.

Does the wall plate require any programming or configuration after installation?
No. The AC-CXWP-USBC-T is a plug-and-play device. Input auto-sensing activates the connected source automatically. No installer or user configuration is required for standard operation.

Can this wall plate be used with an HDBaseT matrix switcher instead of a dedicated receiver?
Yes. The AC-CXWP-USBC-T is compatible with HDBaseT-capable matrix switchers and projectors with native HDBaseT inputs. In configurations without PoE from the far end, optional local power can be used to power the wall plate.
